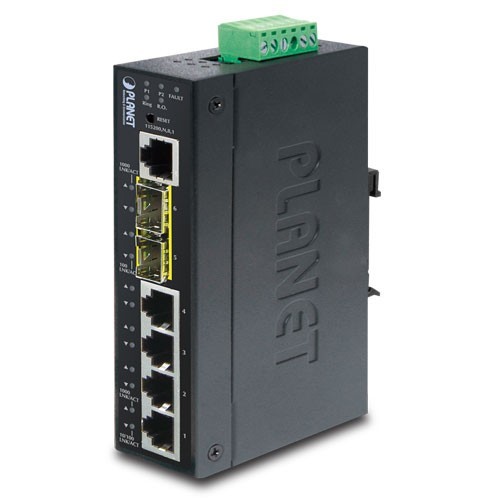

4 ports 10/100/1000Mbit RJ45 + 2 ports 100/1000Mbit SFP slot, Managed switch, 12 - 48VDC og 24VAC
3.553,00 kr
Ekskl. moms
Fast Ring, Redundant Ring for kritisk netværk
IEEE 1588 Time Protocol, supporterer MEF service og synkront Ethernet
Supporterer MODBUS TCP protocol
Supporterer IGMP Snooping
4 x 10/100/1000Mbps RJ45 porte
2 x 100/1000Mbit SFP porte
12 - 48VDC, redundant input
24VAC forsyningsspænding er også mulig
IP30 metalkabinet med DIN-beslag
Temperaturområde fra -40 til +75°C
Antal
På vej ind
Stil et spørgsmål
close
Specifications
| Dimensioner | 32 x 87x 135 mm |
|---|---|
| Driftstemperatur | -40 - 75° |
| Forsyning | Dual 12~48V DC 24V AC |
| Materiale | IP30 metal case |
| Montering | DIN rail kit and wall-mount kit |
| Porte | 4 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports |
| Slot | 2 1000BASE-SX/LX/BX SFP interfaces (Port-5 to Port-6) Compatible with 100BASE-FX SFP |
| Stik | Removable 6-pin terminal block for power input Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2 |
| VLAN | 802.1Q tagged based VLAN, up to 255 VLAN groups Q-in-Q tunneling Private VLAN Edge (PVE) MAC-based VLAN Protocol-based VLAN Voice VLAN MVR (Multicast VLAN Registration) Up to 255 VLAN groups, out of 4094 VLAN IDs |
Layer 2 Features
- Broadcast/Multicast/Unicast
- IEEE 802.1Q tagged VLAN
- Up to 255 VLANs groups, out of 4094 VLAN IDs- Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)
- Private VLAN Edge (PVE)
- Protocol-based VLAN- MAC-based VLAN- Voice VLAN
- Supports Spanning Tree Protocol
- IEEE 802.1D Spanning Tree Protocol (STP)
- IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
- IEEE 802.1s Multiple Spanning Tree Protocol (MSTP), spanning tree by VLAN
- BPDU Guard
Layer 3 IP Routing Features
- Supports maximum 32 static routes and route summarization
Quality of Service
- IEEE 802.1p CoS
- IP TOS/DSCP/IP precedence
- IP TCP/UDP port number
- Supports QoS and In/Out bandwidth control on each port
- Traffic-policing policies on the switch port
- DSCP remarking
Multicast
- Supports IGMP snooping v1, v2 and v3
- Supports MLD snooping v1 and v2
Security
- IEEE 802.1X Port-based/MAC-based network access authentication
- Built-in RADIUS client to cooperate with the RADIUS servers
- Source MAC/IP address binding
- DHCP snooping to filter distrusted DHCP messages
- Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
- IP Source Guard prevents IP spoofing attacks
- IP address access management to prevent unauthorized intruder
Management
- Console/Telnet Command Line Interface
- Web switch management
- SNMP v1 and v2c switch management
- SSH/SSL and SNMP v3 secure acces
