Intel® Core™ 6th-Gen
Supporterer i3, i5, i7 - CPU ikke inkluderet i prisen
Integrated Intel® HD 530/510 controller
Up to 16GB DDR4-2133 - RAM ikke inkluderet i prisen
3xGbit (1x Intel I219-LM, 2xIntel i210-IT)
4 x USB 3.0
2 x USB 2.0
2 x RS-232 2x RS 232/ 422/ 485
VGA DVI
8~35Vdc
Ekskl. OS og strømforsyning
-25°C ~ 70°C (kræver speciel SSD og RAM)
DIN-rail mount kit (optional)
120W AC/DC Power Adapter (optional)
8-CH isolated DI and 8-CH isolated DO (optional)
| CPU | Supports Intel 6th-Gen Core |
|---|---|
| Chipset | Intel® H110 platform controller hub |
| Chok/Vibration | Operating, 50 Grms, half-sine 11 ms duration / Operating, 5 Grms, 5-500 Hz, 3 Axes |

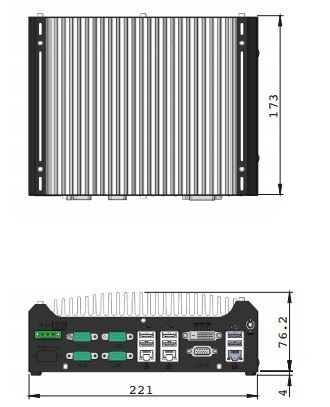

| Dimensioner | 221 x 173 x 76 mm |
| Driftstemperatur | -25°C ~ 70°C */** |
| Ethernet | 1xGbit Intel I219-LM, 2 x Gbit Intel I210-IT |
| Forsyning | 8~35Vdc |
| Hukommelse | MAX. 16GB DDR4-2133 (single SO-DIMM) not included |
| Input | 1x 3-pin pluggable terminal block for 8~35 VDC power input |
| Montering | Standard wall mount |
| Msata | 1x full-size mSATA socket |
| USB | 2x USB 2.0 & 4x USB 3.0 |
| Video | DVI & VGA |
| Vægt | 2.8 kg (incl. CPU, memory and HDD) |
Kan leveres komplet med CPU, RAM og SSD/HDD. Kan leveres med anden konfiguration, kontakt salg.
Spændingsforsyning købes særskildt
