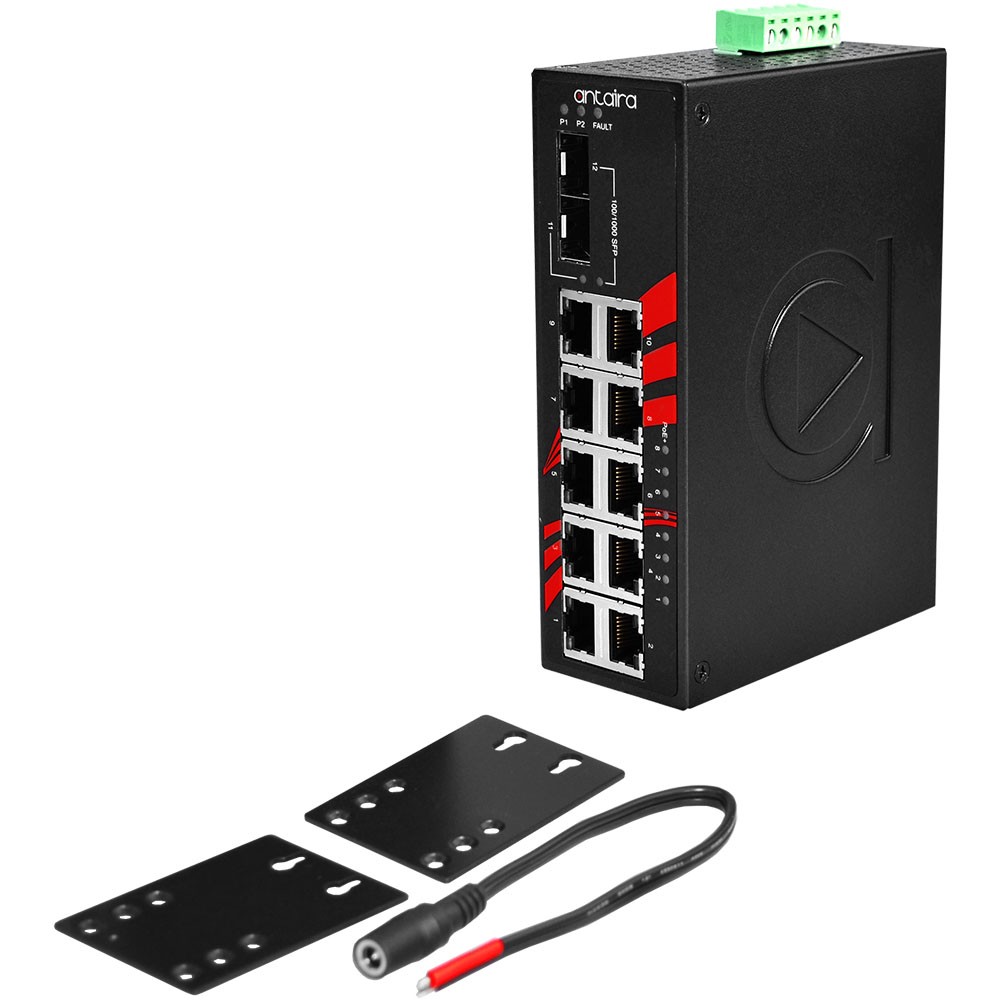

12-Port industrial PoE+ Gigabit unmanaged switch med udvidet temperatur -40° to 75°C

16 x 10/100Mbps RJ45
2 x 10/100/1000Mbit RJ45 (combi)
2 x 100/1000Mbps SFP slot (combi)
7.2 Gbps Back-Plane (Switching Fabric)
Ethernet Ring Redundancy (Recovery Time <20ms)
IEEE 802.1w Rapid Spanning Tree & IEEE 802.1d Spanning Tree Protocol
IEEE 802.1x RADIUS
IEEE 802.1p Class or Service for Traffic Classification & Prioritization
QoS (Quality of Service)
Port Based VLAN & IEEE 802.1Q Tag VLAN
IGMP med Query Mode for Multi-Media applikationer
Port Mirroring for Traffic Monitoring
IP Address Security Management
IP30 robust aluminum kabinet
DIN-Rail eller vægmontering

Gigabit WDM medieonverter til single core fiber med SC stik
WDM-B - TX 1550nm / RX 1310nm
(skal kommunikere med WDM-A i anden ende af fiberen!)
IEEE 802.3/u/ab 10/100/1000BaseT
IEEE 802.3z 1000BaseX
Jumbo Frame (9K bytes)
Store-and-Forward Switching Mechanism
Auto-Crossover for MDI/MDIX in TP Port
Auto-Negotiation in TP Port
Flow Control
Link Alarm
Auto & Force Mode Configuration
Dimensioner:71 x 94 x 26 mm
5VDC/1.5A strømforsyning medfølger
Tilkøb: DIN beslag

1000Mbit mediekonverter med PoE+ til udstyr

PoE er PSE (Power Sourcing Equipment)

PoE+ op til 30 Watt up på porten

1 x RJ45 10/100/1000Mbit med PoE+ (PSE)

1 x SFP slot til 1000Mbit Single Mode eller Multi Mode

802.3, 802.3u, 802.3ab, 802.3z, 802.3at, 802.3af

IEEE 802.3x Full-Duplex Flow-Control

Auto MDI/MDI-X function

Dimensioner: 94 x 70 x 26 mm

Driftstemperatur: 0°C to +50°C

Spændingsforsyning: 52~56VDC / 0,6A

Strømforsyning medfølger.

24 x 10/100/1000Tx RJ45 (30W/port) IEEE 802.3at PoE+
2 x Gigabit combo (2 x RJ45, 2 x FTP)
Auto MDI/MDI-X Function
Store-and-Forward Switching Architecture
8K MAC Address Table
9.6Kbytes Jumbo Frame
Surge Protection: 2,000 VDC
ESD Protection: 6,000 VDC
Strømforsyning: 48~55VDC
Indbygget relæ Output til Power Failure
1U 19" Rackmount design
Driftstemperatur STD: 40° to 75° C

1000Mbit Multi Mode Mediekonverter til RJ45
1 x RJ45 10/100/1000BaseT
1 x 1000BaseSX/LX med SC stik Multi Mode
Back-Pressure in Half-Duplex
Auto MDI/MDI-X function
Store-and-Forward mechanism
Op til 220m / 550m
Dimensioner: 97 x 70 x 26 mm
Driftstemperatur: 0 - +50°C
Strømforsyning: 5VDC/2A medfølger

8 port 10/100/1000Mbps switch og 2 port 10Gbps SFP+ fiber slots
Auto MDI/MDI-X Function
Store-and-Forward Switching Architecture
16K MAC Address Table
9,216 bytes Jumbo Frame Support
Surge Protection: 2,000 VDC Support
ESD Protection: 6,000 VDC Support
Redundant Power Input Design: 12~48VDC
1 relæ output til Power Failure Warning
IP30 Rugged Metal Case Design
DIN-Rail and Wall Mount Support
Temperaturområde: -40° to 60° C

8 ports 10/100/1000Mbps Fast Ethernet switch + 2 100/1000Mbps SFP slot
Auto MDI/MDI-X Function
Store-and-Forward Switching Architecture
20Gbps Back-Plane (Switching Fabric)
8K MAC Address Table
9.6Kbytes Jumbo Frame Support
Surge Protection: 3,000 VDC
ESD Protection: 6,000 VDC
Redundant Power Input – 12~48VDC
1 Relay Output til Port Break Alarm
IP30 Aluminum kabinet
DIN-Rail og Wall Mount
Temperaturområde: -40° til 75°C

8 x 10/100/1000Base-T(X) RJ45
PoE (P.S.E.) Porte
IEEE 802.3at
Op til 30 Watt pr. Port
9.6Kbytes Jumbo Frame
Forsyningsspænding, dual wide range 12 ~ 36VDC
Auto-Negotiation & Auto-MDI/MDI-X
Store-and-Forward Transmission
Flow Control
IP-30 Housing Design
DIN-Skinne og væg montering
UL Class I, Division 2 Certified
