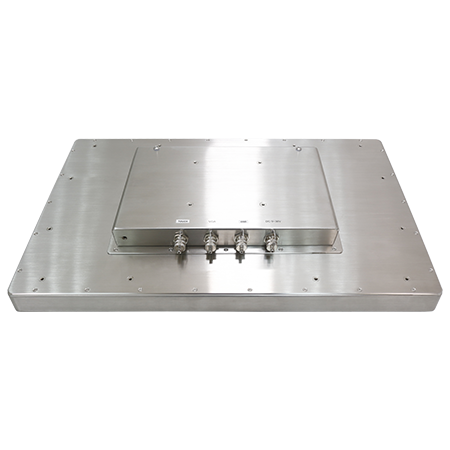

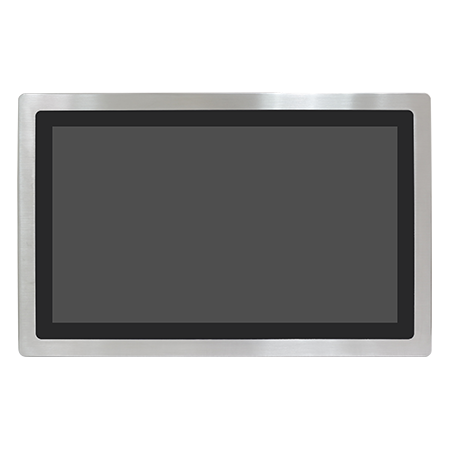

21,5" skærm, ATEx Zone2/22 Godkendt, Projekteret Kapacitiv Touch, VGA, USB
Ring +45 56 66 20 20 for pris
Ekskl. moms
21,5” TFT-LCD
1920 x 1080 Opløsning
Projekteret kapacitiv touch via USB
VGA videoudgang
Total IP66-klasse med M12 vandtæt stik
Strømindgang 9-36VDC
Panelmontering & VESA-montering
316 Stainless Steel
ATEX/IECEx Zone2, Zone22 og C1D2/C2D2/C3 certificeret
Antal
På vej ind
Stil et spørgsmål
close
Specifications
| Dimensioner | 571 x 362 x 75.1 mm |
|---|---|
| Driftstemperatur | -20~60°C |
| Forsyning | DC 9~36V, 1 x M12 3-pin for DC power connector with waterproof cover and chain |
| Lysstyrke | ca. 300 cd/m² |
| Opløsning | 1920 x 1080 |

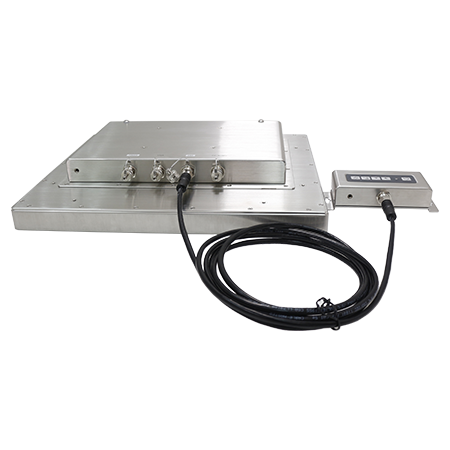

| OSD | 1 x M12 8-pin for OSD Cable & External OSD BOX with waterproof cover and chain |
| Touch | Projected capacitive touch |
| USB | 1 x M12 8-pin for 2 x USB 2.0 for Touch Control with waterproof cover and chain |
| Video | 1 x M12 12-pin for VGA with waterproof cover and chain |
| Vægt | 12.3 kg |
| Certification | ATEx / IECEx Zone2 / Zone22 |
Certification:
CE / FCC Class A
ATEx / IECEx Zone2 Ex ec ic IIC T4 Gc
ATEx / IECEx Zone22 Ex tc IIIC T135°C Dc
Class I, Division2, Group A,B,C,D,T4
Class II, Division2, Group F,G, T135°C
Class III
ANSI/ISA 12.12-01-2013
CSA Std., C22 No213-1987
