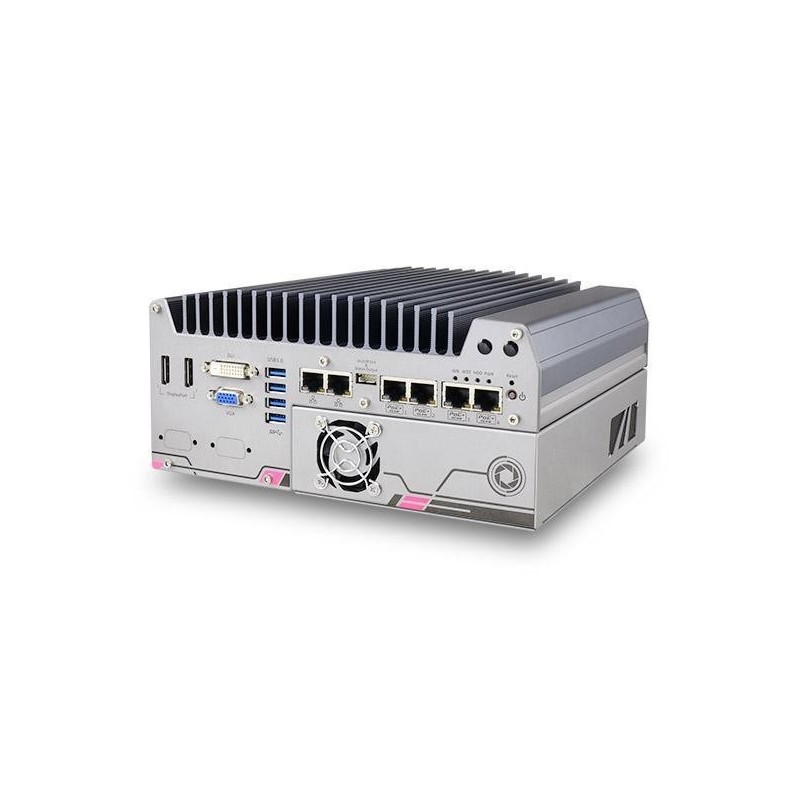

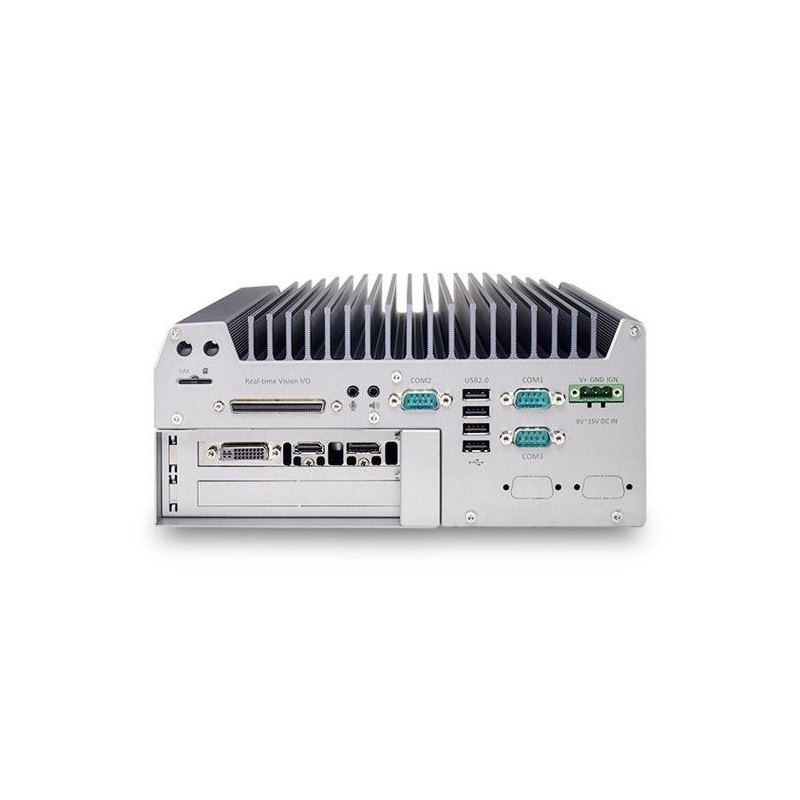

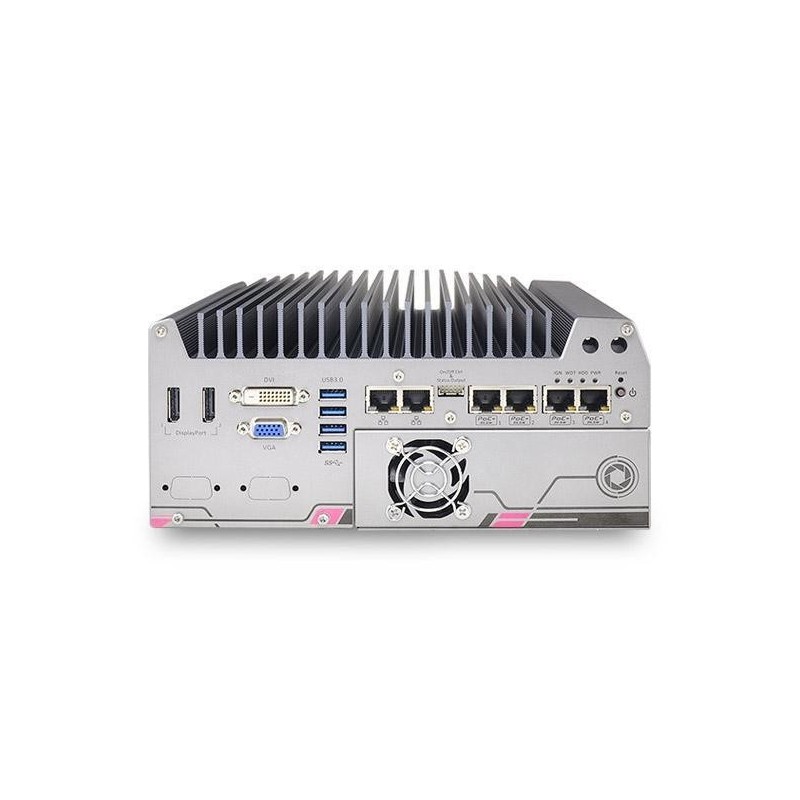

Industriel PC til vision control PC 4x Gbit POE, 2 x Gbit
Ring +45 56 66 20 20 for pris
Ekskl. moms
Intel® 6th Gen Core™ i7/i5 65W/35W CPU
Max. 32 GB DDR4
1 x PCIex expansion
Integrated vision-specific I/O
4-CH CC/CV lighting controller
4-CH camera trigger outputs
1-CH quadrature encoder input
8-CH isolated DI and 8-CH isolated DO
Patented MCU-based, real-time I/O control by DTIO V2 and NuMCU
Built-in camera interfaces
4-CH IEEE 802.3at Gigabit PoE+ ports
4-CH USB 3.0 ports
Supports NVIDIA GTX 1050 for GPU-accelerated MV
Barebone
Antal
På vej ind
Stil et spørgsmål
close
Specifications
| CPU | Supports 6th-Gen Intel® Core™ LGA1151 CPU 65W / 35W TDP |
|---|---|
| Chipset | Intel® Q170 Platform Controller Hub |
| Approval | CE/FCC Class A, according to EN 55022, EN55032 & EN 55024 |
| Chok/Vibration | Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64) Shock Operating, 50 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27) |
| Dimensioner | 240 mm (W) x 225 mm (D) x 111 mm (H) |
| Driftstemperatur | Operating Temperature with i7-6700TE, i5-6500TE (35W TDP) -25°C ~ 60°C ** with i7-6700, i5-6500 (65W TDP) -25°C ~ 60°C */ ** (configured as 35W CPU mode) -25°C ~ 50°C */ ** (configured as 65W CPU mode) |
| Ethernet | Ethernet Port 6x Gigabit Ethernet ports by Intel® I219 and 5x I210 PoE+ IEEE 802.3at PoE+ PSE on GigE Port 3 ~ Port 6, 80 W total power budget |
| Grafik | Integrated Intel® HD Graphics 530 |
| Hukommelse | 2x SODIMM socket, max. 32 GB DDR4-2133 SDRAM |
| Kamera | COTS CameraLink and CoaXPress camera interface card |
| Lyd | 1x mic-in and 1x speaker-out |
| Montering | Wall-mount by mounting bracket or optional rack-mount kit |
| mPCIe | 1x internal mini PCI Express socket with front-accessible SIM socket 1x internal mini PCI Express socket |
| Porte | 2x software-programmable RS-232/422/485 port (COM1 & COM3) 1x RS-232 port (COM2) |
| SIM kort | Internal socket mSATA |
| Storage | 2x Internal SATA port for 2.5” HDD/SSD installation, supporting RAID 0/1 mSATA 1x full-size mSATA port (mux with mini-PCIe) |
| Udgange | 1x stacked VGA + DVI-D connector 2x DisplayPort connectors, supporting 4K2K resolution |

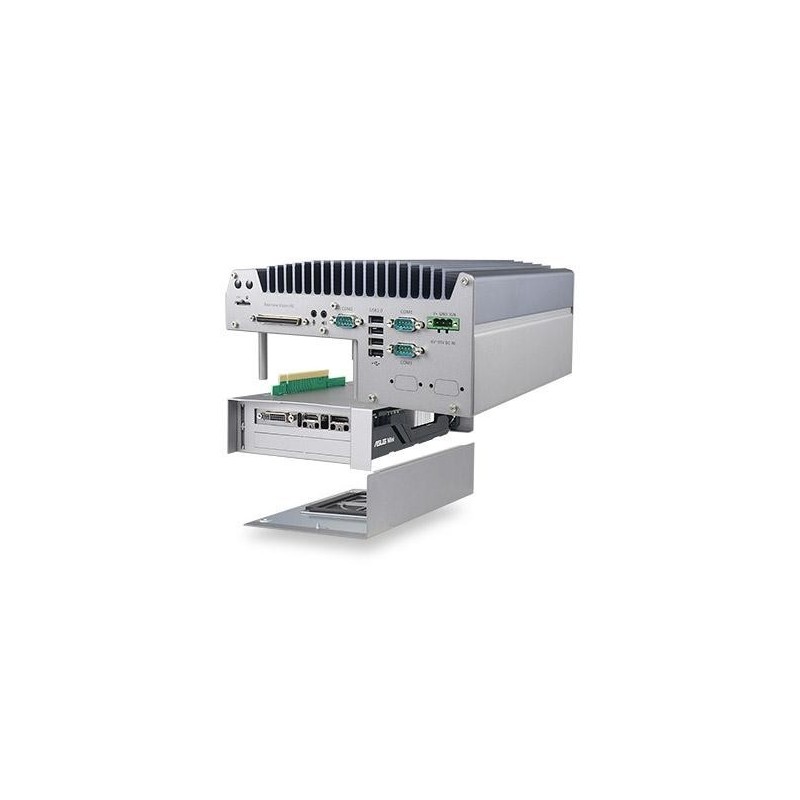

| Udvidelser | PCI/PCI Express 1x PCIe x16 slot @ Gen3, 8-lanes PCIe signals in Cassette, supporting |
| USB | USB 3.0: 4x USB 3.0 ports via native XHCI controller, 1000 MB/s total bandwidth USB 2.0: 4x USB 2.0 ports |
| Vægt | 4.5Kg |
Kundespecificeret Maskin vision PC, kan leveres klar med OS, SSD, RAM og CPU installeret.
Professionel og robust PC. Sidste nye teknologi med real time vision I/O kontrol.
Andre modeller og konfigurationer kan tilbydes.
Kontakt vores salgsafdeling for en professionel industriel PC løsning.
IO Spec.
LED Lighting Controller 4-CH LED lighting controller output ,
supporting
- Constant current mode
(up to 2 A per channel, 100 kHz dimming
control)
- Constant voltage mode
(24 VDC, 100 kHz dimming control)
Camera Trigger 4-CH camera trigger output
(12 VDC output)
Encoder Input 1-CH quadrature encoder input (A/B/Z)
Isolated Digital Output 4-CH isolated high-speed digital output
(<2 us transient time, for strobe/PWM)
4-CH isolated high-current digital output
(up to 500 mA rated current)
Isolated Digital Input 8-CH isolated high-speed digital input
(<2 us transient time)
Real-time I/O Control Patented MCU-based real-time I/O control
with DTIO V2 or OpenMCU firmware
