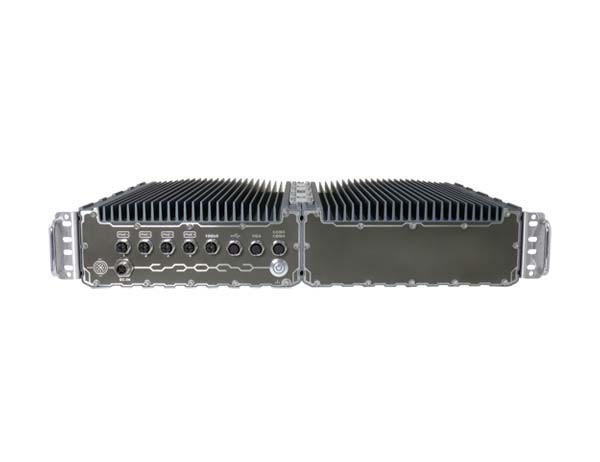

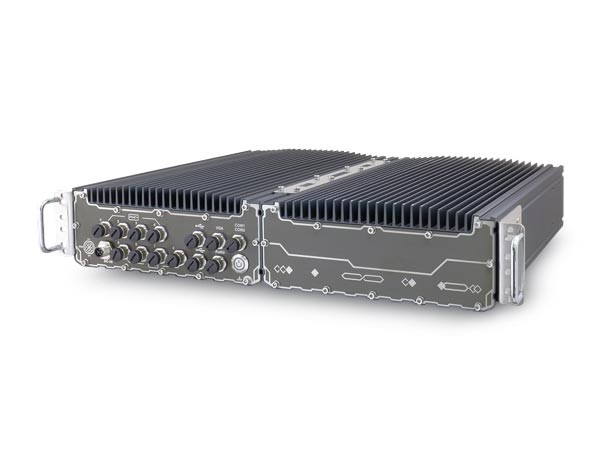

IP67 vandtæt GPU-computer, der understøtter NVIDIA® RTX A2000/ Tesla T4/ Quadro P2200 med alle M12-stik
Ring +45 56 66 20 20 for pris
Ekskl. moms
IP67 blæserløs GPU-computer understøtter Tesla Ta / Quadro P2200
IP67 blæserløs GPU-computer med M12-stik
IP67 vandtæt GPU-computer med NVIDIA® RTX A2000/ Tesla T4/ Quadro P2200
Intel® Xeon® E eller 9./8. Gen Core™ i7/i5/i3 CPU
Patenteret vandtæt 2U 19" chassis til stativ eller vægmontering*
Garanteret ikke-strygende GPU-ydeevne op til 62°C omgivende
Op til otte 802.3at Gigabit PoE+-porte via M12 X-kodede stik
VGA, USB 2.0 og COM-porte via M12 A-kodede stik
8~48V bredområde DC-indgang med indbygget tændingsstrømkontrol
MIL-STD-810G og EN 50155 certificeret
*ROC patent nr. I697759, *CN patentansøgning
Antal
På vej ind
Stil et spørgsmål
close
Specifications
| CPU | Supporting Intel® Xeon® E and 9th/ 8th-Gen CPU (LGA1151 socket) - Xeon E 2278GE (8C/16T) / 2278GEL (8C/16T) / 2176G (6C/12T) - i7-9700E, i7-9700TE, i7-8700, i7-8700T - i5-9500E, i5-9500TE, i5-8500, i5-8500T - i3-9100E, i3-9100TE, i3-8100, i3-8100T |
|---|---|
| Chipset | Intel® C246 platform controller hub |
| Approval | EN-50155, CE/FCC Class A, according to EN 55032 & EN 55035 |
| Chok/Vibration | Vibration MIL-STD-810G, Method 514.7, Category 4 Shock MIL-STD-810G, Method 516.7, Procedure I |
| Dimensioner | 440mm (W) x 310mm (D) x 86.5mm (H) (excl. rack-mount bracket) |
| Driftstemperatur | with 35W CPU -25°C ~ 70°C **** with >= 65W CPU -25°C ~ 70°C ***/ **** (configured as 35W TDP mode) -25°C ~ 50°C ***/ **** (configured as 65W TDP mode) |
| Ethernet | Optional: 1x 10 GbE port by Intel® X550AT controller (M12 X-coded) contact DANBIT A/S |
| Forsyning | 8V to 48V DC input (M12 S-coded) Ignition Control Built-in ignition power control (IGN/ GND signal via M12 serial port connector) |
| Grafik | Integrated Intel® UHD Graphics 630 |
| Hukommelse | Up to 64 GB ECC/ non-ECC DDR4-2666/ 2400 SDRAM(two SODIMM sockets) |
| Luftfugtighed | 10%~90% , non-condensing |
| Lyd | depens on solution contact sales |
| M.2 | 1x M.2 2280 M key socket (PCIe Gen3 x4) for NVMe SSD or Intel® Optane™ memory installation |
| Montering | Need to be ordered RACK or Wall mount |
| mPCIe | depens on solution from 2 full to 4 contact sales |
| Msata | 2x full-size mSATA port (mux with mini-PCIe) |
| Mål og vægt | depens of solution from 12 to 12.2Kg |
| PoE | 1x IEEE 802.3at (25.5W) Gigabit PoE+ ports by Intel® I219 (M12 X-coded) 3x IEEE 802.3at (25.5W) Gigabit PoE+ ports by Intel® I210 (M12 X-coded) 7x IEEE 802.3at (25.5W) Gigabit PoE+ ports by Intel® I210 (M12 X-coded) |
| SSD | 2x Internal SATA port for 2.5" HDD/ SSD installation, supporting RAID 0/ 1 |
| TPM | Supports TPM 2.0 |
| Udgange | 1x VGA (M12 A-coded), supporting 1920 x 1200 resolution |
| USB | from 3 to 5 USB depens on solution contact our sales |
| AMT | Supports AMT 12.0 |
