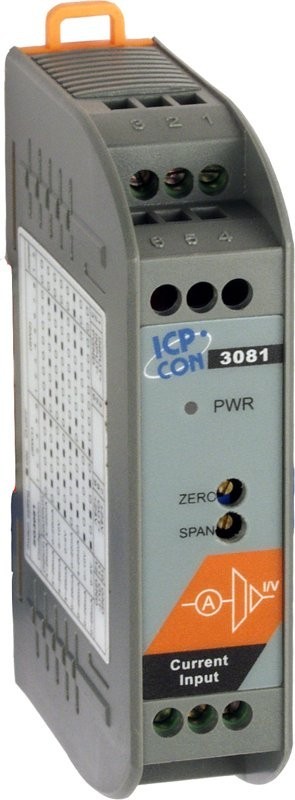

Isoleret DC Current Input/Output Modul
0-20mA transmitter til spænding
Isolation 1000 VDC
Udvidet drifttemperatur (-25 ~ +75°C)
Til DINskinne montering
Input og output-stik på den modsatte side
| Driftstemperatur | -25 °C ~ 75 °C |
|---|---|
| Forsyning | Input +10 ~ +30 VDC Power Consumption 1.61 W(Voltage Output), 2.10 W(Current Output) |
| Indgang | Input Channels 1 Input Type (Unipolar) 0 ~ 20 mA, 4 ~ 20 mA Input impedance 250 Ω Input bandwidth 1KHz |
| Isolation | Three-way isolation 1000 VDC |
Specifications
Analog Input
Input Channels 1
Input Type (Unipolar) 0~20mA, 4~20mA
Input impedance 250Ω
Input bandwidth 1KHz
Analog Output
Channels 1
Voltage Output (Unipolar) 0~5V,0~10V
Voltage Output impedance <50Ω(10mA max)
Current Output(Source) 0 ~ 20mA, 4 ~ 20mA
Current load resistor 0~500Ω(Source)
Other specifications
Three-way isolation 1000Vdc
Accuracy ±0.1% of full range
Response time <10ms
Weight 95.5 gram
LED Display
1 LED as Power/ Communication indicator
Power
Input +10 to +30 Vdc
Power Consumption 1.61W(Voltage Output) ,2.10W(Current Output)
Environment
Operating temperature -25°C to 75 °C
Storage temperature -30°C to 75 °C
Humidity 5 to 95%, non-condensing
