Design for Industriel Automation, M2M løsninger
Onboard Atom Dual Core D2550 1,86 GHz processor
1 x DDR3 SODIMM, max. 4GB

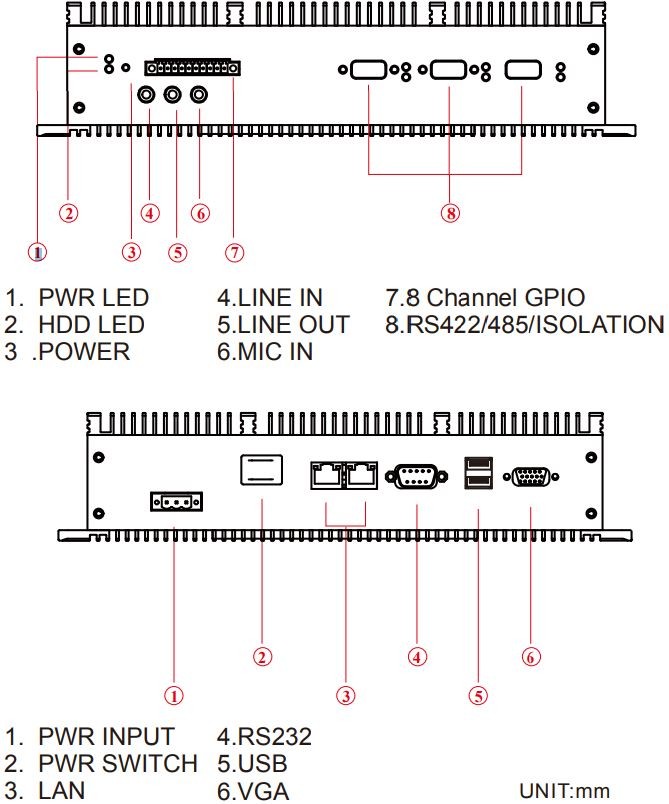

3 x RS422 / 485 kommunikation med isolation beskyttelse
Support 8 GPIO af Phoenix typen Terminal Block
2x Giga LAN, 2x USB, 1x VGA, 1x Line in, Line ud, Micro I
Blæserløs , Højeffektiv termisk design vægt / forseglet konstruktion
OS support: Windows7 32bit
1,5kV jævnstrøm isolationsmodstandDNVGL-CG-0339, IEC 60945 4th Egdtion, CE / FCC
| CPU | Intel® Atom Dual Core D2550 1.86 GHz |
|---|---|
| Chipset | Intel NM10 |
| Approval | DNVGL-CG-0339, IEC 60945 4th Edition, CE / FCC |
| Chok/Vibration | Anti-Vibration 5Hz~500Hz /1Grms /3 Axis Anti Shock 15G, 11ms duration |
| Dimensioner | (L x W) 296mm x 169mm x 66mm |
| Driftstemperatur | -15 to 55 deg.C |
| Ethernet | 2 x RJ45 Broadcom BCM57780 GbE controller |
| Forsyning | +24Vdc in with 1.5KV DC isolation, Resistance (+9~36V DC input acceptable) |
| GPIO | 8 x GPIO by Phoenix type Terminal Block |
| Grafik | Integrated in Intel NM10, LVDS/CRT |
| Hukommelse | 1 x SODIMM, Max 4GB DDR3 800(2GB Default) |
| Luftfugtighed | 5% to 95% (non condensing) |
| Lyd | 1 x Micro in , Line out , Line in Jack |
| Materiale | Aluminum housing |
| Montering | default wall mount! Option VESA/Desktop |
| Msata | 1 * 64 GB mSATA SSD |
| Porte | 1 x RS232, 3 x Isolated RS422/485 auto-detected with Indicator |
| Udgange | VGA |
| USB | 4 x USB 2.0 by pin-header(internal) ; 2 x USB 2.0 (external) |
Et eksempel på hvad vi kan tilbyde af marine/DNV godkendt embedded PC. Andre modeller og løsninger tilbydes. Kontakt salgsafdeling for yderlig information.
