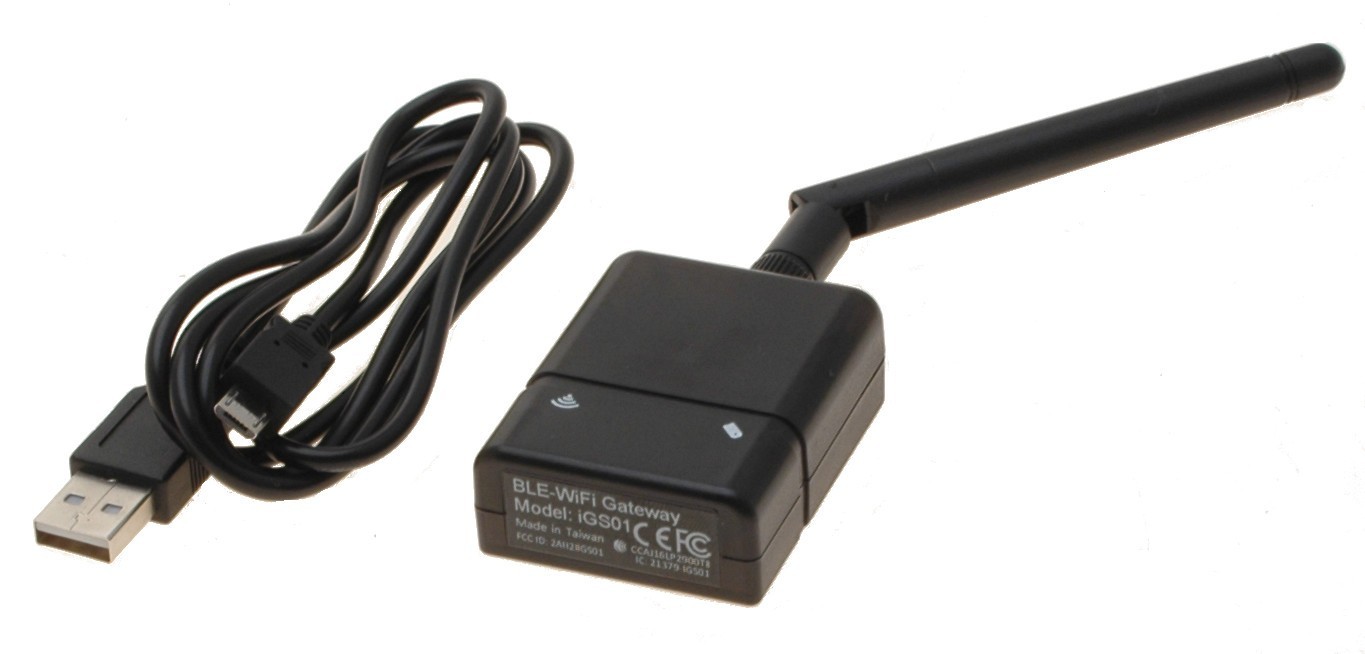

WiFi Gateway til indendørs klimaalarm - AIRPRO - tilbehør

Gateway bridge til AIRPRO modellerne, så data fra dem kan oploades til en fælles server på internettet .
Der medfølger bekskrivelse til at opsætte sin egen server, til dette skal der et kenskab til programmering i Windows miljø.
Enheden konfigureres via USB tilslutningen.
Data fra AIRPRO kan gemmes på PC som excel fil til senere brug- eller dokumentation.

Absolute Maximum Rating
Supply Power Max. +5.5 Volt
Storage Temperature -40º to 85º Celsius
Voltage Ripple +-2%

Recommendable Operation Condition
Operating Temperature -20º to 45º Celsius
Humidity Max 95%, Non condensing, relative humidity
VDD +5 Volt +- 5%

Working mode
(reading BLE and send to server)
Max.: 436 mA
Average: 83 mA

Wi-Fi RF Specification
Wireless IEEE 802.11b/g/n(single stream)
Network modes infrastructure, Ad-Hoc
Data rate IEEE 802.11b, 1-11Mbps
IEEE 802.11g, 6-54Mbps
IEEE 802.11n(2.4GHz), 7.2-72.2 Mbps
Frequency band 2.400 – 2.484 GHz
Number of selectable Sub
channels
14 channels
Channel Bandwidth 20MHz
Modulation OFDM, DSSS (Direct Sequence Spread Spectrum), DBPSK,
DQPSK, CCK , 16QAM, 64QAM
Maximum receive input level - 10dBm (with PER < 8%@11 Mbps)
- 20dBm (with PER < 10%@54 Mbps)
- 20dBm (with PER < 10%@MCS7)
Minimum receive input level - 87dBm (typ. with PER < 8%@11 Mbps)
- 70dBm (typ. with PER < 10%@54 Mbps)
- 70dBm (typ. with PER < 10%@MCS7)
Transmit Power 17dBm (typical)@ 802.11b
13dBm (typical)@ 802.11g
11dBm (typical)@ 802.11n
Carrier Frequency Accuracy +/- 20ppm (crystal: 26MHz +/-10ppm in 25 o C)
Antenna 2dBi dipole antenna
Range up to 100M meters( in open area)
Security WPA/WPA2

BLE RF Specification
Transmit Power Max.: 4dBm
RF Power Accuracy +- 4 dB
Receiver Sensibility -96 dBm @250kbps, 0.1% BER
-90 dBm @1Mbps, 0.1 %BER
Maximum Received Signal
Strength at <0.1% PER
0dBm
Frequency Deviation +-250 kHz @BLE
Antenna on board PCB antenna
Range 30M in open space

Dimension
Dimensions L x W x H (mm) 54 x 41 x 18 (not including dipole antenna)
