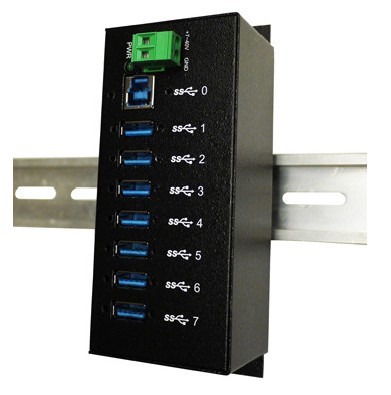

7 port USB3.0 HUB
Forsyningsspænding +7- +48VDC via terminal block
Husk at beregne strømforbruget på portene
PSU vælges ud fra beregningen
Surge Protection
Giver stor støj-immunitet
Tilkøb ekstern strømforsyning
DIN skinne kit medfølger
NB: Intern jumper kan frakoble PCens USB forsyning
| Dimensioner | 4.80”(L)x2.16”(W)x1.71”(H) (12.20x5.50x4.35 cm) |
|---|---|
| Driftstemperatur | -20 to 85C (-4 to 185F) |
| I/O | Supports 7 external USB3.0 Type-A connectors and 1 USB3.0 Type-B Upstream connector. Supports a 2-pin Terminal Block Connector for external power input from AC adapter |
| Input | +7~48 VDC via terminal block |
| Understøtter | USB3.0, USB2.0, or USB1.1 Ports USB3.0 ports |
| USB | Supports keyboard, mouse, monitor, scanner, printer, PC Camera, telephone, DVD drive, joystick, virtual reality helmet, modem, PBX and many more USB devices |
Compliant with USB Specification Revision 3.0
Metal Case with DIN RAIL Mounting Kit for Industrial Critical Applications
Built-in RISC-like USB3.0 Hub Controller
Provides 7 Downstream USB3.0 Facing Ports
Supports 5Gbps (Super-speed), 480Mbps (High-speed), 12Mbps (Full-speed) and 1.5Mbps (Low-speed) Speed
Supports Surge and 15KV ESD Protection for Each Port
Supports +7~48V DC Wide Range Self-power Input
Multi Transaction Translators (TT) per Hub
Supports Wide Range Self-power Input
Support USB Battery Charging: CDP and DCP modes
Supports USB Screw-Lock Cable Mechanism
For Systems with USB3.0, USB2.0, or USB1.1 Ports USB3.0 ports
Operating Temp.: 0 to 70C (32 to 158F)
Storage Temp: -20 to 85C (-4 to 185F)
Operating Humidity: 5 to 95% RH
Dimensions: 122 x 550 x 445 mm
