ANALOGT INPUT MODUL TIL MODBUS
8 kanals differential analog indgang
Spænding og strøm indgang (husk shuntmodstand på 125 ohm)
+/-120 VDC overspændings beskyttelse
16bit opløsning
Open Wire detektering på 4 ~ 20 mA
3000 VDC Isolation
Dual Watchdog
Udvidet temperaturområde: -25°C ~ +75°C
| Andet | +/-35 VDC Overvoltage Protection |
|---|---|
| Baudrate | 1200 ~ 115200 bps |
| Driftstemperatur | -25C to 75C |
| Indgangsimpedans | 20 MΩ |
| Input | +/-150 mV, +/-500 mV, +/-1 V, +/-5 V, +/-10 V, +/-20 mA 0 ~ 20 mA, 4 ~ 20 mA (requires optional external 125 Ω resistor) |
| Installation | DIN-Rail or Wall Mounting |
| Interface | RS-485 |
| Isolation | 3000 VDC |
| Luftfugtighed | 10 ~ 95% RH, Non-condensing |
| Opløsning | 16-bit |
| Output | 10 ~ 30 VDC |
| Protokol | Modbus RTU, DCON |
Modbus 8 Channel Data Aquisition Module

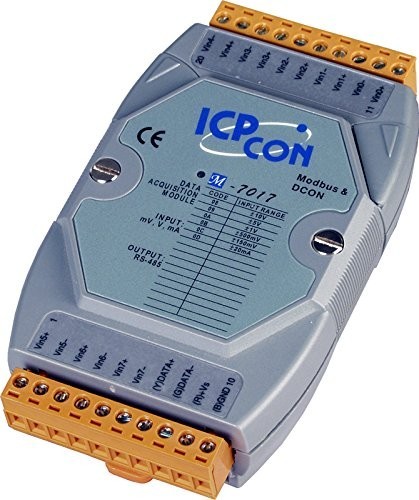

MOD485-IO8AI M-7017 is an analog input module that provide 8 differential input channels. The input type includes both voltage and current, and all channels are available for the same input range. An optional external 125 Ω resistor is required for current input. The modules also feature 3000 VDC intra-module isolation as well as +/-120 VDC overvoltage protection. The M-7017 supports both the Modbus RTU and DCON protocols, which can be configured via software, and provides 8 differential analog input channels.
