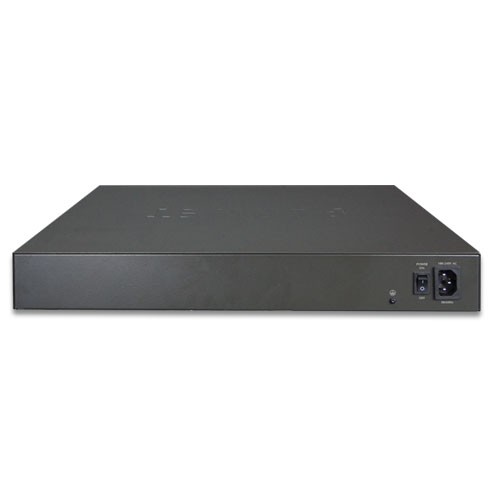

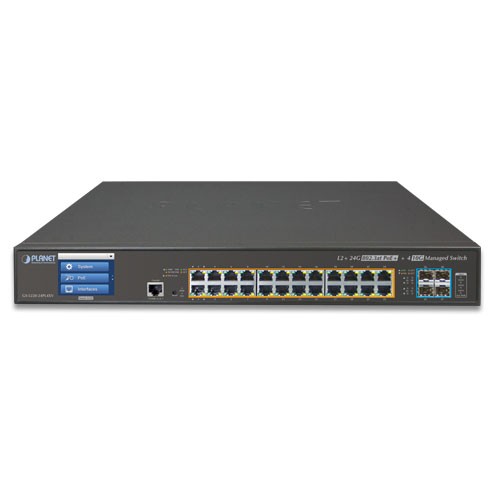

24 port Managed switch 24 x 10/100/1000Mbit RJ45. Fiber 4 x SFP slot for 10Gbit/1Gbit, PoE+, 100-240VAC
11,481.00 kr
Ekskl. moms
Managed Industrial switch. 24 x RJ45, 4 x SFP
24 Port ethernet switch with PoE+ (36Watt)
Total PoE power is 740 Watt
24 x RJ45 10/100/1000Mbit
POE standard: IEEE 802.3af/802.3at/802.3bt
4 x SFP 10Gbit / 1Gbit, 10GBASE-SR/SL SFP+ interfaces (Port-25 to Port-28)
128Gbps (non-blocking)
Auto generation of port configuration
MVR (Multicast VLAN Registration)
IGMP snooping
Dimensions: 440 x 300 x 56 mm (1.25U)
Weight: 5.4 kg
Supply voltage, 100 - 240 VAC
Quantity
Ask a question
close
Specifications
| Data | 32M bits |
|---|---|
| Dimensioner | 440 x 300 x 56 mm |
| Duplex | Half duplex Back pressure and IEEE 802.3x Full Duplex Pause frame flow control |
| PoE | IEEE 802.3af/802.3at/802.3bt ULTRA PoE PSE |
| Porte | 24 x 10/100/1000BASE-T RJ45, 4 x 10GBASE-SR-LR SFP+ |
| Strømforbrug | Max. 723 watts |
| Strømforsyning | AC 100-240V |
| VLAN | 802.1Q, Q til Q, Privat edge (PVE), MAC baseret, protokol basseret, Voice basseret, MVR (Multicast VLAN registration),) |
| Weight | 5339g |
Amazing PoE+ managed switches with advanced L2+/L4 switching and security
The ESW24GSFP4-POE+ is a cost-optimized 1.25U, Gigabit PoE+ managed switch with LCD touch screen with intelligent PoE features to improve the availability of critical business applications. It provides IPv6/IPv4 dual stack management and built-in L2+/L4 Gigabit switch engine along with 24 x 10/100/1000BASE-T ports with 36 Watt PoE+ and 4 additional 10Gigabit SFP+ ports. With a total power budget of up to 740 watts for various kinds of PoE applications, the ESW24GSFP4-POE+ provides a fast, secure and cost-effective PoE+ network solution for small businesses and enterprises.
Cost-effective 10Gbps Uplink capacity
10G Ethernet is a big leap in the evolution of Ethernet. The four 10G SFP+ slots on the ESW24GSFP4-POE+ support dual-speed 10GBASE-SR/LR or 1000BASE-SX/LX, which means that the administrator can now flexibly select the appropriate SFP/SFP+ transceiver according to the transmission distance or transmission speed required to expand the network effectively. They greatly support SMB networks to achieve the maximum performance of 10 Gbps in a cost-effective way, because the 10 Gbit interface could normally be available in Layer 3 Switch, but Layer 3 Switch could be too expensive for SMBs.
