EN50155/EN45545 Certified 10th Gen Intel® Core™ Processor Railway Computer System with M12 Connection and Dual WWAN
Call +45 56 66 20 20 for price
Ekskl. moms
Supports 10th Gen Intel® Core™ Desktop processors
AI solution for Transportation
Max. 128GB RAM
2x Gbit Lan M12
4x USB
2x SIM Slot
2x 2.5" SSD , RAID 0/1/5
1Xmicro SSD
1x HDMI
1x DVI-D
1 x RS-485, 1 x RS232/485 Isolated
M12 connectores
Up to 10x GbE ports (8x with PoE capability)
10G LAN (need to be ordered special)
Supports Intel® Movidus Vision Acceleration M.2 modules
Supports Wi-Fi 6 CNVi, dual WWAN channels
1x USB Type-C with graphics output for quick setting and diagnostics
EN50155 (2021) / EN45545-2 certified
Quantity
Ask a question
close
Specifications
| CPU | 10th Gen Intel® Core™ Desktop processors |
|---|---|
| Approval | EN50155: 2021, EN45545-2 CE/FCC class-A |
| Chok/Vibration | EN61373 |
| Driftstemperatur | Operating Temp: -10°C~60°C (14°F~140°F) |
| DVI | 1 |
| Ethernet | 2x M12 GbE option 10Gbit, Up to 10cGbe port (8 with POE) need to be ordered |
| Forsyning | Main: 72V/110VDC Second: 24V DC only, once the main power loses, switch to second power automatically |
| HDMI | 1 |
| Lyd | 1x 3.5mm green audio connector for Line-out |
| M.2 | 1x 3042/52 M.2 B-Key WWAN (supports SIM1), 2x M.2 socket comes with USB2.0/3.0/PCI-Ex,, 2x 2242/80 M.2 M-key socket for SSD/VPU/WLAN |
| mPCIe | 1x mPCI-E full/half-size socket |
| RAID niveau | RAID 0/1/5 supported, Max. 4x SATA devices |
| SIM kort | 2 |
| SSD | 2x 2,5" Removable device bay for SSD devices 2x M.2 M-key SSD device |
| USB | 4 |

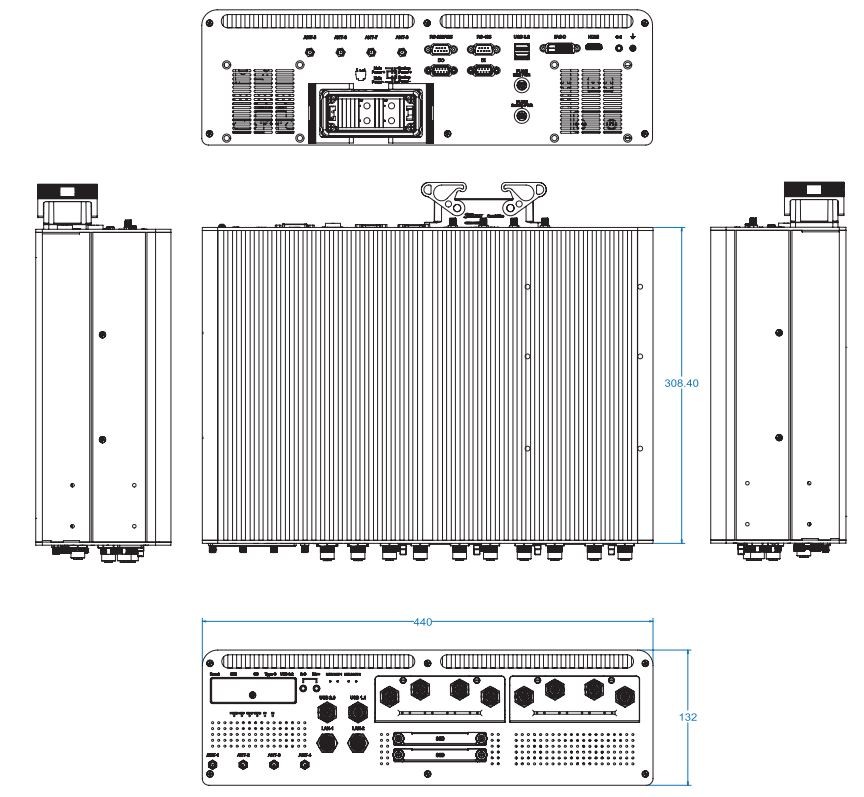

| Dimension | 482 (W) x 308 (D) x 132 (H) mm 18.97” (W) x 12.13” (D) x 5.2” (H) |
| Serial Porte | 1x Male DSUB9 for RS-485, isolated 1x Male DSUB9 connector for RS-232/485, isolated 1x Female DSUB9 for 8x DO and ground by cable, isolated |
| RAM | 2x DDR4-2666 SO-DIMM, 2x 8GB (default) Maximum size supported: 128GB |
| WiFi | Support wifi 6 CNVi, 4 x SMA antenna holes with cap. |
