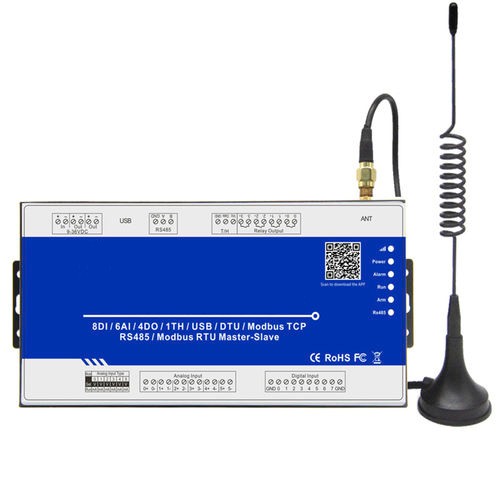

GSM Alarm controller with alarm via SMS. 6 x analog input v / 0-20mA, 8 x digital input 4 x relay output, APP, 4G
3,963.00 kr
Ekskl. moms
8 x digital inputs NC / NO Type
6 x analog inputs. 12 Bit resolution, 0-5V, 4-20mA or 0 - 20mA
4 x Relay outputs 5A / 30VDC, 5A / 250VAC
1 x USB port
GSM 3G 4G
9-36VDC (12V / 300mA)
Backup Battery 3.7v 1200mAh
Operating temperature -10- + 70 °C
Adapted SMS Alarm Messages
APP for iOS and Android
Quantity
Ask a question
close
Specifications
| Driftstemperatur | -10 til +70 °C |
|---|---|
| Forsyning | 9 - 36VDC |
| Indgang | 8 x +3~30V T/H til måling af fugt( 0~100%RH) og temperatur(-40°C til +80°C) |
| Porte | 1 x USB Port, 1 x RS485 |
| Relæ | 4 x 5A/30VDC/250VAC |
| SIM kort | 1 x 3G/GSM 850/900/1800/1900Mhz |
GSM controller with 8 digital inputs and 6 analog inputs to voltage or current.

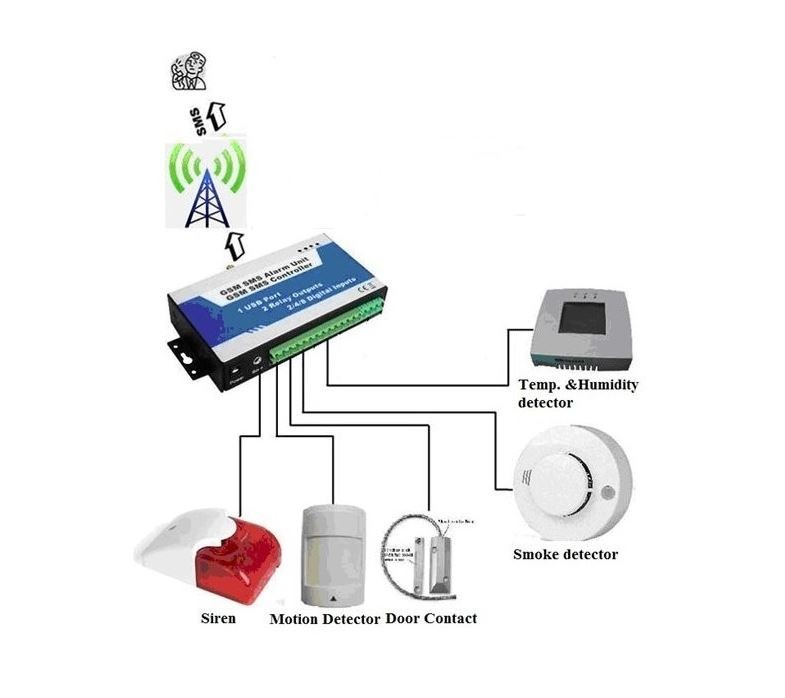

Digital inputs for "break contacts", which can be connected to different sensors e.g. Room sensor door / window contacts ..
When alarm can GSM-Alarmxxx send SMS or call 8 different Tel. from a list.
GSM-AlarmXXX has built-in battery backup so it can send information during power failure. Br> Digital inputs: 8
Analog inputs: 6
Relay outputs: 4
Alarm Relay (230VAC 3A)
1 pc. Relay that can be controlled via SMS messages (230VAC 3A)
USB port: 1 mini USB port (for setting up the device via PC software as included)
GSM Frequency: 850/900/1800/1900 MHz
