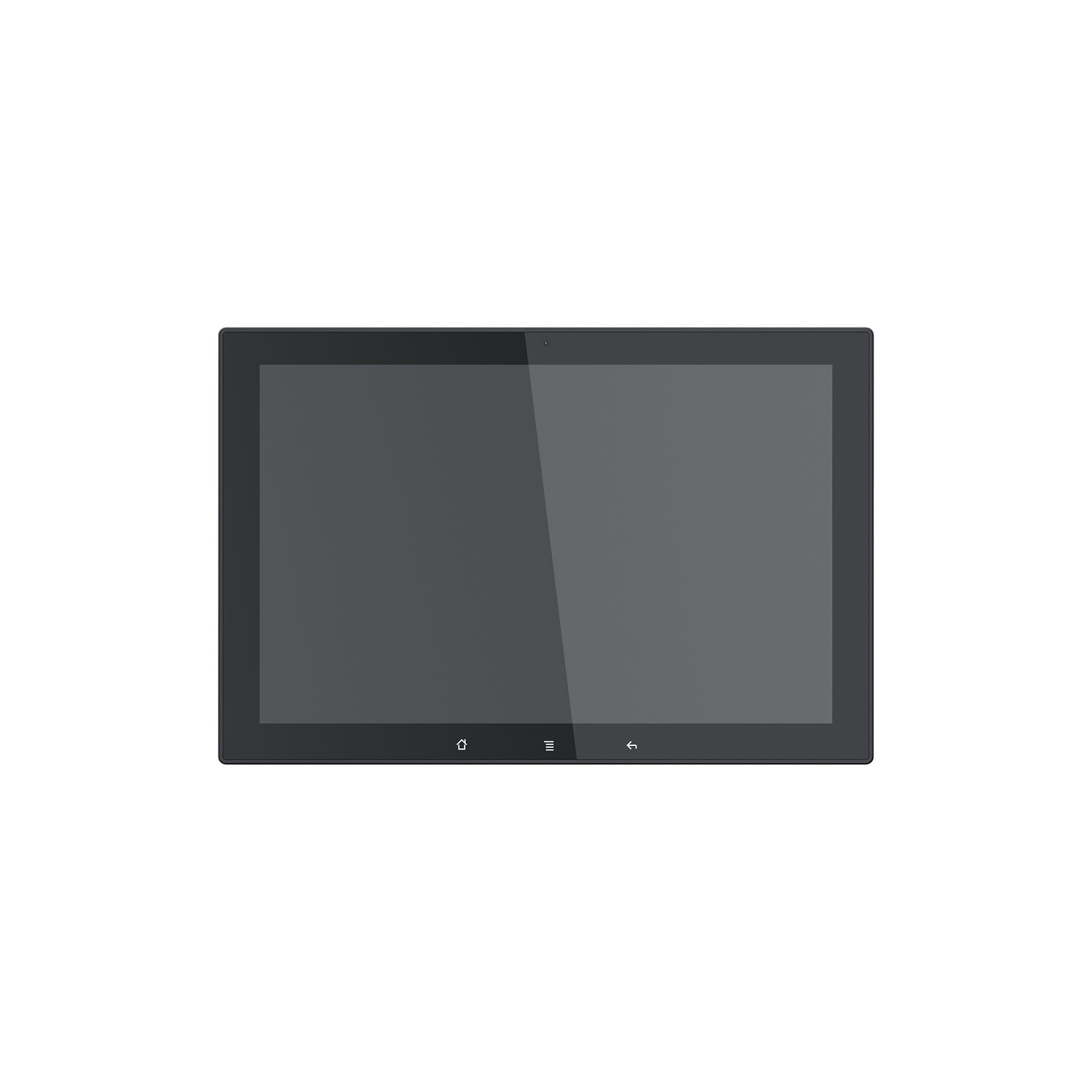

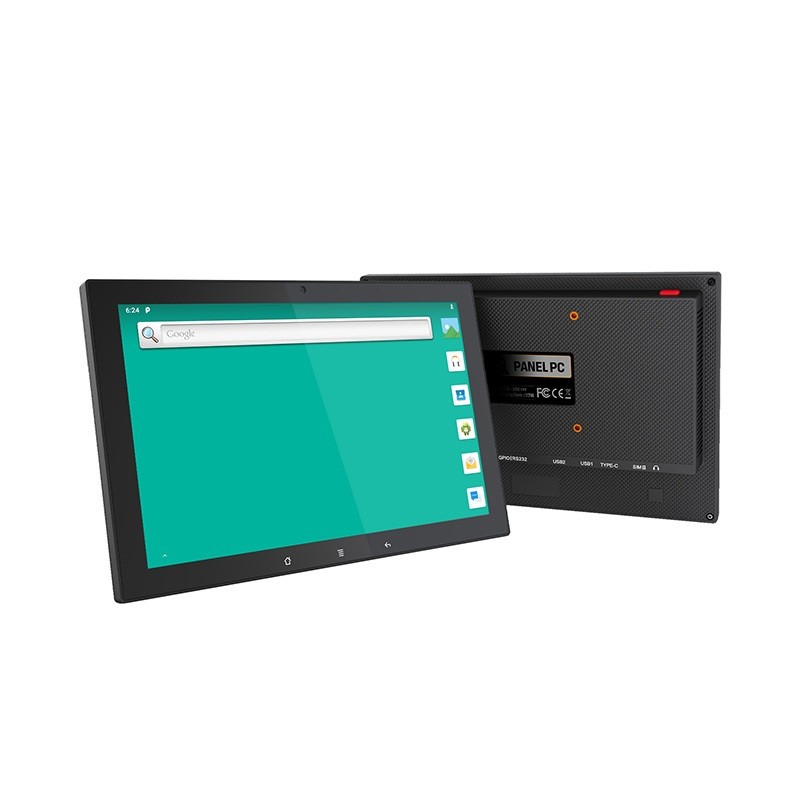

10" Industrial Panel PC with Android, Capacitive Touch, 1000 nits High Brightness with Auto Dimming, 9~36VDC
4,900.00 kr
Ekskl. moms
10" Industrial Panel PC
OS: Android 10
Rockchip RK3288 Cortex®-A17 Quad-core 1.8GHz processor
Resolution: 1280 x 800 (16:10)
Viewing angle: 170°/170°
Light sensor (automatic dimming)
10.1" IPS screen with 1000 nits brightness and capacitive touch
1 x RJ45 Gigabit Ethernet
4 x GPIO (2 inputs, 2 outputs)
3 x RS232 (via DB9 octopus cable)
1 x HDMI output
2 x USB-A host
1 x USB-C OTG
3.5mm audio output
Memory: 2GB LPDDR3 + 16GB eMMC, Option: 4GB + 64GB
Supply voltage: 9~36VDC (mains adapter not included)
Operating temperature: -10° ~ +60°C
Dimensions: 249 × 166 × 32mm
Weight: 980g
Quantity
Ask a question
close
Specifications
| CPU | Rockchip RK3288 Cortex®-A17 Quad-core 1.8GHz processor |
|---|---|
| bluetooth | Optional Bluetooth 5.0, 2402MHz~2480MHz |
| Dimensioner | 249 × 166 × 32mm |
| Driftstemperatur | -10° ~ +60°C |
| Forsyning | 9~36VDC |
| GPIO | 2 input, 2 output |
| GPS | Optional GNSS: (GPS, GLONASS) |
| HDMI | 1 x HDMI output |
| Hukommelse | 2GB LPDDR3 |
| Kamera | Optional front camera, 5MP |
| LAN | RJ45 Gigabit Ethernet |
| Lyd | 3.5mm Audio Jack |
| Lysstyrke | 1000 nits |
| Netværk | Optional Cellular: 3G/4G (LTE, DC-HSPA+, UMTS, EDGE, GPRS, GSM) |
| Opløsning | 1280 x 800 (16:10) |
| Porte | 3 x RS232 DB9 |
| Storage | 16GB eMMC |
| USB | 2 x USB-A, 1 x USB-C |
| Weight | 980g |
| WiFi/WLAN | Optional 802.11a/b/g/n/ac, 2.4/5Ghz Wi-Fi |
Optional 802.11a/b/g/n/ac, 2.4/5Ghz Wi-Fi
Optional Bluetooth 5.0, 2402MHz~2480MHz
Optional Mobile network: 3G/4G (LTE, DC-HSPA+, UMTS, EDGE, GPRS, GSM)
Optional GNSS: (GPS, GLONASS)
Optional front camera, 5MP
