8 ports Industrial 10/100 / 1000Mbit + 2 x 100 / 1000Mbit SFP slot switch, DIN rail, -40 - + 75 ° C, 12 - 48VDC
4,393.00 kr
Ekskl. moms
8 & nbsp; ports 10/100 / 1000Mbps Fast Ethernet switch + 2 100 / 1000Mbps SFP slot
Auto MDI / MDI-X Function
Store and Forward Switching Architecture
20Gbps Back-Plane (Switching Fabric)
8K MAC Address Table
9.6Kbytes Jumbo Frame Support
Surge Protection: 3,000 VDC
ESD Protection: 6,000 VDC
Redundant Power Input - 12 ~ 48VDC
1 Relay Output to Port Break Alarm
IP30 Aluminum housing
DIN-Rail and Wall Mount
Temperature range: -40 ° to 75 ° C
Quantity
Ask a question
close
Specifications
| Dimensioner | 46 x 99 x 142mm |
|---|---|
| Driftstemperatur | -40 - +75 |
| Fiber | 2 x 100/1000Mbps SFP slot |
| Kabinet | Metal, IP30, DIN-beslag, option vægbeslag |
| Maks. effekt | 10 Watt |
| Netværk | 8 x RJ45, 10/100/1000Mbps |

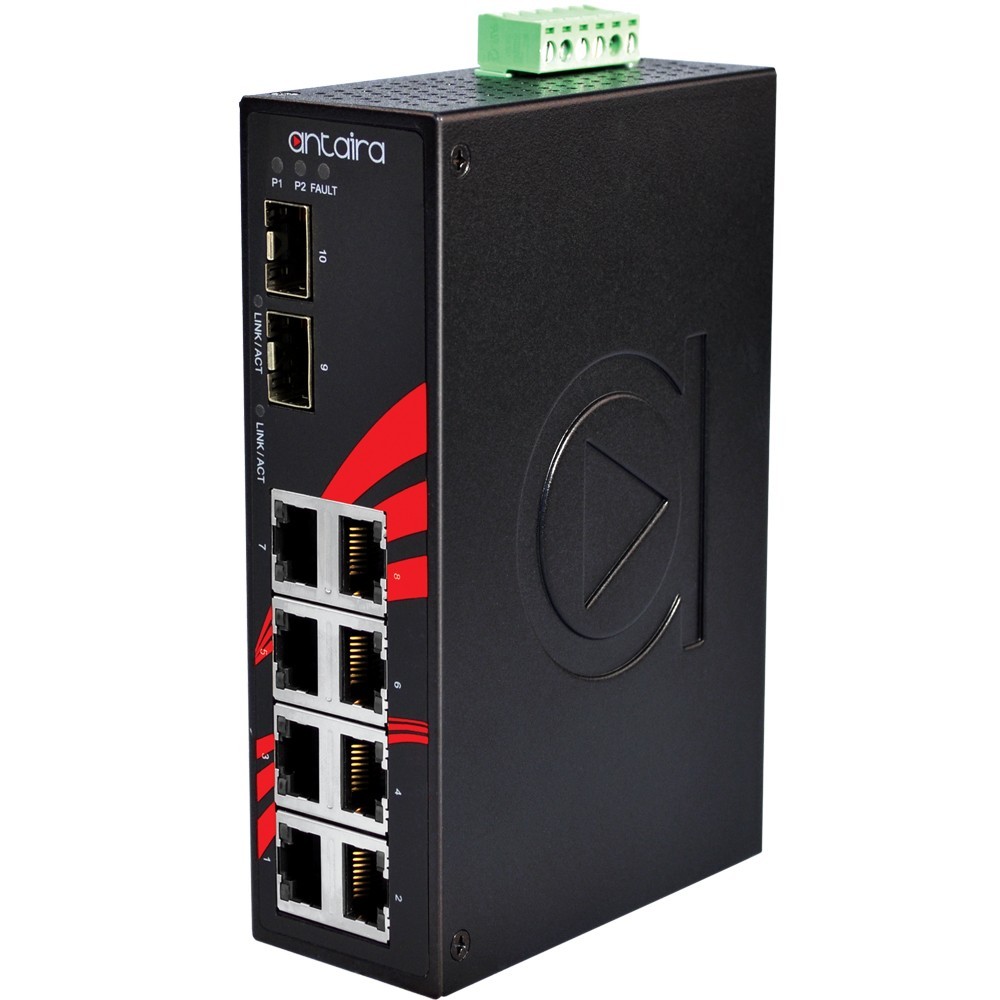

Antaira’s LNX-1002G-SFP-T industrial gigabit unmanaged Ethernet switch series are IP30 rated and DIN-Rail mountable. Each unit is designed with 8 gigabit Ethernet ports and 2 dual rate (100/1000) SFP slots, making it ideal for applications that demand high bandwidth and long distance communication. This product series provides high EFT and ESD protection to prevent any unregulated voltage and is suitable for harsh environments. It supports the power redundancy feature using a dual power input design with reverse polarity protection. In addition, the built-in relay warning function alerts maintainers when power failures occur.
The LNX-1002G-SFP-T has an extended operating temperature range of -40 to 75°C and is perfectly designed to fulfill any special needs for industrial automation, outdoor applications and harsh weather environments.
