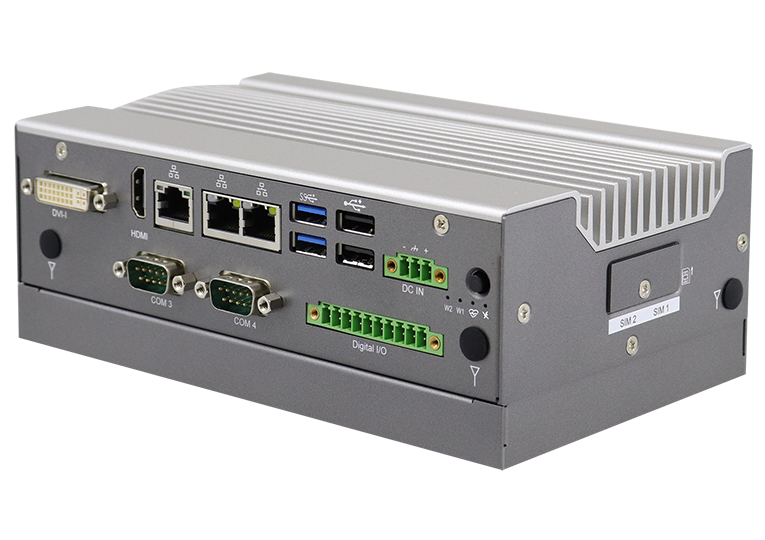

Fanless ATOM PC 2xSIM, DVI, HDMI, 3xEthernet, 4xCOM, -20°C~70°C, DIN or wall mount IOT Gateway delivered up to 15 years

Name: Fanless ATOM PC 2xSIM, DVI, HDMI, 3xEthernet, 4xCOM, -20°C~70°C, DIN or wall mount IOT Gateway delivered up to 15 years
Brand: Danbit A/S
SKU: EPC-ATOM-3E4C4IODIN
Availability: BackOrder

Product number EPC-ATOM-3E4C4IODINCategory Atom

Call +45 56 66 20 20 for price

Ekskl. moms

Intel® Atom® x6414RE/x6212RE Processors (formerly Elkhart Lake)
GPIO 4-in/4-out & 1x DVI-I & 1x HDMI
1x M.2 B-Key 3052 support 5G module
Optional 1x 2.5’’ SSD (needs to be ordered)
3x 2.5G Ethernet port
3x full-size Mini PCI-E sockets
4x COM (RS232/422/485)
2x USB 3.1 & 2x USB 2.0
Supports DIN-rail mount, wall mount
TPM 2.0
Extended operating temperature from -20°C to 70°C
9V~36V DC wide-range power input Over/Under/Reverse voltage protection

Quantity

Get Volume Offer DOWNLOADS

Ask a question

Specifications

CPU	Intel® Atom® x6414RE (1.5GHz, 1.5MB cache, 9W TDP) or as option Intel® Atom® x6212RE (1.2GHz, 1.5MB cache, 6W TDP)
Andet	2 x antenna hole for wlan module (NOT INCLUDED)
Approval	CE/ FCC/ LVD
Chok/Vibration	Vibration Operating: 2.0 Grms / 5~500Hz / random operation (with IEC 60068-2-64) Shock Operating: 30G/11 ms Duration Non-operating: 40G/11 ms Duration
Dimensioner	218mm(W) x 110mm(D) x 57mm(H) w/ Wall mount kit 8.58”(W) x 4.33”(D) x 2.24”(H)
Driftstemperatur	-20°C~70°C (-4°F~158°F)
Ethernet	3 x RJ45 2.5G Ethernet port
Forsyning	9V-36Vdc, 1x 3-pin DC-in terminal block, 1x power button with Green LED
GPIO	1x 4-in & 4-out GPIO
Hukommelse	1 x 4GB DDR4-3200 SO-DIMM, Max. 16GB
Luftfugtighed	5~90% @ 60°C, (non-condensing)
Lyd	1x Line-out/ Mic-in
M.2	1x M.2 B-Key socket (USB 3.0 + PCI-E)
Materiale	Aluminum & steel
Montering	DIN-rail mounting (DIN-rail mount kit included) Desktop or wall mounting (wall mount kit included)
mPCIe	1x Full-size Mini PCI-E socket (USB 2.0) 1x Full-size Mini PCI-E socket (USB 2.0 + SATA) 1x Full-size Mini PCI-E socket (USB 2.0 + PCI-E)
OS SUPPORT	Win10 and Linux Ubuntu
Porte	4x RS232/422/485
SSD	1x Mini PCI-E slot (mSATA SSD), OPTION! 1x 2.5’’ SSD mount special order!
Udgange	1x DVI-I, 1x HDMI
USB	2x USB 3.1 ports, 2x USB 2.0 port

Industrial IOT PC. In the series of our Long Life models with long life up to 15 years!. This is only an example of one of them we have. Contact us if there are special requirements. We can supply all PCS ready for use with us, RAM and SSD installed.
