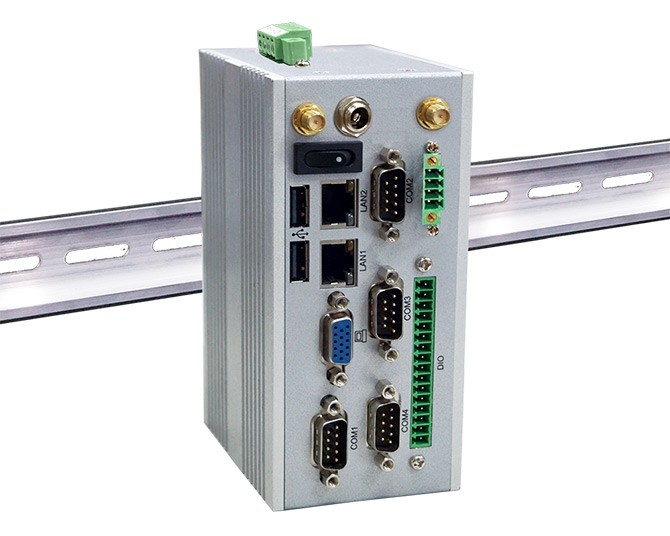

Compact Fanless Embedded PC for Industrial Use

Embedded PC Intel® Bay Trail, Celeron® J1900, 4GB RAM, DIN-rail

Name: Embedded PC Intel® Bay Trail, Celeron® J1900, 4GB RAM, DIN-rail
Brand: Danbit A/S
SKU: EPC-J1900-DIN
Availability: BackOrder

Product number EPC-J1900-DINCategory Atom

Call +45 56 66 20 20 for price

Ekskl. moms

Celeron® J1900
4GB DDR3L
2 x GbE, 4 x COM, VGA, 2 x USB
Wide Range 9~36V DC input
mSATA, HDD / SSD*

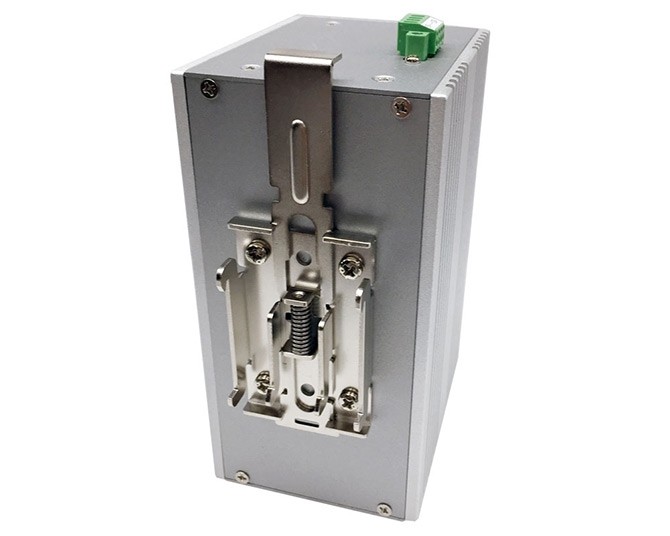

DIN Rail mountable (with optional Kit)

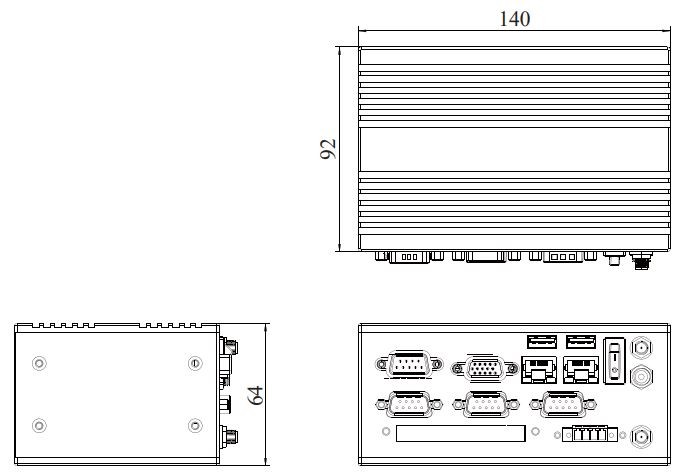

Dimensions 140 x 92 x 64 mm
Operaiting Temp. 20°C to +60°C

Quantity

Get Volume Offer DOWNLOADS

Ask a question

Specifications

CPU	Intel® Bay Trail J1900
Certifications	CE / FCC, UL, IEC / IECEE
Dimensioner	140 x 92 x 64 mm
Driftstemperatur	-20°C to +60°C with mSATA / SSD
Forsyning	+9~36V
Hukommelse	4GB DDR3L mSATA, HDD / SSD
Montering	Wall Mount, DIN Rail Mount, VESA Mount*
mPCIe	1 x Full-size Mini PCIe (PCIe / USB / mSATA) 1 x Half-size Mini PCIe (USB / mSATA)
Porte	2 x Intel GbE, 2 x USB 2.0, 4 x COM, 1 x VGA
Weight	0.75 kg

OS support:
Windows® 10 IOT (64bit), Windows® 8.1 (64bit), Windows® Embedded 8 Standard (64bit), Windows® 7 (32 / 64bit), Windows® Embedded Sta 7 (32 / 64bit), Ubuntu 14.10 above, Fedora 25 above, Debian 8 above, CentOS 7.3 above, Mint 18.1 above
