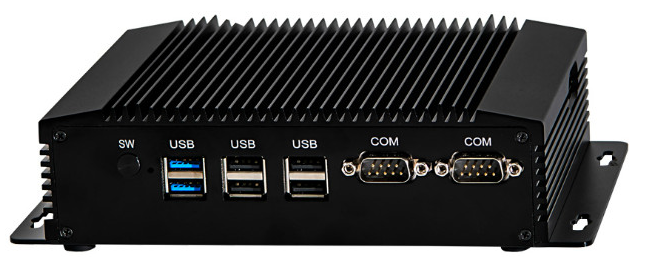

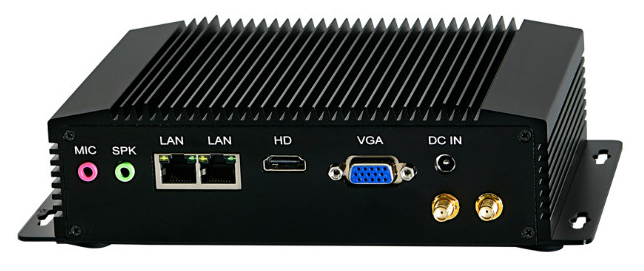

Embedded PC Intel N3520 4 core, 2xEthernet, 2xRS232/422/485, SIM Slot, VGA, HDMI, Auto power On, 6xUSB
Call +45 56 66 20 20 for price
Ekskl. moms
CPU: Intel N3520
1 x SO-DIMM DDR3L Slot, Support 4GB/8GB DDR3L 1333
Supports PXE (network boot)
Audio: 1 x Audio, 1 x SPK
1 x VGA
1 x HDMI
4 x USB 2.0
2 x USB 3.0
2 x RJ45 Intel Giga Lan
2 x RS232/422/485 (BIOS Select)
1 x MSATA to MSATA SSD
1 x Sata3.0 for SSD/HDD
Sim Socket, 1 x micro SIM slot with PUSH function (on the side)
Fanless
TPM

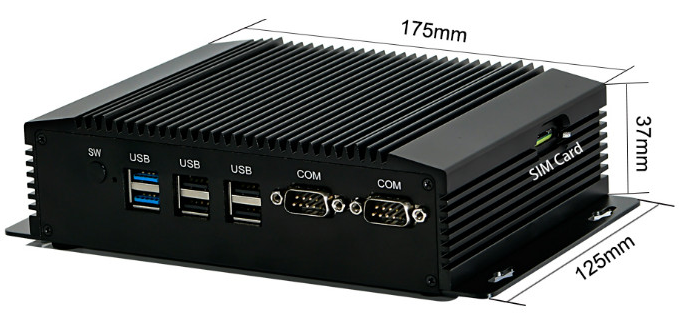

175*125*37mm,
wall bracket
Net 0.5 kg, gross 1.5 kg
12V DC
OS Support: Windows 7/Windows 8/Windows 10/ Windows 11/ Linux
Quantity
Physically in stock
Ask a question
close
Specifications
| CPU | Pentium |
|---|---|
| Chipset | Intel BTY SOC |
| BIOS | AMI BIOS ACPI support |
| Digital I/O | 1 x 8-bit GPIO |
| Driftstemperatur | -10/+60 C°(22°F~130°F) |
| LAN | 2 |
| Montering | Wall mount |
| Watchdog | Yes |
| TDP | 7.5W |
| Dimension | 175*125*37mm |
| RAM | 1 x SO-DIMM DDR3L Slot 1 x SO-DIMM DDR3L Slot, Support 4GB/8GB DDR3L 1333 MAX. 8GB |
| WiFi | yes |
