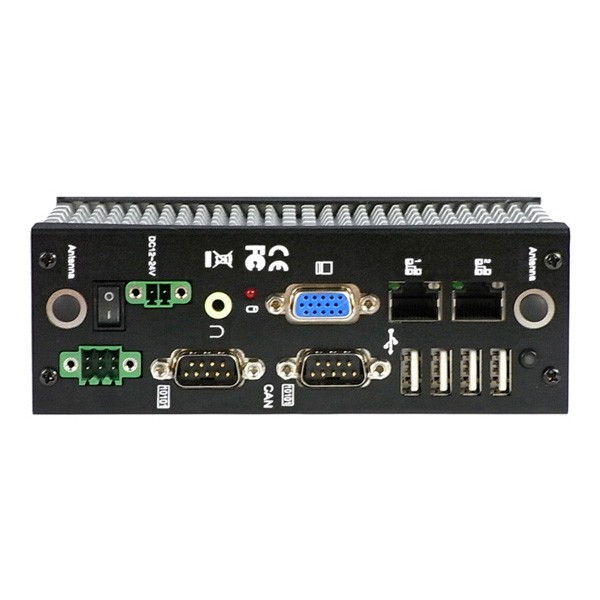

Embedded Industrial mini PC 3½", Atom N2600, CF, 4 x USB, 2 x RS232 CAN bus for older OS Windows 7, XP Embedded and Linux
Call +45 56 66 20 20 for price
Ekskl. moms
Not recommended for newer OS! No Windows 10/11 support
Contact us regarding replacement
The chipset is EOL
Atom 1.6 GHz CPU N2600
2 GB RAM DDR3, So-DIMM socket
1 x RS232/422/485 with DB9 connector
1 x RS232/422/485/CAN with DB9 connector
VGA
4 x USB 2.0
2-in/2-out digital
2 x 10/100/1000 RJ45 ethernet
Mini SIM slot
2.5" SSD/HDD slot (hard drive NOT included)

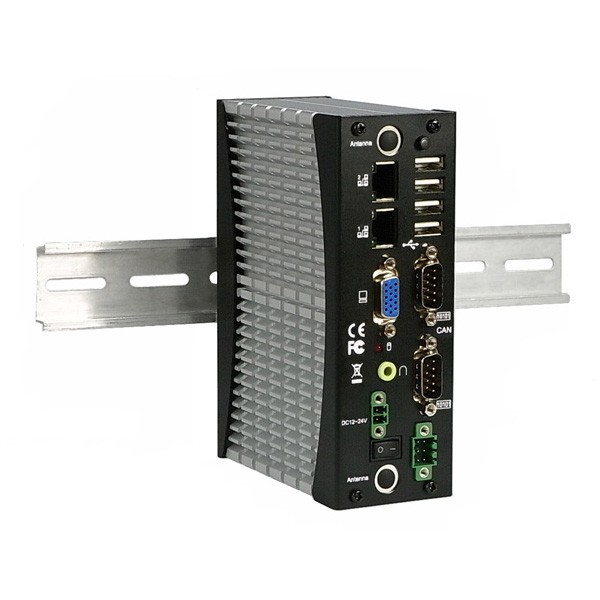

DIN rail mounting
9~32 VDC
Dimensions: 145 x 102 x 50 mm
Temperature: 0 - +50°C
OS support: Windows 7, XP Embedded and Linux
Quantity
Ask a question
close
Specifications
| CPU | Intel Atom-N2600 1.6GHz, 1MB L2 cache (Intel dual core CPU) |
|---|---|
| Chipset | NM10 |
| Hukommelse | 1 x 200-pin DDR3-RAM SO-DIMM. Monteret med 2GB RAM (maks. 2GB) |
| I/O | 1 x Digita I/O tilslutning via 6 pin terminalblok. Tænd/sluk knap, 1 x Power LED, 1 x HDD LED 1 x PCIe Mini-card interface til trådløs eller GPRS modul |
| Lyd | 1 x lydudtag via jack-stik til hovedtelefon |
| Montering | Mulighed for DIN skinne montage. Eller VESA 75*75 panel montering |
| Netværk | 2 x 10/100/1000 Mbit m/RJ45-stik Realtek RTL8111F |
| OS SUPPORT | Understøtter Windows 7, XP Embedded og Linux |
| Porte | 1 x RS232/422/485 med DB9-stik. 1 x RS232/422/485/CAN med DB9-stik |
| SSD | 2½” SATA harddisk |
| Strømforsyning | 9~32 VDC, 35V A via 2 pin skrueterminal (benyt DC12V/5A-R-Q) |
| VGA | 1 x VGA analog med DB15 tilslutning |
Industrial mini PC
3½” format
Suitable for industrial automation tasks
Can DIN rail be mounted or panel mounted
Other models/specifications can be supplied
We offer to assemble and install software as desired. Contact our sales department.
