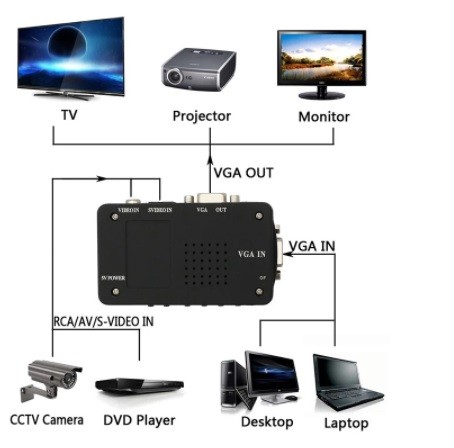

Composite and S-Video to VGA converter. Connect analog camera etc. to VGA monitor. Max. 1600x1200. 5VDC
953.00 kr
Ekskl. moms
Composite to VGA - with RCA/Phono connector
Additional purchases, if any BNCF-PHONOM (BNC to RCA adapter)
S-VIDEO to VGA
Converts 50Hz to 60Hz (CRT to TFT timing)
Resolution up to 1600 x 1200 points

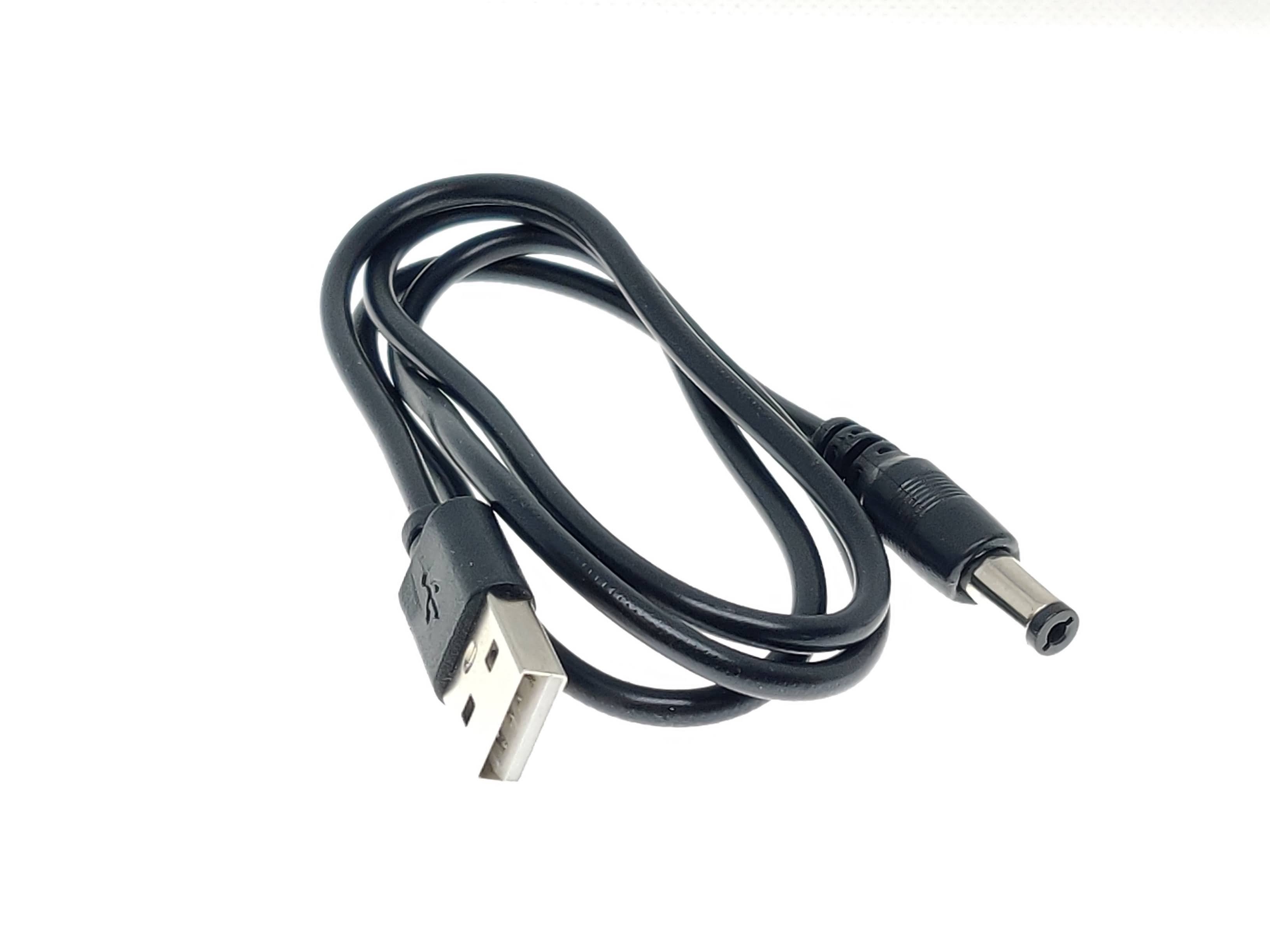

Power supply included 5VDC
Quantity
Ask a question
close
Specifications
| Dimensioner | 162.6(W) x 64.5(D) x 33.5(H) |
|---|---|
| Driftstemperatur | 0˚C~40˚C |
| Forsyning | 230 VAC netadapter 5VDC, 1A medfølger |
| Indgang | 1 x Composite (phonostik) 1 x S-Video |
| Luftfugtighed | 20~90% RH (no condensation) |
| Opløsning | 800 x 600@60HZ, 800 X 600@75HZ, 1024 x 768@60HZ, 1280 x 1024@HZ |
| Udgange | 1 x DB15HD hunstik |
Screen type: TFT flat screens, CRT CRT screens, Plasma screens or other screen types compatible with the below screen resolutions and refresh rates
Input signal: PAL 3.58 or NTSC
Conversion: 50/60 Hz frame rate conversion ensures a flawless image
Screen resolution: 800 x 600@60HZ, 800 X 600@75HZ, 1024 x 768@60HZ, 1280 x 1024

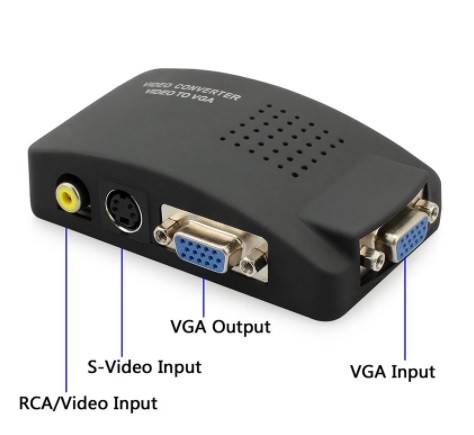

Inputs: 1 x Composite (phonics) 1 x S-Video
Outputs: 1 x DB15HD female connector
Supply: 230 VAC mains adapter 5VDC, 1A included
Temperature: 0º ~ 40°C. Humidity 20 ~ 60% (non-condensing)
