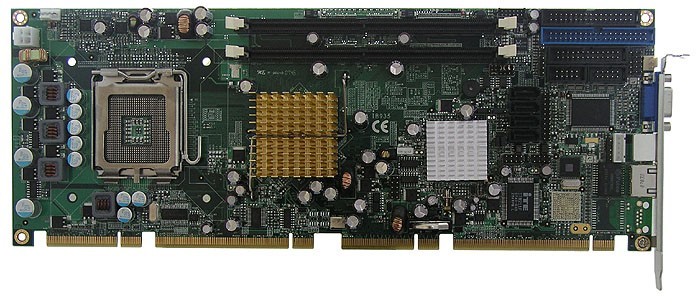

Older CPU card Socket LGA775 CPU PICMG 1.3 Q35 Chipset, WINDOWS 2000, XP, VISTA, Windows 7 support IB935
5,709.00 kr
Ekskl. moms
Q35 chipset Core 2 Quad/ CORE 2 DUO / Celeron 400 sequence processor (conroe-L)
LGA 775 FSB 800 / 1066 / 1333 MHz
2 x Gigabit Lan, (Intel 82566DM, Intel 82574L)
VGA (GMA 3100), CRT support
SATA II
Parallel port LPT
2 x COM
4X USB 2.0
OS SUPPORT: Windows 2000, Windows XP, Windows VISTA, Windows 7.
Quantity
Physically in stock
Ask a question
close
Specifications
| CPU | Intel Core 2 Quad/Duo, Celeron 400 serien. LGA775 sokkel |
|---|---|
| Chipset | Intel Q35 / ICH9 |
| BIOS | 4 Mbit Award flash BIOS med ACPI understøttelse |
| Digital I/O | 4 indgange og 4 udgange (TTL) |
| Drev | 1 x ATA/66/100/133, 4 x SATA300 |
| Driftstemperatur | 0 - 60o C ved 10 – 90 % ikke-kondenserende luftfugtighed |
| FSB | 800/1066/1333 MHz |
| Grafik | Integreret Intel GMA3100 (1 x DB15HDF VGA-stik) |
| Hukommelse | 2 x 240-pin (dual channel) DDR2 maks. 4 GB, PC2-5400/6400 |
| Interface | 1 x FDD diskettecontroller til to 3½” eller 5¼” drev (maks. 2,88 MB) |
| Lyd | ICH9 AC97 Codec |
| Netværk | 1 x 1000 Mbit Intel 82566DM med RJ45-stik, 1 x 1000 Mbit Intel 82574L med RJ45 stik |
| Overvågning | System/CPU - temperatur og - spænding |
| Porte | 1 x RS232 (DB9M), 1 x RS232/422/485 (DB9M) 1 x SPP/EPP/ECP, bi-direktionel, med 1 x DB25F-stik |
| RAID niveau | PICMG 1.3 (PCI Express) |
| Strømforsyning | Via PICMG bussen og ATX 12V stik (Se kapitel 19 for strømforsyninger) |
| Tastatur/mus | 2 x mini-DIN6 PS/2 via Y-splitterkabel (medfølger) |
| USB | 4 x USB 2.0 (Hi-Speed) |
| Watchdog | Op til 255 sekunders timeout |
PICMG 1.3 CPU Card with SATA-300 and 2 x Gigabit
CPU Cards Suitable for Older Software Versions.
This CPU Card Supports Windows 2000, Windows XP, Windows Vista, Windows 7.
We offer a complete solution where CPU cards are received in the PC cabinet ready for use.
Contact our sales department regarding. opportunities and prices.
