SMS GSM Alarm 2 digital inputs, 2 analog inputs 2 digital outputs 4G with app for iOS and Android

GSM Alarm with 2xDin, 2xain and 2XDO. Alarms for mobile phone via SMS or Call, APP, 4G

Name: GSM Alarm with 2xDin, 2xain and 2XDO. Alarms for mobile phone via SMS or Call, APP, 4G
Brand: Danbit A/S
SKU: GSM-ALARM270
Price: 2287 DKK
Availability: InStock

Product number GSM-ALARM270Category El-magnets / Electronic locks / Alarms / Access Systems

2,287.00 kr

Ekskl. moms

2 x digital inputs NC / NO type
2 x analog inputs. 12 Bit resolution, 0-5V, 4-20mA or 0 - 20mA
2 x Relay outputs 5A / 30VDC, 5A / 250VAC
1 x USB port
GSM 3G 4G
9-36VDC (12V / 300mA)
Backup Battery 3.7V 1200mAh
Operating temperature -10- + 70 ° C
Custom SMS Alarm Messages
APP for iOS and Android

Quantity

Physically in stock

Get Volume Offer DOWNLOADS

Ask a question

Specifications

Dimensioner	168 x 113 x 32.3mm
Driftstemperatur	-10 to +70 °C
Frekvens	GSM 850/900/1800/1900Mhz or 3G UMTS/HSDPA
Indgang	2 Analog Inputs. 12 bit resolution, 0-5V or 0-20mA or 4-20mA; 2 x Digital input, NC/NO/Edge/Level type, Can be used as Pulse Counters;
Input	DC 12V/1.5A Range 9-36VDC
Relæ	2 X Rated: 5A/30VDC,5A/250VAC
Strømforbrug	Standby:12V/70mA; Working Max.: 12V/300mA
Weight	1000 g

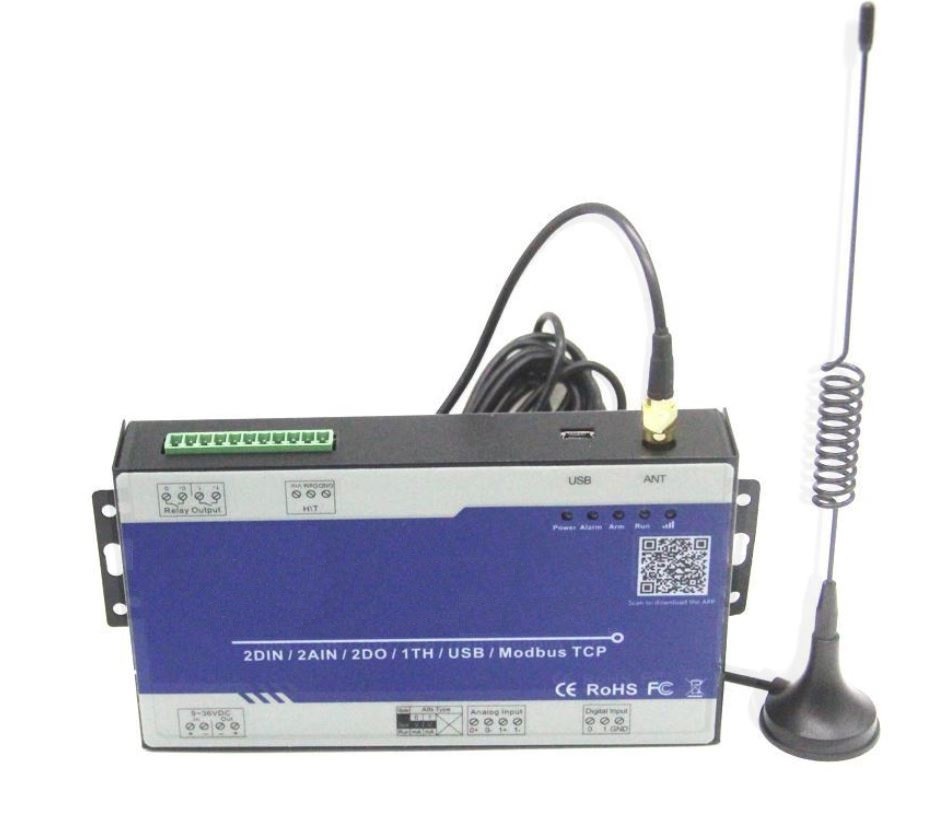

The GSM-ALARM270 is a remote terminal unit, special for remote monitoring and remote control. The RTU integrated industrial GPRS Module inside, it supports voice, SMS, and GPRS communications. Moreover, it integrated USB port for programming by user friendly PC software and upgrade firmware.
