Electronic lock, for mounting on cupboards and doors, holding force approx. 100kg, 12-28VDC
788.00 kr
Ekskl. moms

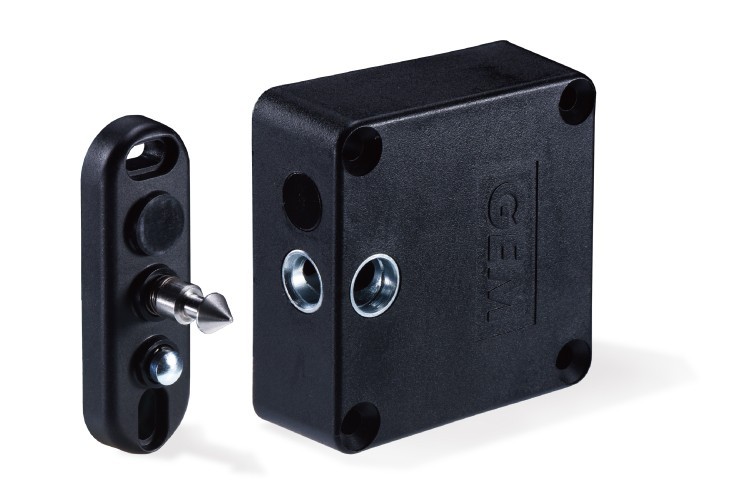

Compact motorized lock with separate pawl
Locked without tension
Releases the locking pawl in case of short-term tension
The pal part has a push-out (5-8mm)
Adjustable delay on relocking 2 to 5 seconds

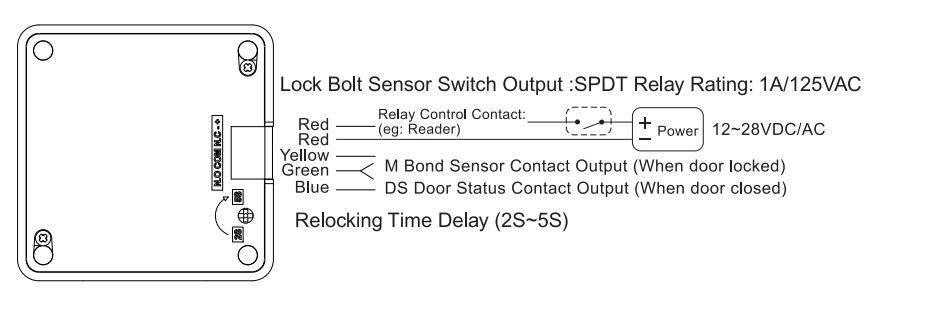

2 lock inputs

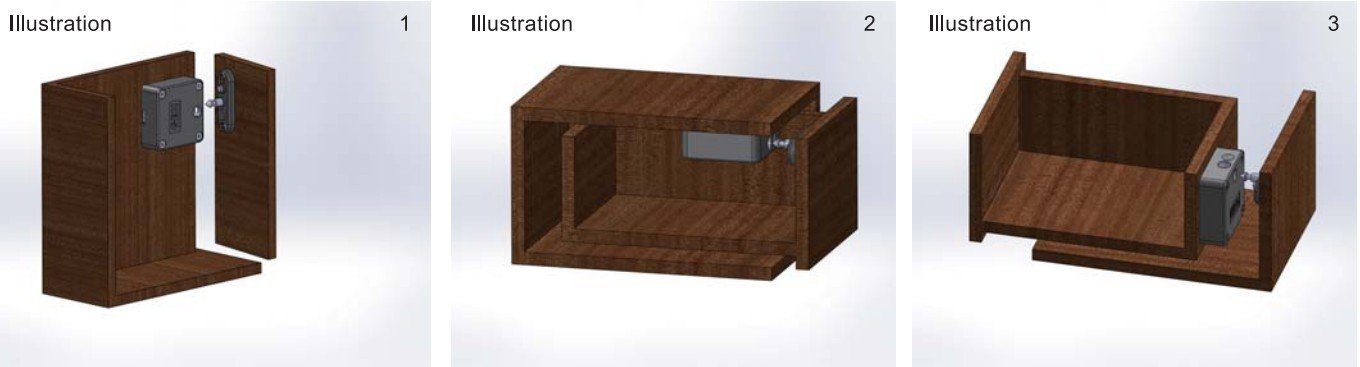

Can be mounted in 2 different ways
Control voltage - 12 - 28VDC / VAC, max. 165mA
Dimensions: 60 x 60 x 22mm
Quantity
Physically in stock
Ask a question
close
Specifications
| Andet | Current draw: Pull in: 165mA @ 12Vdc Hold: 69mA @ 12Vdc |
|---|---|
| Dimensioner | Lock: 60mm (L) x 60mm (W) x 22mm(D) Keeper: 60mm(L) x 20MM(W) x 26.3mm(D) |
| Driftstemperatur | -10°C to 45°C |
LOCK-CABINET is motorized cabinet lock in compact size - 60 x 60 x 22mm. There is a spring-activated scoop out when the pawl is released.
The lock is very suitable for small doors where space is tight.
Plastic cabinet.
