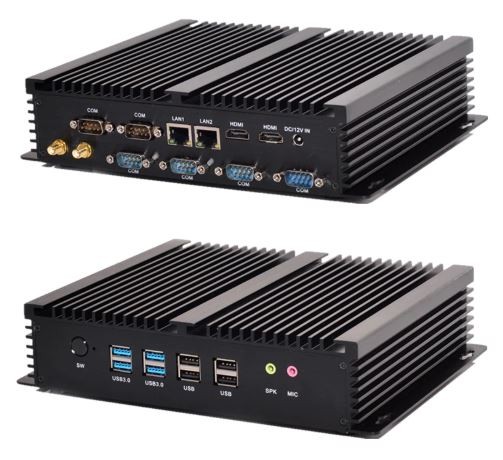

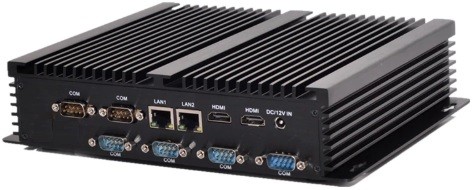

Embedded Fanless PC Celeron 2x HDMI, 6 RS232, 8 x USB Windows Windows 7 / Windows 8 / Windows 10 / Linux
Call +45 56 66 20 20 for price
Ekskl. moms
Fanless
Intel Celeron 2955U
Chipset Intel QS77 Express Chipset High Speed
RAM: 1 x SO-DIMM DDR3L 1333/1600, 1333/1600 LPDDR3 MAX. 8GB
Intel® HD Graphics 4400 1920 x 1080 HD
2 x RJ45 Gbit Intel
2 x HDMI
4x USB 3.0
4 x USB3.0
4 x USB 2.0
6 x RS232
WIFI: OPTION!
Supply DC12
234 * 150 * 50MM
Support: Windows 7 / Windows 8 / Windows 10 / Linux
Quantity
Physically in stock
Ask a question
close
Specifications
| CPU | Intel Celeron 2955U |
|---|---|
| Chipset | Intel QS77 Express High Speed Chipset |
| Andet | PXE boot |
| BIOS | AMI BIOS, ACPI supported, Support call on function automatically |
| Dimensioner | 234*150*50 mm |
| Driftstemperatur | 0-50 Centigrade |
| Ethernet | 2xRJ45 Gbit Intel 82583V/82574L PCI-E Gigabit Ethernet NIC 10/100/1000 BaseT LAN |
| Forsyning | 12vdc JACK connector 1 inner diameter 2.5mm,external diameter 5.5mm |
| Grafik | Intel® HD Graphics 4400 |
| Hukommelse | 1 x SO-DIMM DDR3L Slot Support 2GB/4GB/8GB DDR3L 1333/1600, LPDDR3 1333/1600 |
| Luftfugtighed | 10%-85% |
| Lyd | ALC892 HIFI sound chip, 6-channel |
| Compositions | Aluminium housing |
| Montering | 4 Mounting holes on case |
| Msata | 1 x M-SATA3.0 slot for MSATA SSD, support 6Gb/s |
| OS SUPPORT | Windows 7/Windows 8/Windows 10/Linux |
| Porte | 6 x RS232 |
| SATA | 1 x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s |
| SIM kort | 1 x embedded SIM card slot onboard(optional) |
| Strømforbrug | TDP 15W |
| Udgange | VGA + HDMI DUAL support |
| USB | 4* USB 3.0 ports; 4* USB 2.0 ports |
| Weight | 1.8KG |
| WiFi/WLAN | OPTION ! not included |
Compact industrial fanless PC with i5 processor. We offer to provide the complete SSD, RAM and OS installleret.
We offer other models.
