7 "Panel PC with touch for Windows 10 32-bit, 9-36Vdc, Intel Atom Z8350, 4xCOM,
Call +45 56 66 20 20 for price
Ekskl. moms
7" LED backlight 1280 * 800 resolution, 16:10, 400cd / ㎡, 800: 1 Contrast
Multipoint Capacitive Touch
Intel Atom Z8350 1.44GHz
2GB DDR3 LP
2 x 100M (RJ45), (OPTION: LAN Port2)
4x RS232 (optional RS485 / RS422)
2x USB 2.0
HDMI 1.4 Output
Panel Mount, VESA 75
FCC / CE
OS Support: Windows 10 32bit
Option: (WiFi, Bluetooth, 3G / 4G WIFI)
DC 9 - 36V
Quantity
Ask a question
close
Specifications
| CPU | Intel Atom Z8350 1.44GHz |
|---|---|
| bluetooth | option: 4.0 2402MHz~2480MHz |

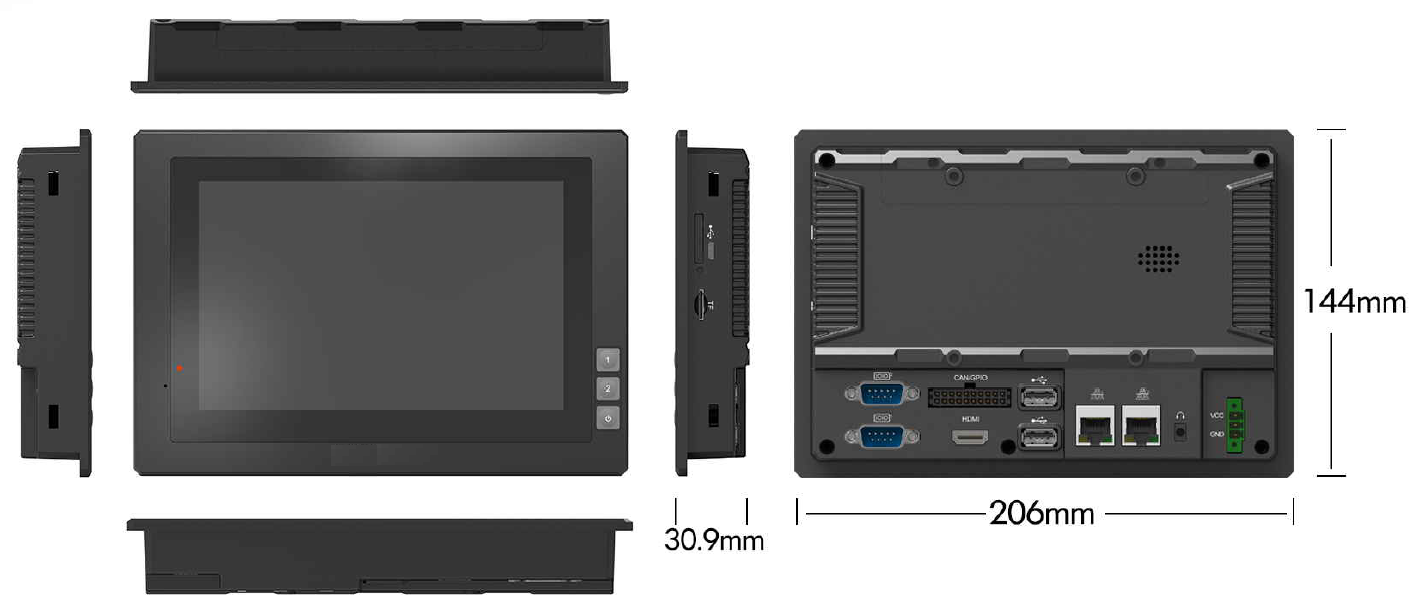

| Dimensioner | 206 x 144 x 30.9 mm |
| Driftstemperatur | -20 ~ 60ºC |
| Ethernet | Ethernet 100m (RJ45), (OPTION: LAN port POE) |
| Forsyning | DC 9~36V |
| GPIO | GPIO input x 4, GPIO output x 6 |
| Grafik | Intel HD Graphic 400 |
| Hukommelse | 2GB LP DDR3 |
| LCD | 7" 400cd/m; 16:10, 1280x800, |
| Lyd | 1x ear Phone slot, 1 x speaker (back), Speaker 1 W |
| OS SUPPORT | Android 5.1.1 / Linux Debian 8.0 |
| Porte | RS232×4 or RS232×3+RS485×1 or RS232×2+RS422×1+RS485×1 |
| SIM kort | 4G/ 3G/ 2G 1.8v / 2.95v, mini SIM |
| Strømforbrug | Below 10W |
| Udgange | HDMI 1.4 Ouput |
| USB | USB Host 2.0 × 1 / 3.0 × 1 |
| Weight | 790g |
| WiFi/WLAN | Option: WiFi 802.11a/b/g/n 2.4GHz |

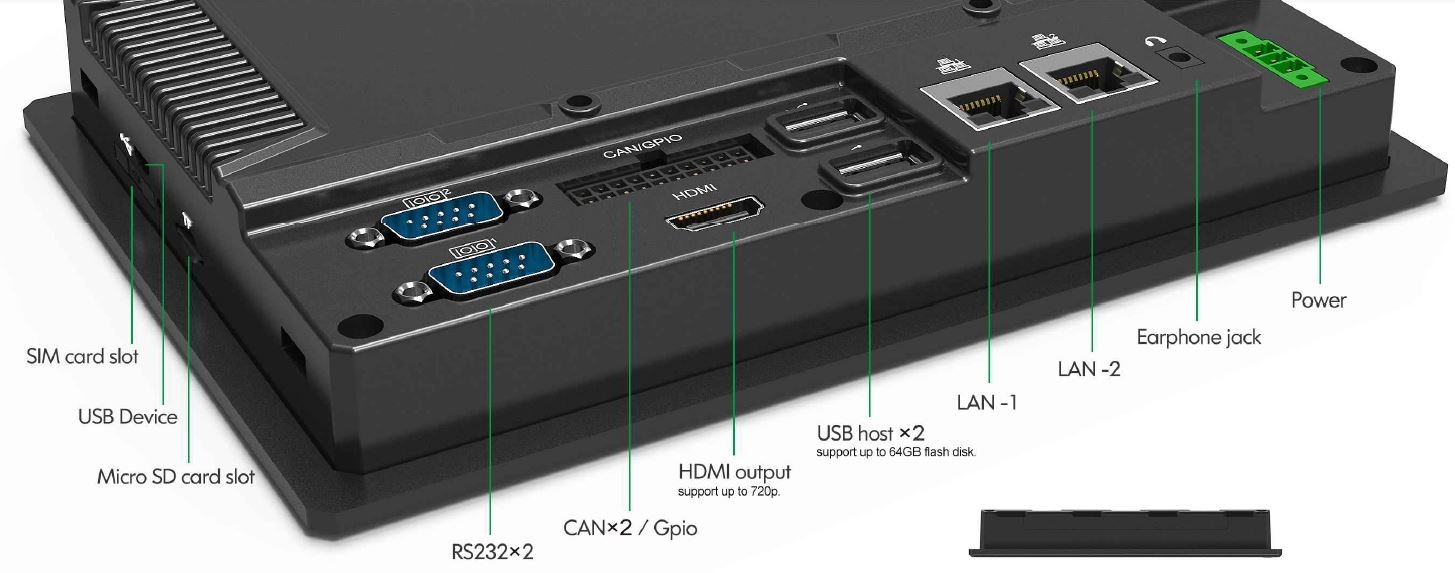

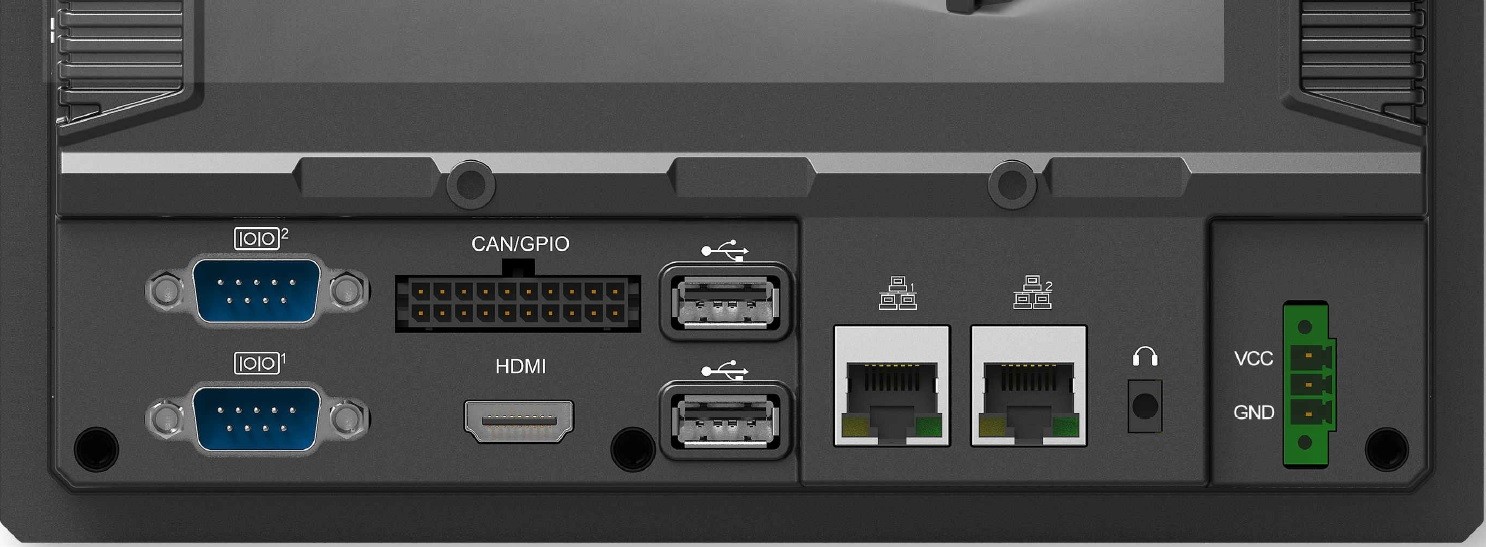

7” smart and rugged industrial PC , expansions rich function like WIFI, 4G LTE, Bluetooth for wireless communication; HDMI Output, USB Host and LAN ports for various real-time transmission; Besides, it configured with standard professional interface: RS232 / GPIO ports for different industrial applications.
