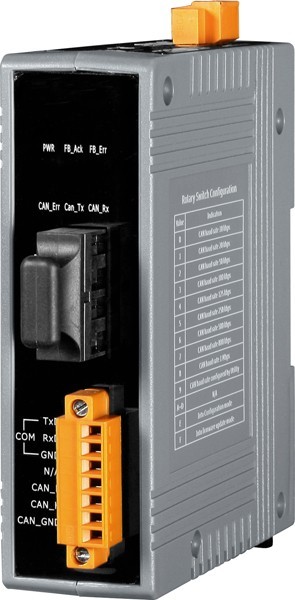

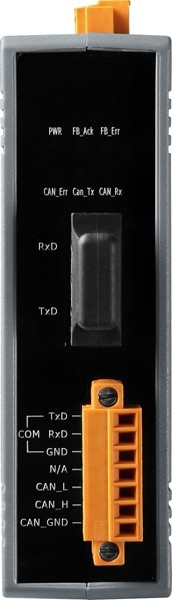

CAN bus to Single Mode Fiber. CAN 2.0A, CAN 2.0B. Manual CAN baud rate sw - 10K -1Mbps. 10 - 30VDC
2,759.00 kr
Ekskl. moms
Baud rate (bps): 10K - 1M
Terminator Resistor: 120 Ohms
3000VDC DC-to-DC isolation 2500Vrms for photo-couple
ISO 11898-2, CAN 2.0A and CAN 2.0 B
SC single mode, 1310 nm
RS-232 COM1
+10 - + 30VDC unregulated
-25 - + 75 degree driftemperatur
10-90% humidity
Quantity
Physically in stock
Ask a question
close
Specifications
| Baudrate | 10k - 1M (bps) |
|---|---|
| Driftstemperatur | -25 - +75℃ |
| Fiber | SC single mode, 1310 nm |
| Forsyning | +10 ~ +30VDC ureguleret |
| Isolation | 3000VDC DC-til-DC isolation, 2500Vrms til photo-couple |
| Luftfugtighed | 10% ~ 90% |
| Protokol | CAN bus |
| Stik | DB 9, SC single mode |
| Terminering | 120 ohm termineringsmodstand |
