AI embedded PC supporting 130 Nvidia RTX GPU,12/13th Gen CPU, USB 3.2, M.2, RS232/422/485, NVMe SSD, RAID
Call +45 56 66 20 20 for price
Ekskl. moms
Supports Intel® 13th/12th-Gen Core™ up to 16C/ 24T 35W/ 65W CPU
RAM Max. 64GB DDR5

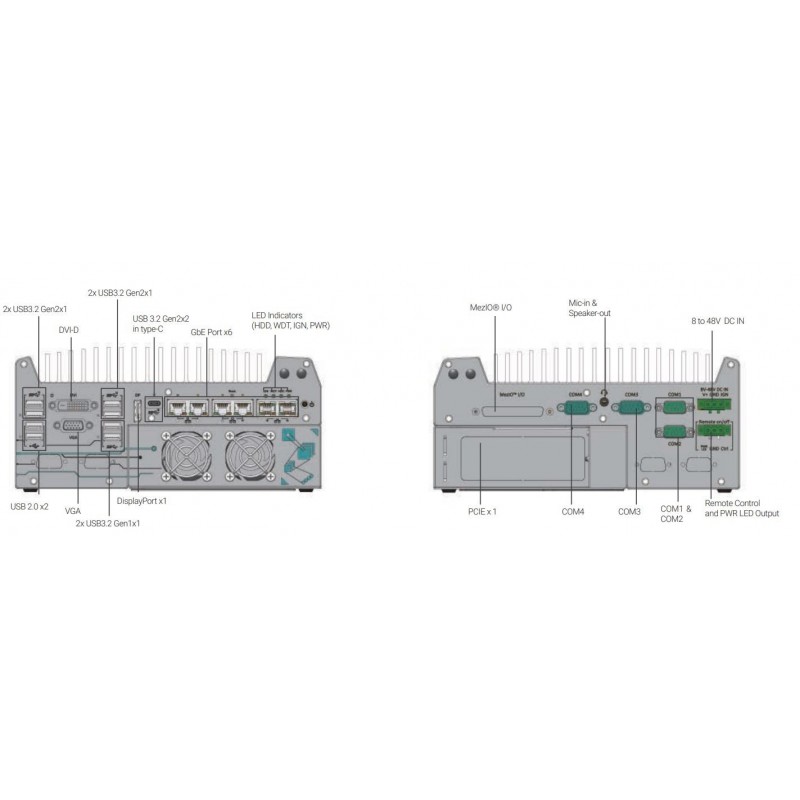

1 x VGA 1920x1200, 1 x DVI-D 1920x1200, 1xDP 4096x2304
Support NVIDIA® RTX series GPU card up to 130W TDP
4 x COM (2xRS232/422/485, 2xRS232)
5x 2.5GbE and 1xGbE with optional PoE+ (ports 3~6)
1x USB 3.2 Gen2x2 type-C
6x USB 3.2 type-A ports
M.2 2280 M key socket (Gen4x4) supporting NVMe SSD
Accommodates two 2.5" SATA HDD/ SSD with RAID 0/ 1 support
Interface for add-on expansion
-25°C to 60°C wide temperature rugged operation
8 to 48V DC input
CE/FCC Class A, according to EN 55032 & EN 55035

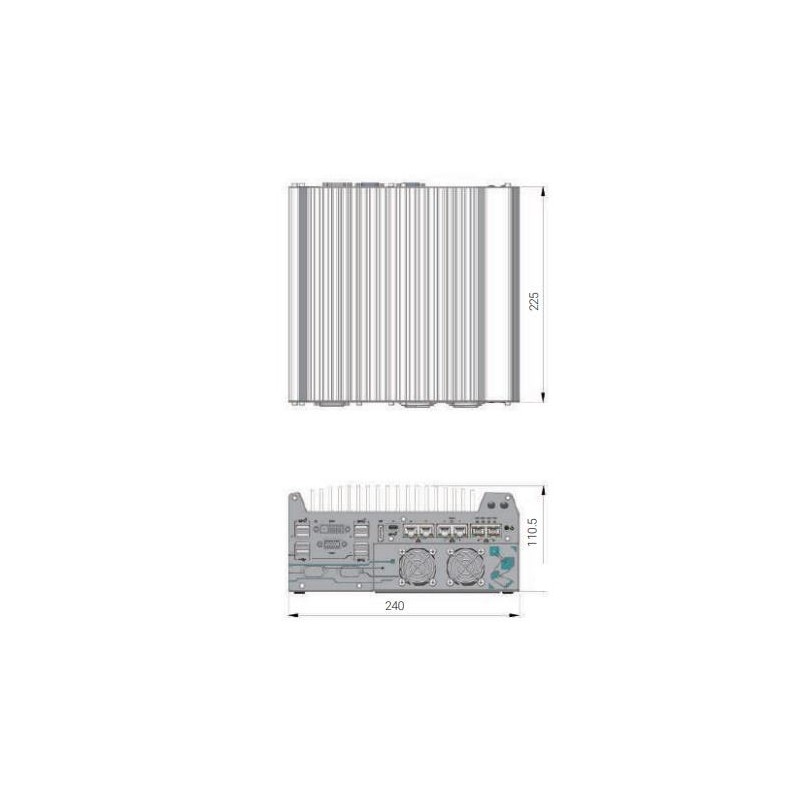

240 (w) x 225 (d) x 110.5 (H) mm
Quantity
Ask a question
close
Specifications
| CPU | i9; i7; i5; i3; |
|---|---|
| Chipset | Q670E |
| Andet | 1 |
| Approval | Yes |
| Chok/Vibration | MIL-STD-810G |
| Driftstemperatur | -25° til +60° C |
| Ethernet | 2.5G; 1000 |
| Forsyning | 8~48Vdc |
| Grafik | VGA; DVI-D; DP |
| Lyd | 1 |
| M.2 | 1 |
| Montering | Wall |
| mPCIe | 1 |
| PoE | PoE+ |
| RAID niveau | 0/1 |
| SIM kort | 1 |
| TPM | 2.0 |
| USB | USB 3.2; USB 2.0 |
| AMT | 1 |
| PCI Express | 1 |
| Dimension | 240 mm (W) x 225 mm (D) x 110.5 mm (H) |
| Serial Porte | 4 |
| RAM | 64Gb max. |

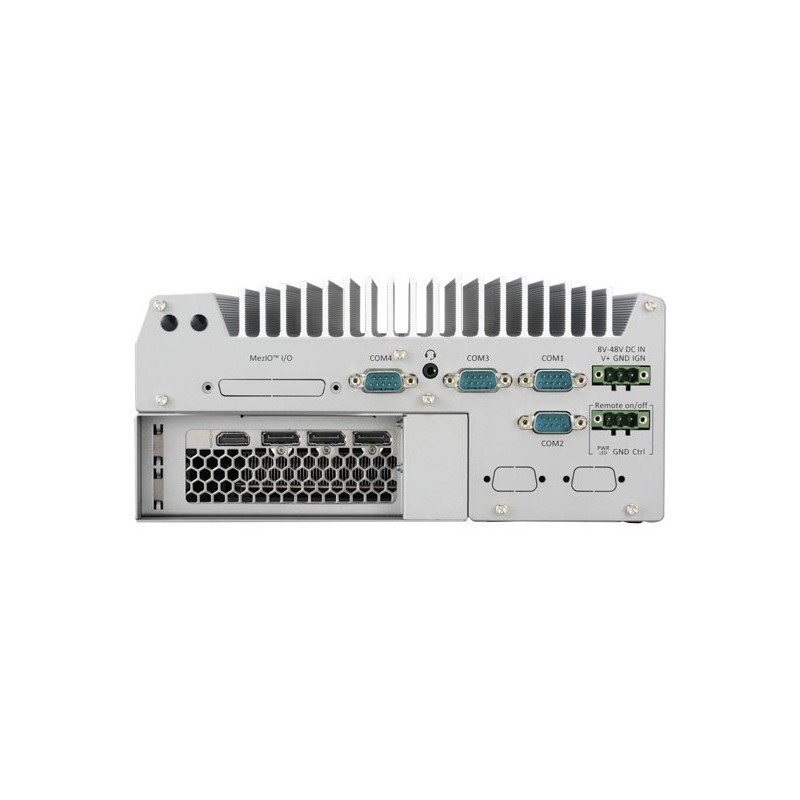

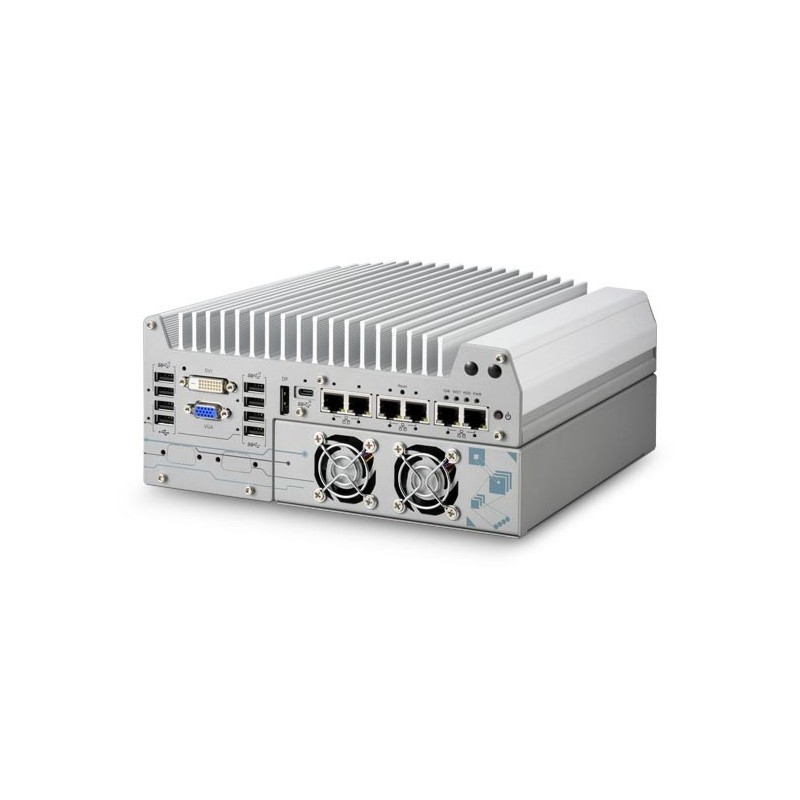

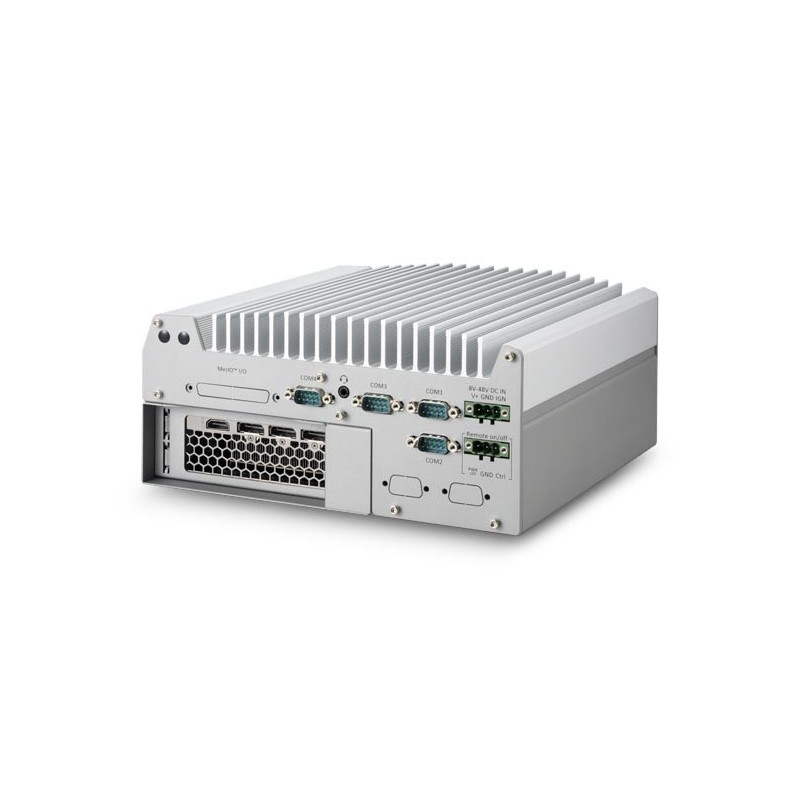

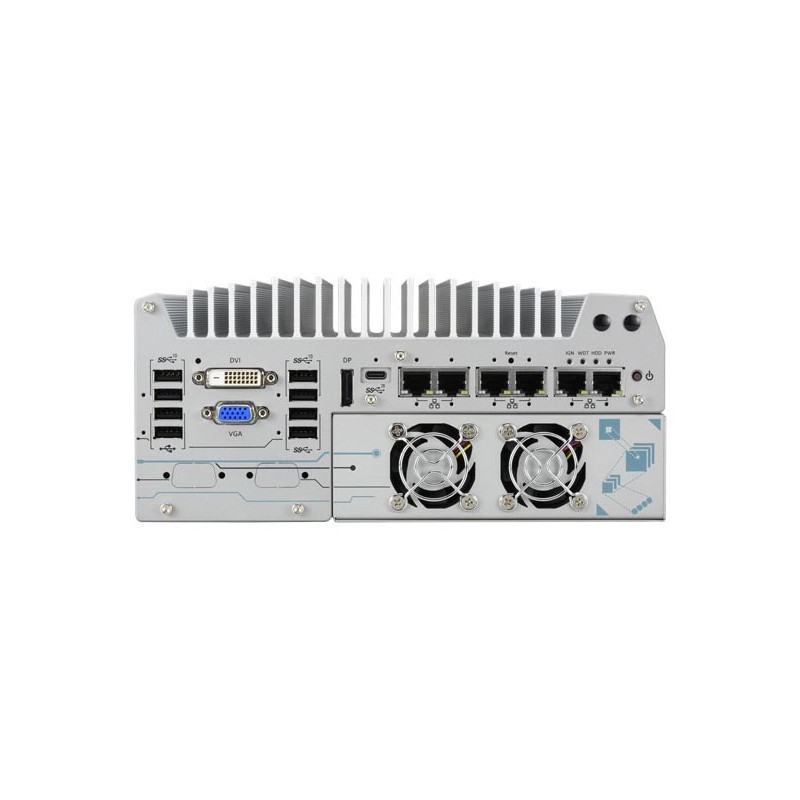

EPC-13X5E9U4SVDDP is a robust AI computer that delivers superior CPU and GPU performance by leveraging Intel's 13th/12th Gen platform and NVIDIA's 130W RTX GPU card.
Benefiting from the advantages of Intel's 13th/12th Gen processors, it can offer up to 24 cores/32 threads with a performance improvement of up to 2 times compared to previous Intel 11th/10th Gen platforms. The latest NVIDIA® 130W RTX GPU contributes nearly 9 TFLOPS of FP32 performance to drive real-time AI inference applications involving multiple cameras, such as production line vision inspection, intelligent video analysis for monitoring or ITS, or autonomous mobile robots (AMR).
EPC-13X5E9U4SVDDP features a proven thermal design to ensure reliable system operation from -25°C to 60°C. It incorporates a passive cooling solution for the motherboard and a divided patented ventilation design for the 130W GPU card. Supporting six GigE cameras (or IP cameras) and six USB3 cameras, EPC-13X5E9U4SVDDP is ideal for various vision-based AI application deployments. It also offers flexible data storage options, including an M.2 2280 Gen4x4 NVMe that provides extreme read/write speeds of up to 7000 MB/s, as well as two 2.5" SATA HDD/SSDs to expand storage capacity.
With performance enhancements and comprehensive I/O ports, EPC-13X5E9U4SVDDP is the perfect edge AI inference platform for industrial environments, ranging from factory automation and smart agriculture to autonomous machines.
| Processor | Supporting Intel® 13th-Gen Core™ CPU (LGA1700 socket, 65W/ 35W TDP) - Intel® Core™ i9-13900E/ i9-13900TE - Intel® Core™ i7-13700E/ i7-13700TE - Intel® Core™ i5-13500E/ i5-13400E/ i5-13500TE - Intel® Core™ i3-13100E/ i3-13100TE | Supporting Intel® 12th-Gen Alder Lake Core™ CPU (LGA1700 socket, 35W/ 65W TDP) - Intel® Core™ i9-12900E/ i9-12900TE - Intel® Core™ i7-12700E/ i7-12700TE - Intel® Core™ i5-12500E/ i5-12500TE - Intel® Core™ i3-12100E/ i3-12100TE - Intel® Pentium® G7400E/ G7400TE - Intel® Celeron® G6900E/ G6900TE |
|---|
