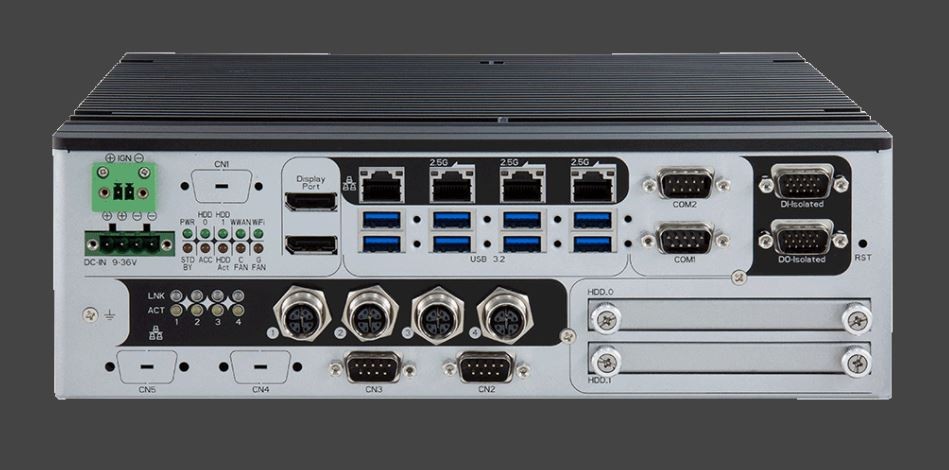

Intel® 12th / 13th Gen CoreTM Fanless Edge AI Computer supporting Nvidia® RTX-A2000 w/2x10G POEs
Call +45 56 66 20 20 for price
Ekskl. moms
Fanless design (embedded heat pipe cooling solution)
12/13 generation CoreTM i9/i7/i5/i3 processor (Alder Lake-S/Raptor Lake-S)
Up to 60W GPU MXM module expansion
802.3af (15.4W)/802.3at(25.5W) Gigabit PoE ports
DP x2 + HDMI x 1 and DVI x 1 (supports 4 independent displays)
On/off delay control / configurable ignition current control
Supports TPM 2.0 and Time-Sensitive Networking (TSN)
Two mPCIe for optional WiFi/3G/4G/GPS or I/O expansion supported
Front-accessible I/O
1 x M.2 B for storage or 5G/LTE +1 x M.2 E-key for WiFi/BT
1 x M.2 M for NVMe SSD
285x230x 90 mm (9.84" x11.50" x 3.54"), fanless 285x230x110 mm (9.84" x11.50" x 4.33"), w/ FAN
DC 9~36V input
CE, FCC Class A, E-mark
optional extras
Quantity
Ask a question
close
Specifications
| CPU | i9/i7/i5/i3 |
|---|---|
| Chipset | R680E |
| Andet | 1 |
| Approval | CE, FCC Class A, E mark |
| Chok/Vibration | IEC 60068-2-64, IEC60068-2-27 |
| Digital I/O | 8 |
| Driftstemperatur | -20 ~ 50°C (-4 ~122°F), ambient w/ air flow -20 ~ 60°C (-4 ~140°F), ambient w/ air flow ( w / External SMART FAN kit ) |
| DVI | 1 |
| Ethernet | 8 |
| Forsyning | DC 9~36V |
| Grafik | Integrated Intel® HD Graphics 770 |
| HDMI | 1 |
| Luftfugtighed | 10 ~ 95% @ 60°C |
| Lyd | 1 |
| M.2 | 2 |
| Materiale | Amininum |
| Montering | Wall-mount |
| mPCIe | 2 |
| OS SUPPORT | Windows 10 IOT Enterprise 64-bit; Linux ( Ubuntu 20.04 ) |
| PoE | 8 |
| SATA | 2 |
| Storage | 2x2.5; 2x m.2; |
| Strømforbrug | Max. 180W |
| TPM | 1 |
| USB | 8 |
| Weight | 5.83Kg |
| Watchdog | 1 |
| Dimension | (W x D x H) 285x230x 90mm (9.84” x11.50” x 3.54”),Fanless 285x230x110mm (9.84” x11.50” x 4.33”),w/ FAN |
| Serial Porte | 4 |
| RAM | 64gb |
