EDID GHOST TIL HDMI
450.00 kr
Ekskl. moms
Emulates screens information
Max resolution: 1920 x 1080, 2048 x 1152
With Pass Through HDMI (F) and HDMI (F)
5V DC (via USB)
Dimensions 22 x 51 x 80 mm
Quantity
Physically in stock
Ask a question
close
Specifications
| Andet | Optagelse af EDID og valg af opløsning vælges vha. drejekontakt med 16 positioner. |
|---|---|
| Dimensioner | 22 x 51 x 80 mm |
| Hukommelse | Gemmer optaget EDID af skærm i lokal NVRAM |
| Indikatorer og kontakter | 1 x 3-farvet LED (Grøn, Rød, Hvid) |
| Opløsning | 1024 x 768, 1280 x 720, 1280 x 1024, 1366 x 768, 1440 x 900, 1600 x 900, 1600 x 1200, 1680 x 1050, 1920 x 1080, 1920 x 1200, 1920 x 1440 og 2048 x 1152 punkter |
| Stik | Indgang: 1 x HDMI hun, Udgang: 1 x HDMI hun |
| Strømforsyning | Strømforsynes af 5VDC. 1,5 meter strømkabel med USB A til 2,5/5,5 mm DC stik medfølger |

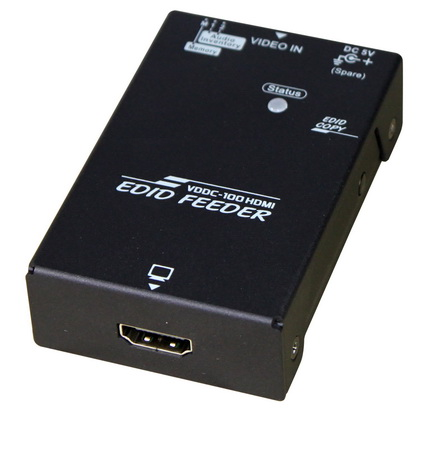

EDID-GHOST is an EDID (Extended Display Identification Data) emulator of a display's EDID information.

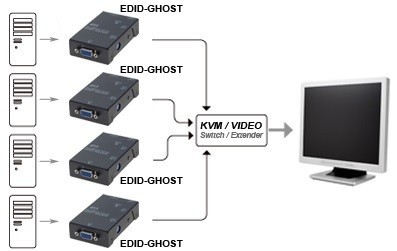

EDID-GHOST emulates the screen's information to the PC when the EDID signal cannot be sent through from the screen if, for example, a video extender or KVM switch is used.
To load EDID data from the screen into EDID-GHOST, connect it directly to the screen, then press the "EDID Copy" button. If there is no EDID available on the screen, EDID-GHOST then has Default EDID, which is then used to emulate the desired resolution, which is selected using switch.
EDID : Extended Display Identification Data is a stream of data that many monitors send serially with information about the screen's resolution, aspect ratio, speed and much more.
