12.1" TFT display 360 Degrees IP66 tight, VGA, HDMI, 304 Steel enclosure option with 1000 nits for sunlight
Call +45 56 66 20 20 for price
Ekskl. moms

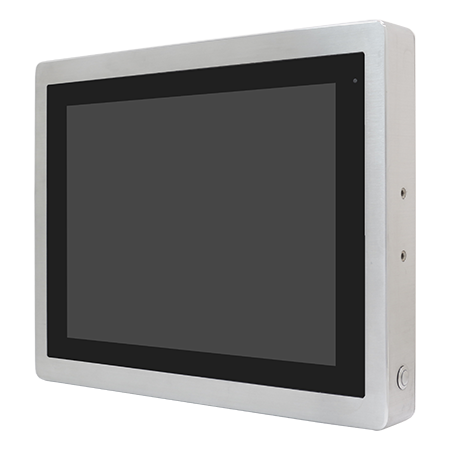

12.1” Stainless Steel Display
standard 450/500 nits OPTION: 1000nits
Oprtion: Optical Bonding for UV protection
True Flat Front Bezel Design and Grade 304 Stainless Steel Enclosure
(Grade 316 for Option)

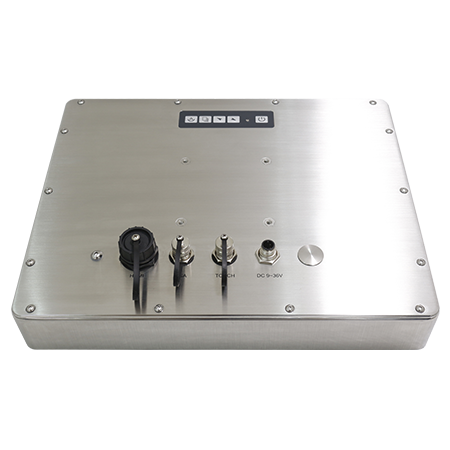

IP66/IP69K Rated with M12 Connectors
Option! Resistive Touch, Projected Capacitive Touch, and Glass
Touch Interface USB
Touch on/off Button on the Side Edge for Hygienic Cleaning
VESA mount 75x75, OPTION: Yoke mount
0~50°C / -20~60°C (option)
Power input 9~36Vdc (1xM12 3-pin Connector) 8W/12W (high nits display)
Size 335x365x53mm
Quantity
Ask a question
close
Specifications
| Antal farver | from standard 262k/16.2M |
|---|---|
| Approval | CE/FCC class A |
| Betragtningsvinkel | depens of display! 178(H)x178(H), 160(H)x140(V) |
| Dimensioner | 335x265x53mm |
| Driftstemperatur | 0~50°C / -20~60°C (option) |
| Effekt | Depens on TFT selection max 12W |
| Forsyning | 9~36VDC |
| Grafik | VGA, HDMI |
| IP-Tæthed | IP66/ip68K |
| LCD | 12.1" 800x600 |
| Lyd | 1x2W IP65 speaker (option) |
| Compositions | 304 Stainless Stell (optional 316 steel) |
| Opløsning | Standard 800x600 Option! 1024x768 |
| OSD | on rear side |
| Tilslutning | M12 for Power |
| Touch | USB, Select between Resistive, Projected, Glass |
| VESA standard | VESA 75x75 |
| Weight | 4.6Kg |
| Nits | 450 / 500 /1000nits needs to be ordered! |
Industriel 12.1" 360 grader indkapslet i stål kabinet med IP klassificering IP66/IP68K.
Kan leveres med display til sollys brug 1000nits. Ved brug i sollys skal der være filter til at besktte displayet.
Kontakt vores salgsafdeling vedr. muligheder og løsninger. Kan få i flere størrelser.
