Fanless Embedded PC 12/13/14th Gen Core™ i9/ i7/ i5/ i3, 4x GbE, 4x USB3.2, -25°C to 60°C
Call +45 56 66 20 20 for price
Ekskl. moms
Intel® 12/13/14 th-Gen Core™ 35W/ 65W LGA1700 CPU up to 16 cores/ 24 threads
4x GbE
4x USB3.2 Gen 1 with screw-lock
1x hot-swappable HDD tray
1x M.2 2280 Gen4 x4 NVMe
RAM non-ECC DDR4 3200 SDRAM (one SODIMM slot) MAX. 32GB
2x full-size mPCIe sockets
4-CH isolated DI and 4-CH isolated DO
VGA + DP
TPM 2.0 Support
Rugged, -25°C to 60°C fanless operation
212 x 165 x 63 mm low-profile design
1x 3-pin pluggable terminal block for 8-48V DC input with optional ignition power contro
Quantity
Ask a question
close
Specifications
| CPU | 12th-Gen Alder Lake Core™ CPU (LGA1700 socket, 35W/ 65W TDP) - i9-12900E/ i9-12900TE - i7-12700E/ i7-12700TE - i5-12500E/ i5-12500TE - i3-12100E/ i3-12100TE - G7400E/ G7400TE - Celeron® G6900E/ G6900TE |
|---|---|
| Chipset | Intel® 600 Series PCH platform controller hub |
| Approval | CE/FCC Class A, according to EN 55032 & EN 55035 |
| Chok/Vibration | Vibration Operating, MIL-STD-810G, Method 514.6, Category 4 Shock Operating, MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II |
| Digital I/O | Isolated DIO DIO 4-CH isolated DI and 4-CH isolated DO |
| Dimensioner | 212 mm (W) x 165 mm (D) x 63 mm (H) |
| Driftstemperatur | with 35W CPU -25°C ~ 60°C * with 65W CPU (installation of the optional fan kit is recommended) -25°C ~ 60°C */** SSD and RAM needs WT spec! 65W needs fan |
| Effekt | from 130watt to 146watt depens on CPU |
| Ethernet | 4x Gigabit Ethernet ports by 4x I210 |
| Forsyning | 1x 3-pin pluggable terminal block for 8-48V DC input with optional ignition power contro |
| Grafik | Integrated Intel® UHD Graphics 770 (32EU) |
| Hukommelse | Up to 32GB non-ECC DDR4 3200 SDRAM (one SODIMM slot) |
| Lyd | 1x 3.5 mm jack for mic-in and speaker-out |
| M.2 | 1x M.2 2230 E key socket for WiFi5, WiFi6 or Google edge TPU module |
| Montering | Wall-mount (standard) or DIN-rail mount (optional) |
| mPCIe | 2x full-size mini PCI Express sockets with internal SIM sockets |
| Porte | 1x software-programmable RS-232/422/485 ports (COM1) 3x 3-wire RS-232 ports (COM2/3/4) or 1x RS-422/485 port (COM2) |
| SSD | 1x hot-swappable 2.5" HDD/ SSD tray, 1x M.2 2280 M key socket (PCIe Gen4 x4) for NVMe SSD |
| TPM | Supports dTPM 2.0 |
| Udgange | 1x VGA output, supporting 1920 x 1200 resolution 1x DisplayPort, supporting 4096 x 2304 resolution |
| USB | 4x USB 3.2 Gen1 (5 Gbps) ports 2x USB 2.0 ports |
| Weight | 2.5KG |

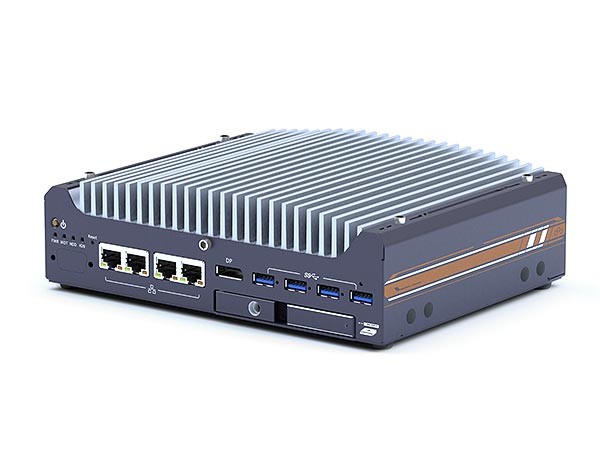

Is one of the most compact fanless embedded computers based on the Intel 12/13th -Gen Alder Lake platform. It measures only 212 x 165 x 63 mm and can fit into limited spaces such as in robotic arms and AMR applications. Despite its compact size, it does not compromise on performance. Built on Intel's 7nm process, Intel 12th generation processors have up to 16 cores/24 threads to deliver up to 1.8x the performance compared to previous Intel 10th or 11th generation platforms. It is a compact fanless embedded computer that can provide the ultimate computer for various industrial applications.

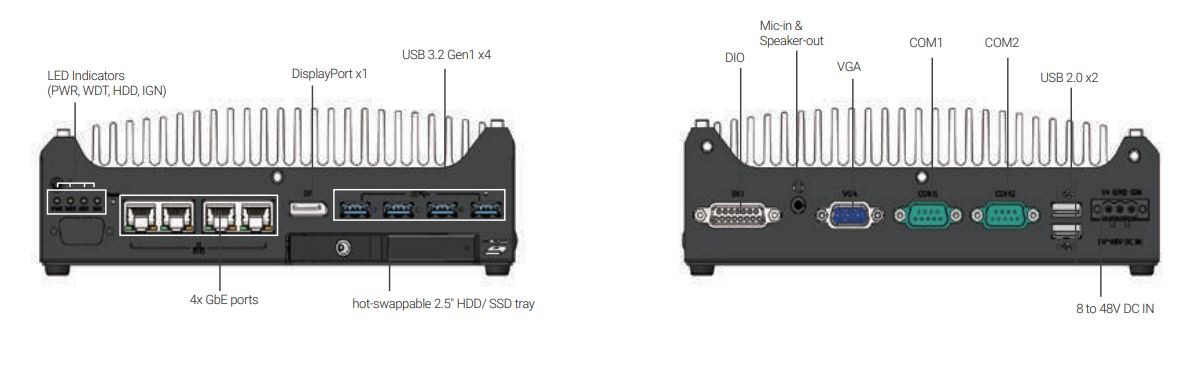

It has rich I/O features. It has four GbE and four USB3.2 Gen 1 ports for multiple camera connections. In addition, it has a Gen4 x4 M.2 NVMe slot for the latest NVMe SSDs, supporting read/write speeds of up to 7000 MB/s. It also has a second hot-swappable HDD tray to hot-swap the storage drive without powering down the system or removing the chassis. There are two mPCIe and one M.2 Key slot to install WiFi or 5G/4G for wireless communication needs. In addition, it is also equipped with 8x DIO, 2x COM ports and dual monitor outputs for your application needs.
Supporting Intel® 14th-Gen Core™ CPU (LGA1700 socket, 65W/ 35W TDP)
- Intel® Core™ i9-14900/ i9-14900T
- Intel® Core™ i7-14700/ i7-14700T
- Intel® Core™ i5-14500/ i5-14400/ i5-14500T
- Intel® Core™ i3-14100/ i3-14100T
Supporting Intel® 13th-Gen Core™ CPU[1] (LGA1700 socket, 65W/ 35W TDP)
- Intel® Core™ i9-13900E/ i9-13900TE
- Intel® Core™ i7-13700E/ i7-13700TE
- Intel® Core™ i5-13500E/ i5-13400E/ i5-13500TE
- Intel® Core™ i3-13100E/ i3-13100TE Support Intel® 12th-Gen Core™ CPU
(LGA1700 socket, 35W/ 65W TDP)
- Intel® Core™ i9-12900E/ i9-12900TE
- Intel® Core™ i7-12700E/ i7-12700TE
- Intel® Core™ i5-12500E/ i5-12500TE
- Intel® Core™ i3-12100E/ i3-12100TE
- Intel® Pentium® G7400E/ G7400TE
- Intel® Celeron® G6900E/ G6900TE
