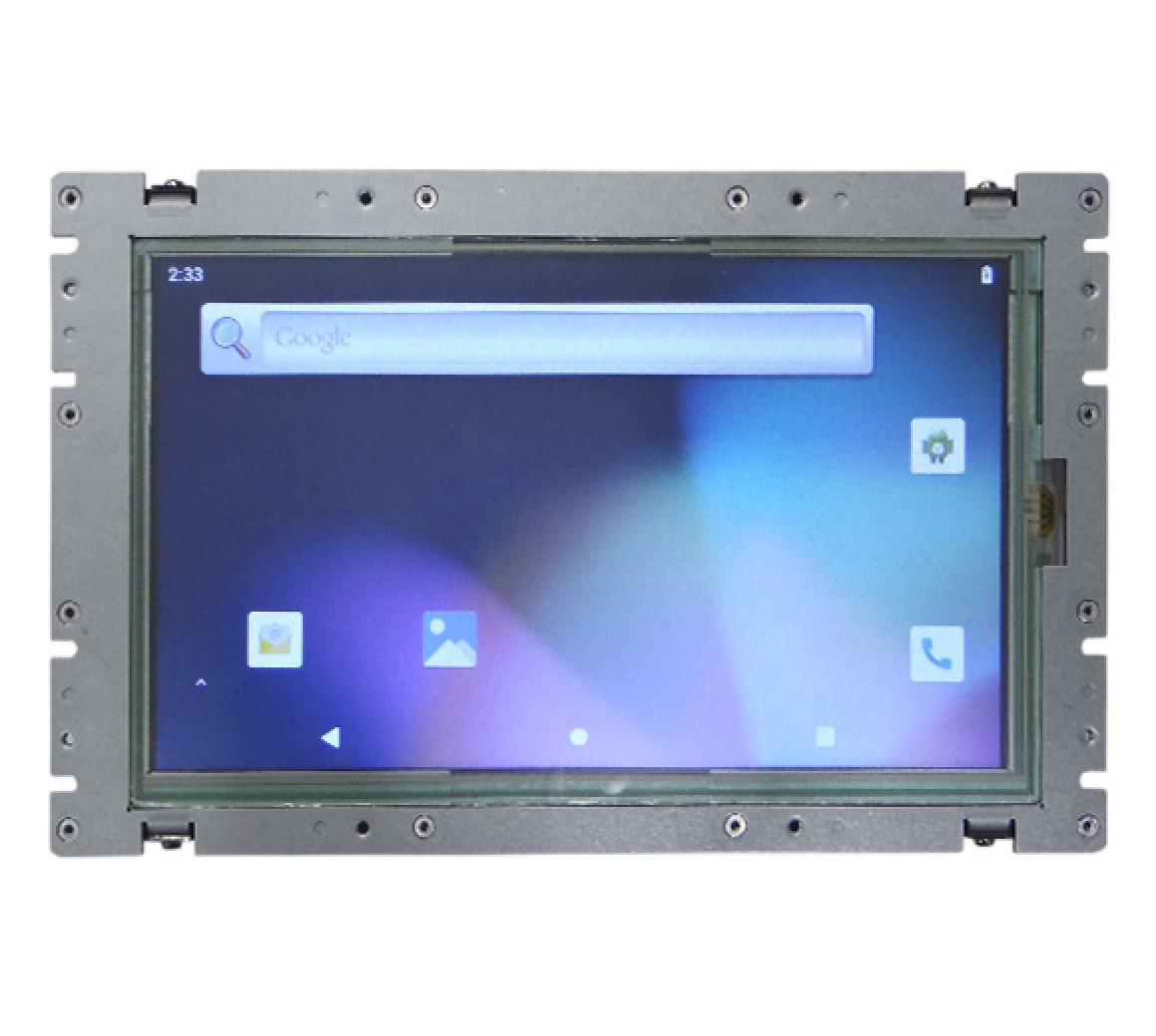

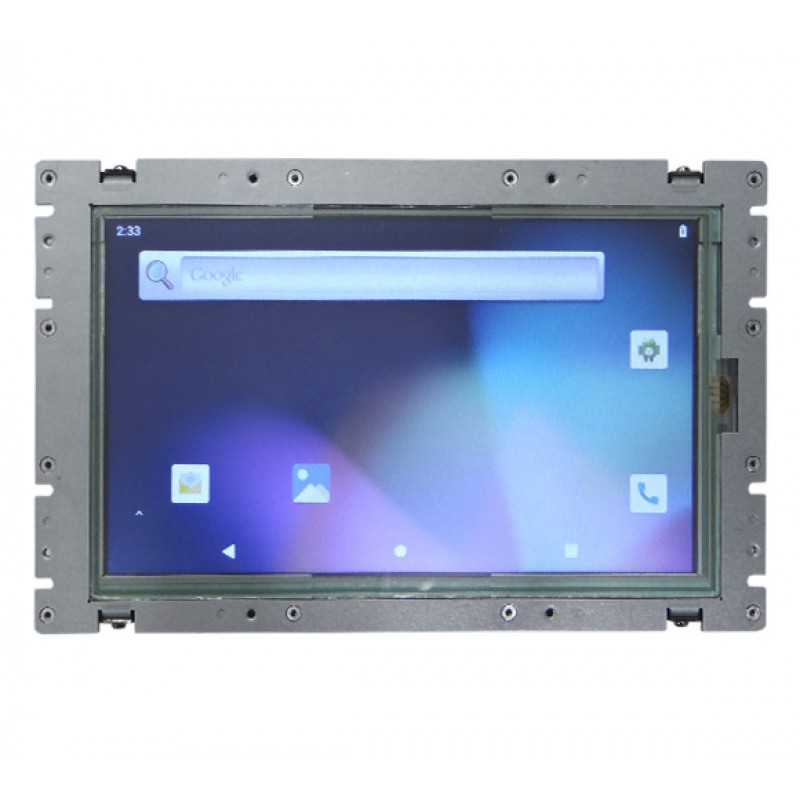

9" Panel PC VOX-090-TS-N8M
Call +45 56 66 20 20 for price
Ekskl. moms
9"
Resistive ARM/NXP i.MX8MMini 1.6GHz
2GB
RS-232 / RS-485
USB
GLAN
Audio
Mini PCIe
eMMC
microSD
Quantity
Ask a question
close
Specifications
| CPU | NXP i.MX8M Mini, Quad-core 1.6GHz ARM Cortex-A53 processor |
|---|---|
| Driftstemperatur | 0°C to +60°C / -20°C to +70°C (Optional) |
| Drivere | 16GB eMMC onboard & Micro SD Slot |
| Ethernet | Integrated 10/100/1000Mbps Ethernet |
| Lyd | WM8960 Stereo, Line-out |
| OS SUPPORT | Yocto Linux (Default) Android (Optional) |
| Udvidelser | MiniPCIe Slot with Micro SIM Card Holder |
| USB | USB2.0 x2 |
| WiFi/WLAN | WLAN & Bluetooth (Optional) |
| Resolution | 1024 x 600 |
| Serial Porte | RS232/485 x1 (COM1) |
| RAM | 2GB LPDDR4 Memory onboard |
| Panel size | 9" |
| brightness | 300 cd/m2 |
| Touch type | Analog Resistive Touch Panel |
| power consumption | Multi-Voltage +12~36VDC |
