PC ISA with ISA slot, for older OS with ISA slot. DOS6.22, Win CE 5.0 / 6.0, WIN 95, WIN 98, WIN XP pro. Windows 2000 support
Call +45 56 66 20 20 for price
Ekskl. moms
PC WINDOWS 2000 XP, WIN 95, WIN 98, DOS
PC with ISA slot (up to 5 available ISA slots depending on configuration)
Power supply 400 Watts
LPT
RS232
256MB RAM
4GB flash drive

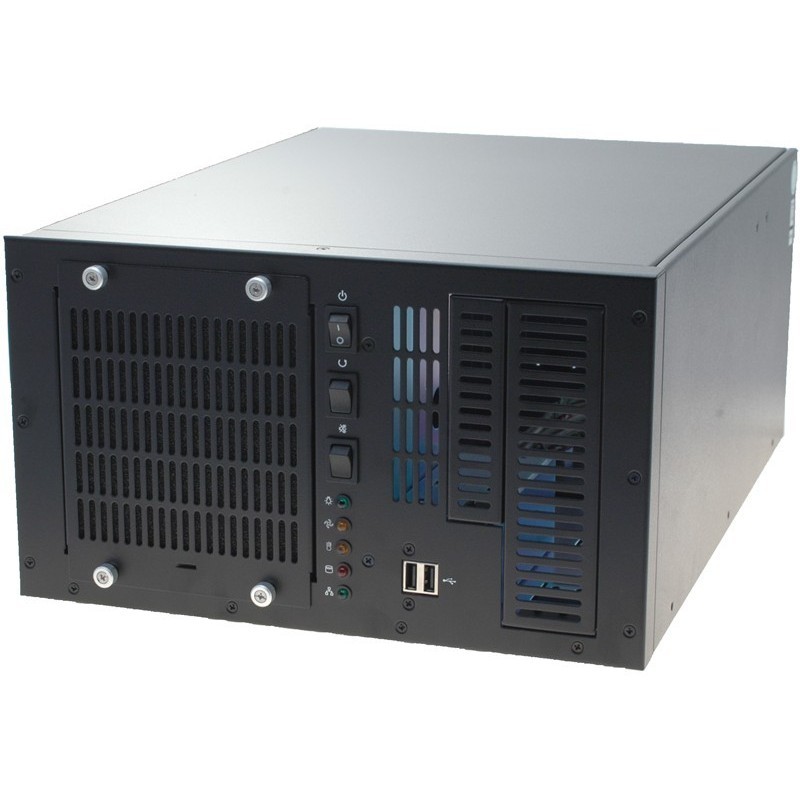

PHOTO IS MODEL!
CAN BE DELIVERED WITH PCI Contact sales!
Quantity
Ask a question
close
Specifications
| CPU | DM&P Vortex86DX 800 MHz. Kan neddrosles til 100 MHz |
|---|---|
| BIOS | AMI BIOS |
| Digital I/O | 16bit GPIO |
| Drev | 1 x ultraDMA100 ide kanal. 44bens stik til 1 IDE enhed 3½” |
| Driftstemperatur | 0°C - 40°C (5-90% ikke-kondenserende) |
| Grafik | Integreret XGI Volari Z9s 32 MB onboard RAM med DB15HDF VGA-stik. Max. opløsning 1280x1024 |
| Hukommelse | Monteret med 256 MB DDR2-RAM onboard. Kan ikke udvides |
| Interface | 1 x standard diskettecontroller til 3½” |
| Ledige Slots | 5 x ISA |
| Netværk | 1 x 10/100 Mbit Ethernet med RJ45-stik |
| OS SUPPORT | Understøtter DOS, Windows 98, WIN 3.11 |
| Overvågning | System/CPU temperatur og spænding |
| Porte | 1 x SPP/EPP/ECP, bi-direktionel med DB25F-stik 3 x RS232 med DB9M-stik. 1 x RS232/422/485 med DB9M-stik |
| Strømforsyning | 400watt AT |
| Tastatur/mus | 2 x mini-DIN6 PS/2 via medfølgende Y-splitter kabel |
| Watchdog | Watchdog timer m/255 niveauer |
Industry PC with 100 ~ 800 MHz CPU and ISA slots.
With VGA and LAN driver for DOS 6.22 Windows CE 5.0, CE 6.0, Windows 98, Windows XP Professional, Windows Embedded Standard (XPE) and Windows 2000
To replace older DOS PCs and where older programs / ISA cards may have I / O issues with newer CPU cards.
Solutions in other enclosures and with several ISA slots can also be delivered. Contact our sales department for more information.
Great experience in relocating older systems to new PCs. Contact sales if you want OS installed.
