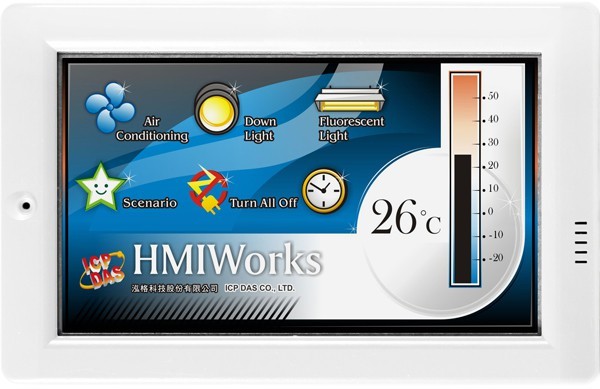

HMI 4.3" Controller Panel with Touch, 1 x RJ45 Ethernet, 1 x RS485 1 x RS232.Modbus TCP / RTU. 12 - 48VDC / PoE
2,797.00 kr
Ekskl. moms
HMI Panel with LCD Display, Ethernet and Com Ports
Can be connected to most of the manufacturer's I / O modules
Power supplied from PoE or 12 - 48VDC / 2.5 Watt
RS-485 (with self-tunes) < Br> RS-232 (RX / TX / GND)
RTC - Real-time tour
GUI design
Free HmiWorks development tools
supports C and Ladder designer
design suggestions from manufacturer
Modbus TCP / RTU protocol
Dim: 140 x 87 x 41 mm
Quantity
Physically in stock
Ask a question
close
Specifications
| CPU | 32 bit RISC 50 MHz |
|---|---|
| Dimensioner | 140 x 87 x 41 mm |
| Forsyning | PoE eller 12 . 48VDC 2.5W |
| Hukommelse | 16MB SDRAM / 16MB Flash |
| Montering | |
| Netværk | Ethernet port 10/100Mbit |
| Skærm | 480 x 272 TFT skærm på 4,3” med 16 bits farve dybde |
| Stik | RJ 45 hunstik |
A stand-alone dedicated Controls PC with built-in TFT screen and touch
software package for design of own graphic layout included. Supports standard C and "Ladder" charts. Has built-in network port with POE and can control Ethernet modules based on the Modbus protocol eg. Ethioxxx-i. Can via the RS485 port control M485-XXX-in modules or RS485 modules based on the Modbus RTU protocol. HMI (Human Machine Interface)
