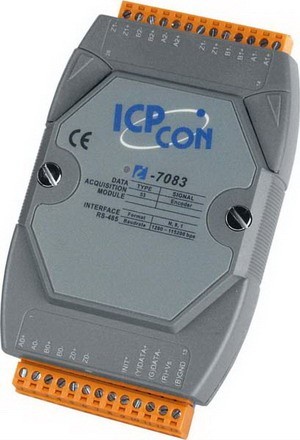

ICP DAS I-7083 Module with 3 axis encoder module, quadrant count CW, CCW. 32 bits count. 1 MHz.

3 Axis Encoder module, quadrant counter CW, CCW. 32 bits counter. 1 MHz. RS485. 10 - 30VDC.

Name: 3 Axis Encoder module, quadrant counter CW, CCW. 32 bits counter. 1 MHz. RS485. 10 - 30VDC.
Brand: Danbit A/S
SKU: M485-COUNT-Q-I
Price: 2054 DKK
Availability: InStock

Product number M485-COUNT-Q-ICategory Industrial monitoring and control / Automation - I/O over network, USB or serial

2,054.00 kr

Ekskl. moms

RS485 module with 3-axpet Encoder input
1MHz Frequency input
input voltage: Up to 5VDC
Other voltages are with external resistance
32 bit counter
Quadrant, Pulse / Dir, CW and CCW
RS485 port - 1200 - 115.2K Baud
Supply voltage: 10 - 30VDC
Dim: 123 x 72 x 35 mm

Quantity

Physically in stock

Get Volume Offer DOWNLOADS

Ask a question

Specifications

Forsyning	10 - 30 VDC, 2 W via klemrække
Features	Quadrant counting mode, CW/CCW counting mode, Pulse/Dir counting mode
Indgang	3 aksel encoder 32 bit
Isolation	Isoleret indgang (2500 VRMS): “0”: 0 – 1 V , “1”: 3,5 – 30 V Ikke-isoleret indgang med programmerbar tærskelværdi
Maks. hastighed	Frekvens maks. 1Mhz

M485-Count Q-I is 3-axis high-speed encoder module. Each axis on the module can be independently configured as one of quadrant, pulse / dir or CW / CCW input mode with a maximum input rate of 1 MHz. The advanced specifications for the M485-Count Qi and complete software support make it ideal for a wide range of applications for positioning of motion systems working in industrial and laboratory environments.

Input Level 5vlogic High: 3.5V ~ 5vlogic Low: 0v ~ 2vinput 12V with external resistance of 1k Ohm. Logic High: 5V ~ 12Vlogic Low: 0V ~ 2V Input 24V with external resistance on 2K Ohm Logic High: 7V ~ 24Vlogic Low: 0V ~ 2V
