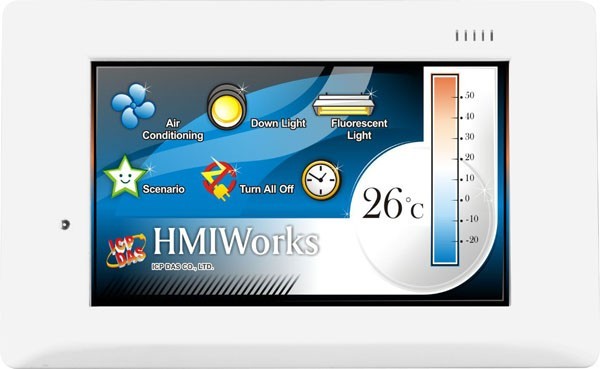

HMI 4.3" Controller Panel with Touch. 2 x RS485 Bus, Modbus RTU, C, Ladder, RTC, GUI. 12 - 48VDC
2,553.00 kr
Ekskl. moms
HMI control with 4.3 "TFT Touch
IP40
interface: 2 x RS485
USB port for download
RTC - Real Time Clock
Free HmiWorks Development software
Supply voltage: 12 - 48VDC
Temperature: -30 - + 50 ° C
Goal: 140 x 87 x 41 mm
Less-Surface-Exposed Housing Design Design
Quantity
Ask a question
close
Specifications
| CPU | 32 bit RISC 80 MHz |
|---|---|
| Dimensioner | 140 x 87 x 41 mm |
| Montering | Panel |
| Porte | 2 x Seriel RS485 (maks. 115,2 Kbits/sek) og USB |
| Skærm | 480 x 272 TFT skærm på 4,3” med 16 bits farve dybde |
| Software | Software til download og udvikling af brugerprogrammer medfølger |
| Stik | Seriel port: Skrueterminal USB: Type A mini hunstik |
Touchpad 4.3 "series, a series of touch HMI and designed for building and home automation. The TPD 4.3" series is equipped with high-colored high-resolution TFT touch screen and fit into a regular wall outlet. In addition, it is seamlessly integrated with rich I / O modules and presents beautiful, flexible and custom image frame. In short, it is the best choice to upgrade the mechanical switch to intelligent checkpoints. For PLC users, HmiWorks delivers Ladder designer, and for IT users, C-language environment supplied. In particular, it only takes no more than 30 minutes to learn how to create an application program with devices in the TouchPad series when using Ladder designer. In addition, users by utilizing Ethernet functionality in TouchPad can easily implement a superfluous control solution. With all the features provided, TouchPad series Touch HMI devices must be the most cost-effective HMI device that has ever been on the market.
