ControlBtWeb modul med 8 Relæ udgange COM, NO, Expansion Modul til X-400 og X-600 Controllere

8 Relay outputs COM, NO, Expansion module for X-400 and X-600 controllers from ControlByWeb. 8 x 2.5A / 30VDC

Name: 8 Relay outputs COM, NO, Expansion module for X-400 and X-600 controllers from ControlByWeb. 8 x 2.5A / 30VDC
Brand: Danbit A/S
SKU: X-12S
Price: 2427 DKK
Availability: BackOrder

Product number X-12SCategory Industrial monitoring and control / Automation - I/O over network, USB or serial

2,427.00 kr

Ekskl. moms

Expansion Modul til X-400-I og X-600M-I
8 x slutterelæ 125VAC / 30VDC 2,5Amp
10 polet interconnection fladkabel til Controller
RS485 kommunikation mellem enhederne
Forsyningsspænding: 9 - 28VDC fra Controller
Mål: 99 x 78 x 36 mm

Quantity

Get Volume Offer DOWNLOADS

Ask a question

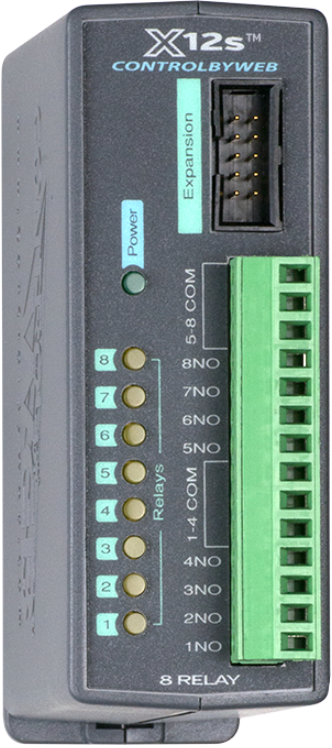

X-12S 8 Relay Expansion Module is used with an X-400 or X-600m controller. The X-12s have 8 end relays, each with Form-A contacts (SPST) with common frame bonded together in two groups. A removable terminal connector gives connections to the relays

one or more X-12's expansion modules can be connected to an X-600M controller with a belt cable. The flat cable provides both power and communication to the expansion modules.

X-400 or X-600m With its expansion modules that the X-12s provide an easy, flexible and reliable way to monitor and control systems and devices over a network . X-12S is suitable for use in moderate loads such as solenoid valves, alarms and indicator lights.

Other expansion modules with different I / O combinations are also available.
