PoE injector which provides 12V, 19V or 24V DC passive PoE for equipment - non-standard
623.00 kr
Ekskl. moms
Passive PoE Injector with 12 / 19 / 24 VDC 0.7A output
From Active to Passive PoE converter
PoE input port: IEEE 802.3af/at RJ-45 STP / PD. Supplied from an active PoE switch
Passive PoE output port: non-802.3af/at RJ-45 STP / PSE. For equipment that is NOT for active PoE.
Quantity
Physically in stock
Ask a question
close
Specifications
| Driftstemperatur | -40 – 75 °C. Luftfugtighed: 5 – 90 % ikke-kondenserende |
|---|---|
| Konvertering | PoE konverter, der konverter PoE-signalet til ”passiv PoE” |
| Standarder | Understøtter PoE standarderne IEEE802.3af og IEEE802.3at på indgangen |
| Tilslutning | PoE konverteren tilsluttes en PoE switch eller injector |
| Udgangsspænding | 12, 19 eller 24 VDC. Maks. 0,7A, via terminal 4/5(+) og 7/8(+) |
| Understøtter | 10/100/1000 Mbit Ethernet (10Base-T, 100Base-TX og 1000Base-T) |

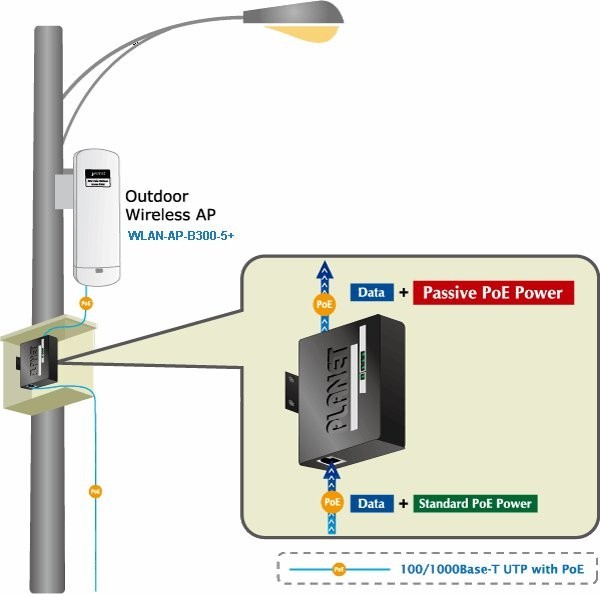

Active PoE to passive PoE converter.
Supply passive PoE equipment via PoE. 12, 19 or 24 volts.
The ETH-POE50PAS is a PoE to "passive PoE" converter. Thus, devices that only support "passive PoE" can be supplied via a regular PoE switch or injector.
The ETH-POE50PAS can deliver up to 0.7A at a voltage of 12, 19 or 24 VDC. It requires that it is connected to a PoE switch or injector that supports the PoE standard IEEE802.3at.
