IP67 sealed Embedded PC Intel i5-7300U or Celeron 3965U, -30°C ~ +60°C, WIFI, Fanless
Call +45 56 66 20 20 for price
Ekskl. moms
i5-7300U 2.2GHz or Celeron 3965U CPU
Max. 16 GB of RAM
2 x USB (M12)
1 x RJ45 Gbit
1 x VGA (M12)
2 x RS232/422/485 (M12)
Watchdogtimer
1 x 2.5" SATA HDD (max. 9.5mm)
1 x mSATA (enabled in BIOS)
1 x Full-size and 1 x Half-size PCI Express Mini Card slot (USB + PCIe signal)
TPM 1.2
4 x N-jack antenna opening with water proof design
Vibration Endurance 3 Grms with SSD (5 to 500Hz, X, Y, Z directions)
-30°C ~ +60°C
210 mm (8.27") x 366.83 mm (14.44") x 83.8 mm (3.27")
9~36VDC Power input (M12)
Support: WIN10IoT & Linux
Quantity
Ask a question
close
Specifications
| CPU | Intel Core i5-7300U onboard |
|---|---|
| Andet | 1 x ATX power switch w/indicator 4 x antenna opening N Jack type w/ water proof design |
| Approval | CE, FCC Class A |
| Chok/Vibration | 3 Grms with SSD (5-500Hz, X, Y, Z directions) |

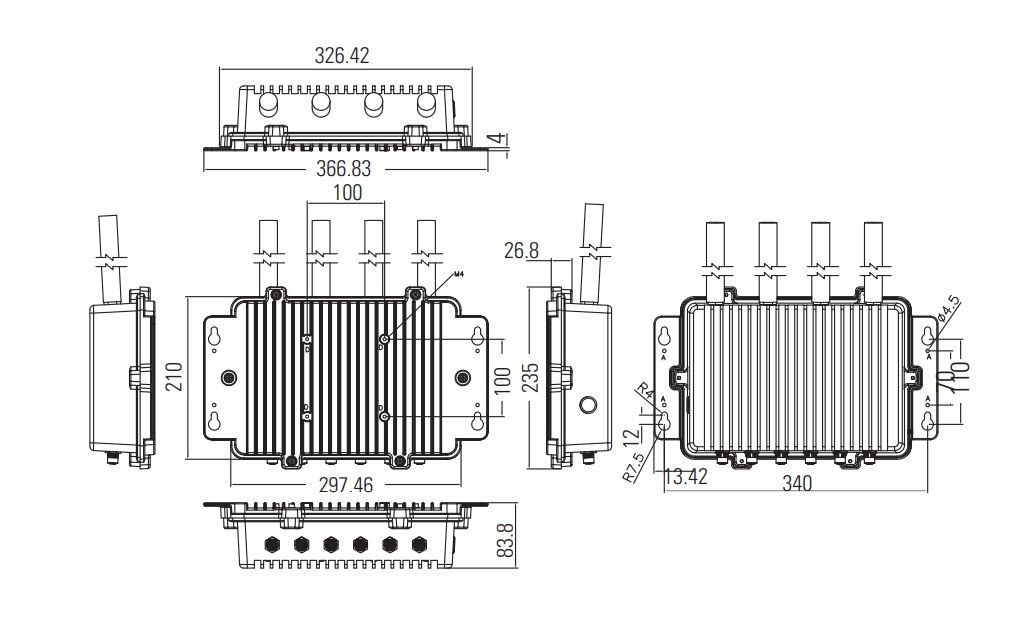

| Dimensioner | 210 x 366.83 x 83mm (8.27” x 14.44” x 3.27") |
| Driftstemperatur | -30°C ~ +60°C (-22°F ~ +140°F) (with i5-7300, W.T. SSD/DRAM) |
| Ethernet | 1 x 10/100/1000 Mbps Ethernet (i219-LM, M12) |
| Grafik | 1 x VGA (M12-type), |
| Hukommelse | 1 x 204-pin DDR4-2133 SO-DIMM up to 16 GB |
| Luftfugtighed | 10% ~ 95% , non-condensing |
| Montering | Wall mount, VESA mount 100x100 |
| OS SUPPORT | WIN 10 IoT, Linux |
| Porte | 2 x RS-232/422/485 (M12-type) |
| Spænding | 9~36VDC |
| Storage | 1 x 2.5” SATA SSD (max. 9.5mm) (Option: 1 x mSATA) |
| Udvidelser | 1 x full-size and 1 Half-size PCI express Mini Card Slot (USB + PCI express signal), |
| USB | 2 x USB 2.0 (M12-type) |
| Weight | 4.31 Kg (9.5 lb)/5.1 kg(11.24 lb) |
IP67 close embedded PC. Especially suitable for outdoor use or in areas where water / liquids can occur.
This is a Build To Order PC.
Check out our sales department for delivery with RAM and SSD. OS can also be installed before delivery.
