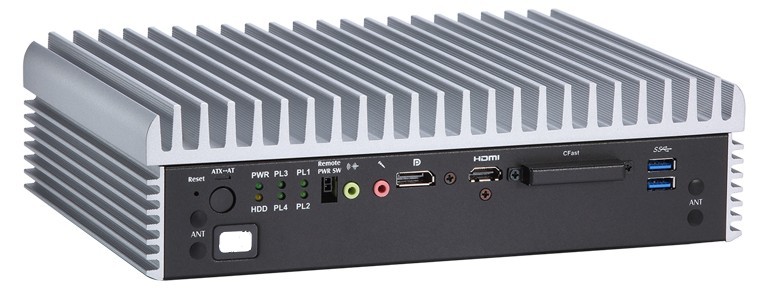

Embedded PC i3/i5/i7, Celeron, 2 x HDMI, 1 x DP, 4xGbit, 6 USB 6th/7th Gen. CPU
Call +45 56 66 20 20 for price
Ekskl. moms
6th/7th Gen. i3/i5/i7 cpu support
Max. 32GB RAM
4x RS232/422/485
6x USB 3.0
2x USB2.0
2x 2.5" SATA HDD (RAID0/1 support)
9-36VDC
Quantity
Ask a question
close
Specifications
| CPU | LGA1151 socket 7th/6th gen Intel® Core™ i7/i5/i3 & Celeron® processor (CPU TDP max. up to 35 W) |
|---|---|
| Andet | 4 x SMA type connector opening for antenna 1 x 9~36VDC power input connector 1 x ATX power switch 1 x Remote power switch 1 x AT/ATX quick switch 1 x Reset button |
| Chok/Vibration | 3 Grms with CFast™ (5 - 500 Hz, X, Y, Z directions) |
| Digital I/O | 32-channel programmable DI/DO |

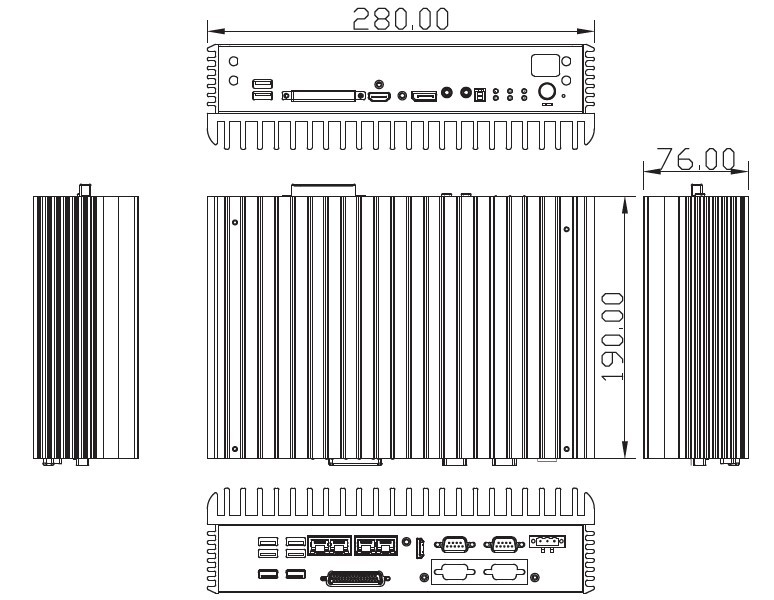

| Dimensioner | 280 x 190 x 70 mm (11.02” x 7.48” x 2.75”) |
| Driftstemperatur | -40°C ~ +60°C (-40°F ~ +140°F) (with W.T. SSD, CPU TDP 35W) |
| Ethernet | 4 x 10/100/1000 Mbps (Intel® i210IT, i219LM) |
| Forsyning | 9~36VDC |
| Hukommelse | 2 x 260-pin SO-DIMM DDR4-2133, up to 32 GB |
| IP-Tæthed | IP40 |
| Lyd | Mic-in/Line-out |
| Materiale | Aluminum extrusion and heavy-duty steel |
| Montering | OPTION: Wall mount DIN-rail VESA mount not included |
| OS SUPPORT | WE8S, WES7, Win10 IoT, Linux |
| Porte | 4 x RS-232/422/485 |
| Storage | 2 x 2.5" SATA HDD with RAID 0&1 1 x CFast™ 1 x mSATA |
| Udgange | 2 x HDMI (1 x HDMI 2.0 & 1 x HDMI 1.4b) 1 x DisplayPort |
| Udvidelser | 2 x Full-size PCI Express Mini Card (USB + PCI Express signal) 1 x SIM slot |
| USB | 6 x USB 3.0 2 x USB 2.0 |
| Weight | 3.8 kg (8.37 lb)/ 4.6 kg (10.14 lb) |
| Watchdog | 255 levels, 1 ~255 sec. |
Build To Order
Vi kan levere med fuld bestykning.
Kontakt salg vedr. pris på komplet konfiguration af PC.
Andre modeller haves.
