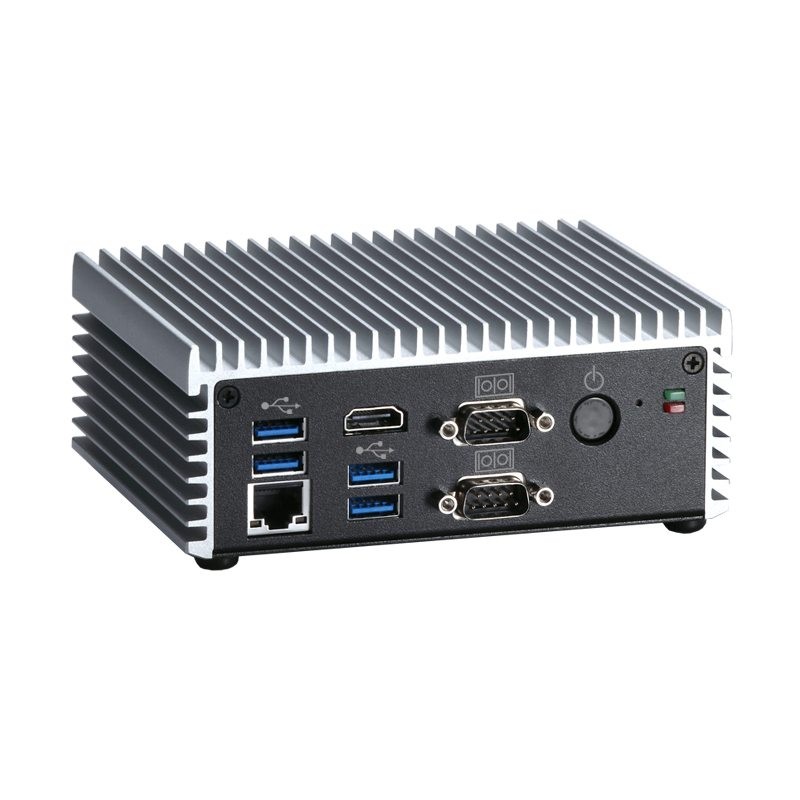

Embedded PC Intel® Core™ i3-5010U ULT SoC, HDMI/DisplayPort, 2 GbE LANs, 4 USB 3.0, 2 COM and PCIe Mini Card
Call +45 56 66 20 20 for price
Ekskl. moms
Intel® Haswell & Core™ i3-5010U Broadwell ULT SoC
204-pin DDR3L-1600 SO-DIMM, up to 8GB
Fanless operation design with compact size
1 RS-232/422/485 and 1 RS-232 port
One 2.5” 9.5mm SATA HDD drive bay and mSATA interface
1 PCI Express Mini Card slot and 4 USB 3.0 ports
DisplayPort and HDMI with dual-view supported
Quantity
Ask a question
close
Specifications
| CPU | CPU Intel® i3-5010U 2.1 GHz Broadwell ULT SoC |
|---|---|
| Chipset | SoC Integrated |
| Farve | Standard Color Silver-Black |
| Andet | 1 x VDC 12V power input connector 1 x ATX power switch 1 x Reset button |
| BIOS | AMI |
| Approval | CE, UL, FCC & VCCI |
| Chok/Vibration | Vibration Endurance 3 Grms with SSD™ (5-500Hz, X, Y, Z directions) |
| Dimensioner | 141.5 mm (5.57") (W) x 106 mm (4.17") (D) x 55 mm (2.17") (H) |
| Driftstemperatur | -20°C ~ +50°C (-4°F ~ +122°F) (with W.T. SSD) Humidity 10% ~ 90% , non-condensing |
| Ethernet | 2 x 10/100/1000 Mbps Ethernet (Intel® i218LM supports wake on LAN,PXE Boot ROM; i210AT) |
| Forsyning | 12Vdc Jack connection |
| Hukommelse | System Memory 1 x 204-pin DDR3L-1600 SO-DIMM, up to 8GB |
| IP-Tæthed | IP40 |
| LED | 1 x orange LED for HDD active |
| Compositions | Construction Aluminum extrusion and heavy-duty steel |
| Msata | 1 x mSATA |
| OS SUPPORT | WE8S, WES7, Linux, WIN 10 |
| Porte | 1 x RS-232/422/485 1 x RS-232 |
| Storage | 1 x 2.5” 9.5mm SATA HDD drive bay |
| Udgange | 1 x DisplayPort 1 x HDMI |
| Weight | (net/gross) 0.8 kg (1.76 lb)/1.5 kg (3.31 lb) |
| Watchdog | 255 levels, 1 ~ 255 sec. |
| WiFi/WLAN | 2 x SMA type connector opening for antenna, Withour PCI express ethernet controller |
En af vores embedded løsninger. kompakt med i3 CPU. Kan leveres med Celeron/i5 processor.
