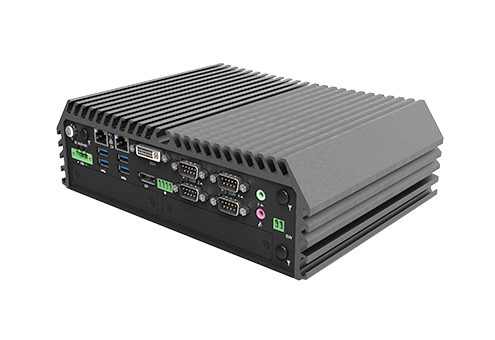

Powerful and compact embedded PC for 12th generation Intel® CPU (MAX 65W TDP)
Call +45 56 66 20 20 for price
Ekskl. moms
Intel® 12th Gen Alder Lake-S Core™ i9/i7/i5/i3 CPU's (max 65 W TDP)
2 x DDR5 SO-DIMM Up to 64GB RAM
HDMI / DP / DVI-I
2x 1GbE LAN
4x RS-232/422/485
2x 2.5" SATA HDD/SSD Bay
1x M.2 Key E Type 2230 Socket for Intel CNVi / Wireless Module
Option: I/O Module Expansion
Option: Power Ignition Sensing & PoE Function
DC input 9 - 48VDC, 3-pin Terminal Block
Wide Operating Temperature -40°C to 70°C
Railway approved
Certification: CB, IEC, EN 50155 (EN 50121-3-2 Only)
Quantity
Ask a question
close
Specifications
| CPU | Intel® 12th Gen Alder Lake-S Core™ i9/i7/i5/i3 Processors (max 65 W TDP) |
|---|---|
| Chok/Vibration | MIL-STD-810G |
| Dimensioner | 242 x 173 x 75 mm |
| Driftstemperatur | • 35W TDP Processor: -40°C to 70°C • 65W TDP Processor: -40°C to 50°C (With External Fan Kit) |
| Forsyning | 9 - 48VDC, 3-pin Terminal Block |
| LAN | 2x 1GbE LAN, RJ45(Supports Wake on LAN, PXE) |
| M.2 | 1x M.2 Key E Type 2230 Socket, Support Intel CNVi Module |
| Montering | Wall / DIN-RAIL / VESA / Side Mount |
| Msata | 2x mSATA Socket ( SATA 3.0, shared by Mini-PCIe socket ) |
| RAID niveau | Support RAID 0/1/5/10 |
| SSD | 2x 2.5" SATA HDD/SSD Bay (SATA 3.0) |
| USB | 4x 10Gbps USB 3.2 Gen2, Type A, 4x 5Gbps USB 3.2 Gen1, Type A |
| Video | Quad Independent Display (HDMI / DP / DVI-I) |
| Weight | 3.05 kg |
| Serial Porte | 4x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9 |
| RAM | 2 x DDR5 SO-DIMM Sockets, Supports ECC/non ECC type Memory, Up to 4800MHZ, 64GB |
