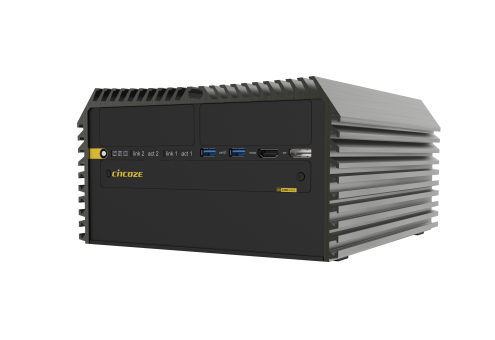

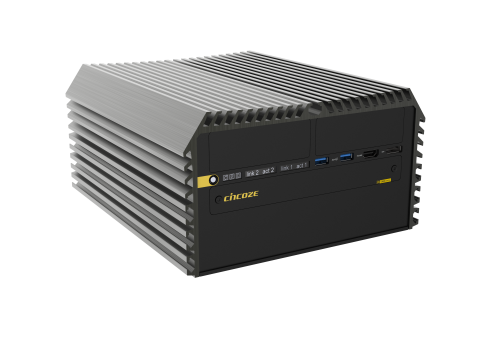

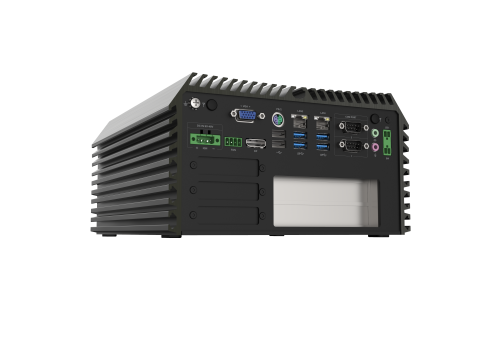

Fanless 10th gen 2xEthernet, 2xPCI/PCIe, 3x MINI Pcie, 2xSIM, 8xUSB, 2xCOM, HDMI, Display port, VGA -40°C to 70°C
Call +45 56 66 20 20 for price
Ekskl. moms
CPU Xeon, i9,i7,i5,i3 Gen.10
2x LAN
6x USB 3.2
2x USB 2.0
2x COM
1x PS/2
1x HDMI 4096x2160 at 30Hz
2x DisplayPort 4096x2304@60Hz (according to CPU specifications)
1 x VGA
3 x full-size Mini-PCIe connectors
2 x SIM slots
4 x CMI interface: different I/O moduls see picture
1 x CFM IGN Interface need to be ordere separately
2 x PCI/PCIe slots
Vibration/Shock MIL-STD-810G
CE, UKCA, FCC, ICES-003 Class A, EN50121-3-2 (Rail), IEC/EN 62368-1
REQUEST about additional information with details
Quantity
Ask a question
close
Specifications
| CPU | Xeon; i9; i7;I5;i3 |
|---|---|
| Approval | CE, UKCA, FCC, ICES-003 Class A, EN50121-3-2 (Railway) |
| Driftstemperatur | -40°C to 70°C |
| Ethernet | 2 |
| M.2 | 1 |
| mPCIe | 3 |
| Msata | 3 |
| Mål og vægt | 5.4Kg |
| PCI | 2 |
| SIM kort | 2 |
| Dimension | 227 x 261 x 128 mm |
| Certification | MIL-STD-810G; EN50121-3-2, ICES-003; IEC/EN62368-1 |
This PC series has a rich selection of native high-speed I/O such as 2× GbE LAN, 6× USB3.2, and more, that connect to the cameras and sensors required by the VGR for high-speed high-resolution data transmission. Special exclusive modules provide further I/O or function expansion options, such as GbE LAN, 10GbE LAN, DIO, COM, USB 3.2, or PoE. The built-in Mini PCIe expansion slot can be used with commercially available Wi-Fi/4G/GPS modules for wireless communication and upload of production information to the central control center in real-time.
VGRs are used in the harsh and complex environment of industrial manufacturing sites. All PCes in this series are designed to withstand shock and vibration, meeting the industry-leading US military equipment inspection standard (MIL-STD-810G), and maintaining the rugged design, with protection mechanisms such as wide temperature (-40–70°C) and wide voltage (9–48 VDC) support, and overvoltage, overcurrent, and ESD protection. Regardless of the working environment temperature, they can operate uninterrupted for a long time, providing the most stable and reliable performance for VGR edge computing.
Intel® Xeon® Series Processor ( 80W / 35W ):
• Intel® Xeon® W-1270E 8 Cores Up to 4.8 GHz, TDP 80W
• Intel® Xeon® W-1250E 6 Cores Up to 4.7 GHz, TDP 80W
• Intel® Xeon® W-1290TE 10 Cores Up to 4.5 GHz, TDP 35W
• Intel® Xeon® W-1270TE 8 Cores Up to 4.4 GHz, TDP 35W
• Intel® Xeon® W-1250TE 6 Cores Up to 3.8 GHz, TDP 35W Intel® Core® Series Processor ( 65W / 35W ):
• Intel® Core™ i9-10900E 10 Cores Up to 4.7 GHz, TDP 65W
• Intel® Core™ i7-10700E 8 Cores Up to 4.5 GHz, TDP 65W
• Intel® Core™ i5-10500E 6 Cores Up to 4.2 GHz, TDP 65W
• Intel® Core™ i3-10100E 4 Cores Up to 3.8 GHz, TDP 65W
• Intel® Core™ i9-10900TE 10 Cores Up to 4.5 GHz, TDP 35W
• Intel® Core™ i7-10700TE 8 Cores Up to 4.5 GHz, TDP 35W
• Intel® Core™ i5-10500TE 6 Cores Up to 3.7 GHz, TDP 35W
• Intel® Core™ i3-10100TE 4 Cores Up to 3.6 GHz, TDP 35W
