KVM Extender, Max 200m, VGA, USB (PS2) with local and remote module, EDID, max 1920x1200. USB is only for keyboard and mouse
2,425.00 kr
Ekskl. moms
Max. 1920 x 1200 pixels
1 x KVM Extender Console Unit - Remote module
1 x KVM Extender Computer Unit - Local module
1 x 12V DC Power supply included for remote module
1 x KVM cable ( VGA)
USB (2 on Console Unit, 2 on PC Unit)
Only VGA and USB Mouse / Keyboard Transfer
Does Not Transmit Touch from Monitor
USB is only for mouse and keyboard
For point RJ45 network cable up to 200 meters
with Edid Emulation
2 controls for the same PC
Video adjustment
Quantity
Physically in stock
Ask a question
close
Specifications
| Netværk | Cat. 5. 5e, 6 UTP cable |
|---|---|
| Opløsning | maks. 1920x1200 |
| Opsætning | Billedopløsning, farve og kontrast indstilles via ”hot-keys”, på tastaturet hvis dette vælges på boksen. Videoopsætningen har 4-16 skalerbare valg (skarphed og lys) |
| Stik | 1 x 180cm KVM kabel |
| Strømforsyning | 1 x 12V DC |
| USB | 4 x USB (2 på hver) |

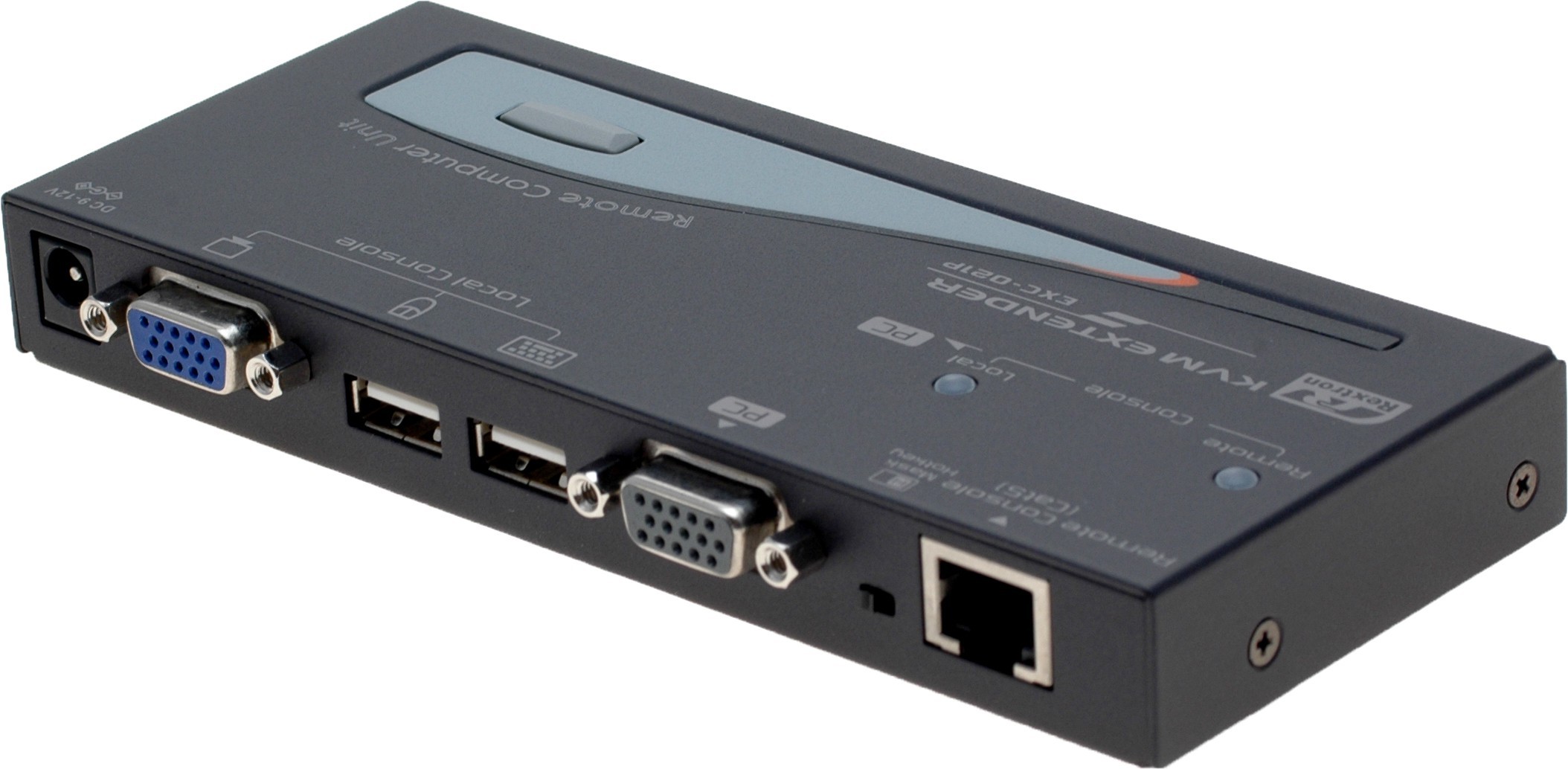

Boost 200 is a KVM extension (Keyboard Video Mouse), which consists of a local and remote module, so a PC or server can be operated locally or up to 200 meters away via a stp (shielded) network cable. Boost 200 transfers the signals for both mouse and keyboard and image in full HD with highest resolution (WUXGA) 1920 x 1200 and (UXGA) 1600 x 1200 points. Is equipped with a good image compensation.
IMPORTANT: Can emulate missing edid with programming of desired image resolution - is a requirement at Win7 and later.
PC or server connected to Boost 200 can either be with USB or PS / 2 Connection. If the PC has PS / 2 outputs, use 1 pcs. k-boost200-p as well as 2 pcs. CNV USB PS2 + one for the local module and one for the remote module. Keyboard and mouse must be with USB, also for PCS with only PS2.
included 1 pc. Multicable from Extender to PC with VGA and USB connector
