UHF RFID 865MHz Reader / Writes, Outdoor, 0-10 m Reading distance 3 m Writing distance, RS232, LAN, to UHF Tags
12,882.00 kr
Ekskl. moms
Outdoor UHF RFID reads and writes
for Passive UHF 865MHz TAGs
TAG protocol: EPC Class 1 Gen 2
ISO 18000-6C
Reading/writing is controlled via software commands
Software App Platform: API (C ++, C #) Development Kit
Up to 10 m Reading distance, depending on UHF Tag
built-in 8DBI antenna, circular polarity
IP67 Plastic cabinet
Operating temp: -40 - + 75 ℃
150 ~ 240VAC / 50Hz adapter with 12VDC / 3A out
Dim: 259 × 259 x 100mm (L × B × H)
Quantity
Ask a question
close
Specifications
| Antenne | Built-in 8dBi circular polarization antenna |
|---|---|
| Dimensioner | 259mm×259mm×100mm(L×W×H) |
| Driftstemperatur | -40℃ ~ +75℃ |
| Forsyning | External poweradapter (150 ~ 240V / 50Hz AC input and DC outputting 12V / 3A); POE optional |
| Frekvens | 865-868 MHz |
| Hastighed | Op til 30 km/t på tværs af læsefelt |
| Interface | RS-232 og 10/100Mbit Ethernet interface |
| IP-Tæthed | IP67 for outdoor use |
| Max læseafstand | Op til 8 m |
| Montering | Rørbeslag, justerbart horisontalt og vertikalt |
| Strømforbrug | 2W(Standby), 10W(Working) |
| Tag-typer | Tag Protocol EPC Class 1 Gen 2(ISO18000-6C) |

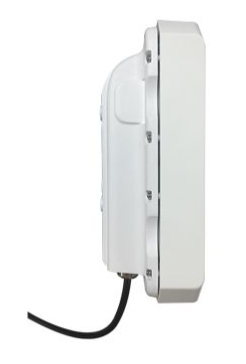

RFID865-8 is an RFID reader for passive tags (without batteries). The range is up to 10 meters and RFID865-8 can therefore be used for purposes such as payments at garages, bridges and tunnels and for access control in companies, on exhibitions, etc. Based on Impinj R2000 RFID chip, with embedded Linux OS. Supports RS-232, 10m / 100m Ethernet interface.
Option: Interface Possible is Wiegand 26/34 or RS485.
Very suitable for hard working environment. Rugged All in One Design.
