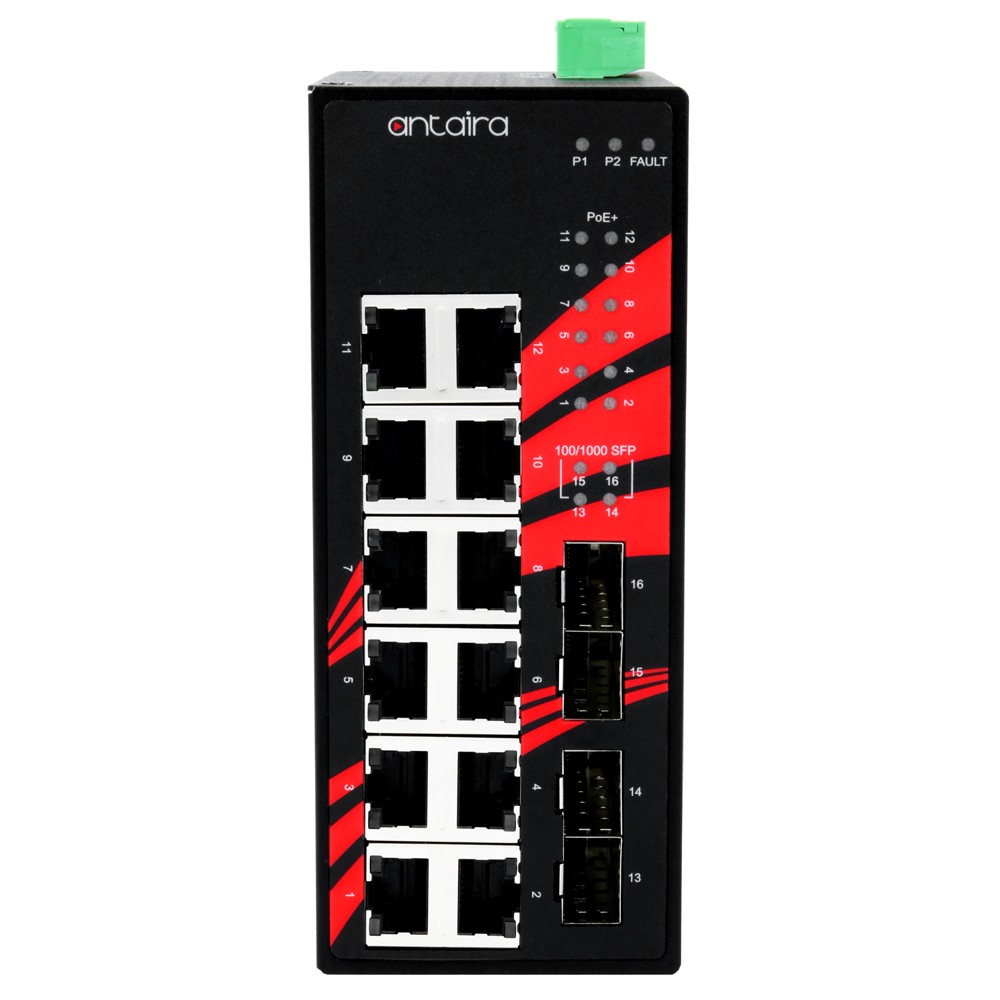

16-Port Gigabit Switch with PoE +, unmanaged 12 x RJ45 ports and 4 x FTP ports, -40 ° to + 75 ° C, 48-55VDC
10,009.00 kr
Ekskl. moms
12 x 10/100 / 1000Tx RJ45
PoE+ (30W / port) IEEE 802.3at
4 x 100/1000 SFP Ports
Store-and-Forward Switching Architecture
8K MAC Address Table
12.2Kbytes Jumbo Frame
Surge Protection: 2,000 VDC
ESD Protection: 6,000 VDC
Supply Voltage: 48 ~ 55VDC
Built-in Relay Output for Power Failure
IP30 Rugged Metal Case Design
DIN- Rail and Wall Mounting
Operating Temperature: -40 ° to 75 ° C
Quantity
Ask a question
close
Specifications
| Buffer | 4 Mbit |
|---|---|
| Certifications | FCC, CE |
| Chok/Vibration | IEC60068-2-32, IEC60068-2-27 |
| Dimensioner | 59 x 99 x 142 mm (W*D*H) |
| Driftstemperatur | -40° to 75°C |
| Ethernet | 12*RJ45 Ports w/10/100/1000Tx (w/PSE: 30W/port), auto negotiation speed, Full/Half duplex, and auto MDI/MDIX connection |
| Fiber | 4*100/1000 SFP Slots |
| Forbindelse | 1 removable 6-contact terminal block |
| Luftfugtighed | 5% to 95%, (non-condensing) |
| Compositions | Metal, IP30 protection |
| Protokol | CSMA/CD |
| Relæ | 24 VDC, 1A resistive |
| Standarder | IEEE 802.3 10BaseTx Ethernet IEEE 802.3u 100BaseTx Fast Ethernet IEEE 802.3ab 1000BaseTx IEEE 802.3z Gigabit Fiber IEEE 802.3af/at Power over Ethernet |
| Strømforbrug | 16W; (376W w/full PSE load) |
| Strømforsyning | 48-55VDC |
