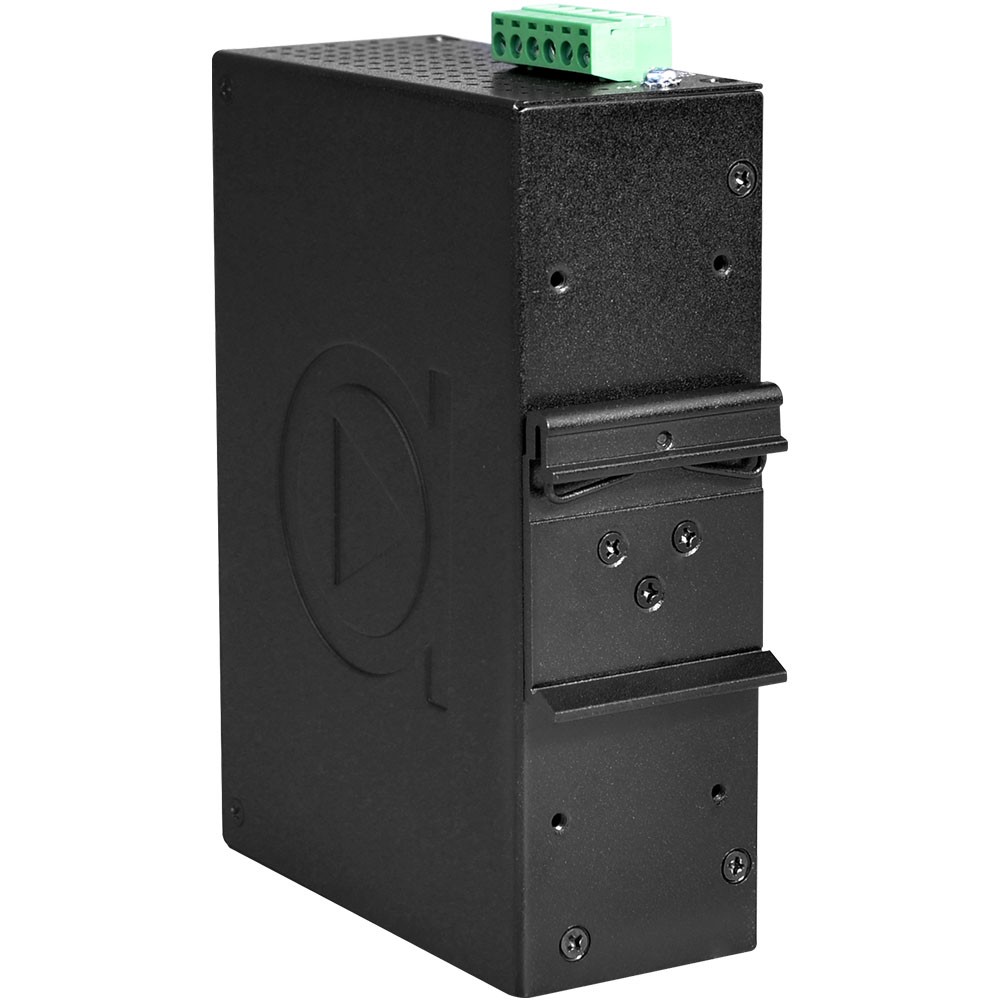

10-port industrial unmanaged switch with 2 SFP ports and 8 RJ45 ports.
6,068.00 kr
Ekskl. moms
8 x 10/100 / 1000Tx RJ45 IEEE 802.3at PoE + 2 x 100/1000 SFP Ports
Auto MDI / MDI-X Function
Store-and-Forward Switching Architecture
20Gbps Back -Plane (Switching Fabric)
8K MAC Address Table
9.6Kbytes Jumbo Frame
Surge Protection: 2,000 VDC
ESD Protection: 6,000 VDC
UL Class I, Division 2 Certified
Power Supply : 48 ~ 55VDC
Built-in relay Output for Power Failure
IP30 Rugged Metal Case Design
DIN-Rail and Wall mounting
Operating temperature STD: -10 ° to 70 ° C
Quantity
Ask a question
close
Specifications
| Certifications | FCC, CE, UL 61010-1, UL 61010-2-201, UL Class 1 Division 2, ISA 12.12.01 |
|---|---|
| Dimensioner | 46 x 99 x 142 mm (W*D*H) |
| Driftstemperatur | STD: -10° to 70°C |
| Ethernet | 8 x RJ45 Ports w/10/100/1000Tx (PSE 30W/Port) |
| Fiber | 2 x 100/1000 SFP Slot |
| Luftfugtighed | 5 to 95%, (non-condensing) |
| Compositions | Metal, IP30 protection |
| Montering | DIN-skinne og væg montering |
| Netværk | 10Base Tx: 2-pair UTP/STP Cat. 3,4,5 100Base Tx: 2-pair UTP/STP Cat. 5 1000Base Tx: 2-pair UTP/STP Cat. 5/5E |
| Protokol | CSMA/CD |
| Standarder | IEEE 802.3 10BaseTx Ethernet IEEE 802.3u 100BaseTx Fast Ethernet IEEE 802.3ab 1000BaseTx IEEE 802.3z Gigabit Fiber IEEE 802.3at PoE+ |
| Strømforbrug | 210 Watts @ 48V 250 Watts @ 51-55V (Full Load w/ PoE) |
| Strømforsyning | 48~55VDC, Redundant Input |
