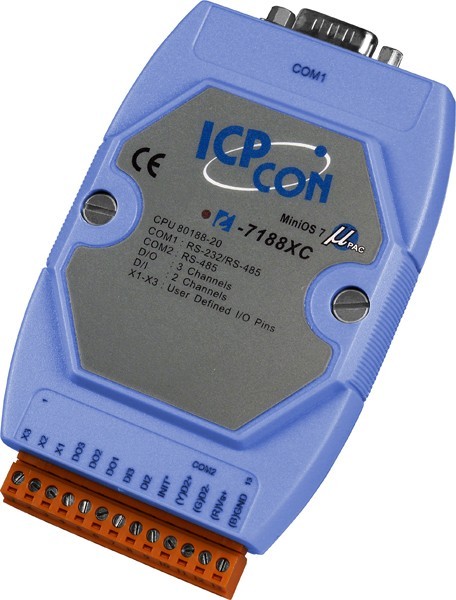

Embedded Controller for hard environments - Expandable with built-in modules
2,277.00 kr
Ekskl. moms
Expandable with built-in modules - comes with MiniOS7
Quantity
Ask a question
close
Specifications
| CPU | 80188, 20 MHz CPU (16 bit mikroprocessor) |
|---|---|
| BIOS | Boot MiniOS7 |
| Flash | 256 kB, heraf 192 kB til bruger |
| Forsyning | 10 - 30 VDC, 2 W |
| Hukommelse | SRAM 128 kB, heraf 107 kB til bruger |
| Indgang | 2 stk. Logisk 0: åben Logisk 1: lagt til stel |
| Porte | COM1: RS232/485, COM2: RS485 |
| Software | Software til download af brugerprogrammer medfølger |
| Stik | COM1 DB9 hun, COM2 Skrueterminal |
| Udgange | 3 stk. “Open collector” 30 V/100 mA |
| Udvidelser | ntern I/O udvidelsesbus til 1 stk. udvidelsesmodul med analoge indgange eller I/O funktioner m.m. Skrueterminalen har 3 stk. ledige klemmer til dette formål. Skal der bruges flere, bliver standard I/O taget til dette formål |
MiniOS7 is a version of DOS, where all features that are not needed when using an embedded PC are removed to make it so full that the program can be on a 64kB ROM circuit. Together with M485A-PCI a software package is provided that includes DLL files, Active X and DDE / OPC server.
Borland Turbo C compiler for application writing to M485x-PC-xxx in the DOS environment, can be downloaded here:
