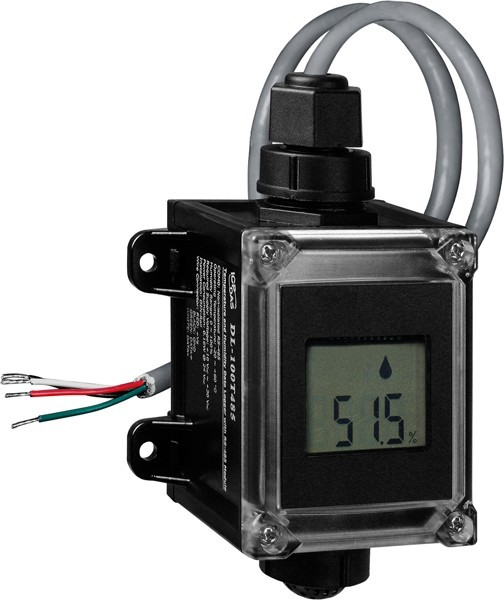

Temperature and moisture meter for L-CON-LOG series. RS485 bus. -20 - + 60 ° C, 0 to 100% RH, IP66, 10 - 30VDC

Name: Temperature and moisture meter for L-CON-LOG series. RS485 bus. -20 - + 60 ° C, 0 to 100% RH, IP66, 10 - 30VDC
Brand: Danbit A/S
SKU: L-CON-LOG-TH
Price: 1194 DKK
Availability: InStock

Product number L-CON-LOG-THCategory Moduler / Tilbehør

1,194.00 kr

Ekskl. moms

Measures: -20 ~ + 60 ° C and 0 ~ 100% RH
Accuracy: ± 0.4 ° C; ± 3.0% RH
LCD display shows the temperature, humidity, dewpoint and
module ID
10 ~ 30 VDC power input
IP66 Waterproof
Data Logger
Memory for temperature and 4,088 humidity records
RS-485 communication interface
DCON or Modbus RTU

Quantity

Physically in stock

Get Volume Offer DOWNLOADS

Ask a question

Specifications

Forsyning	10 - 30 VDC, 0,15 W
IP-Tæthed	66
Montering	Panel eller DIN skinne
Måleområde	-20 – 60°C og fugtighed 5 – 95 %
Nøjagtighed	± 1°C ved temperatur og ±3 % ved fugt
Porte	RS485
Skærm	Display der viser aktuelle temperatur og fugt

Data Logger module for temperature and humidity. It contains an RS-485 communication interface and an LCD display to display a series of temperature, humidity, dew point and module-ID data. Data storage memory can store up to 4088 temperature and humidity records.

Utility is included to allow the installation, configuration, retrieval and display of data in a strongly diagrammatic formats that can be exported to Excel.
